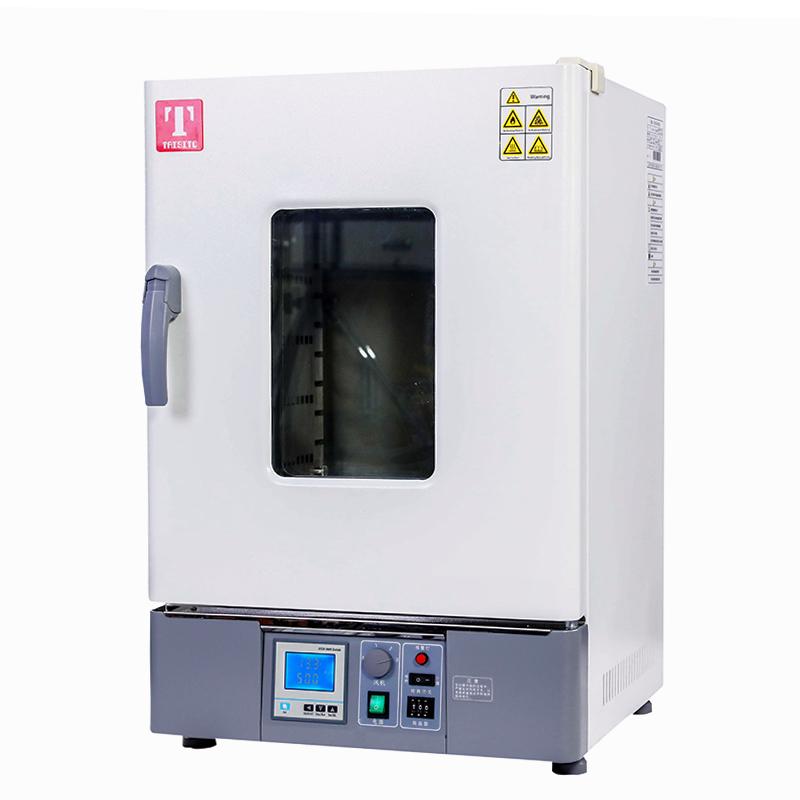

TAISITE GP-230BE drying/fostering dual-use box 230L
TAISITE GP-230BE drying/foster dual-use box is a functional type, using liquid crystal dual-row PID temperature control, foster temperature up to 80 ℃, drying temperature up to 250 ℃, GP-230BE using nickel-chromium alloy heating wire heating device, Power is 0.7KW/3.0KW, with timing function.
TaiSiTe
GP-230BE
-
Benting CBGL-140B electric Forced Air Drying Oven, temperature control RT + 10-300 ℃
$ 879.00 -
YIHENG BPG-9206B Programmed precision Forced Air Drying Oven 220L/2000W
$ 1331.00 -
SANFA DHG-9070A Electrothermal thermostatic Drying Oven 70L/stainless steel
$ 433.00 -
HUITAI DZF-6020 Vacuum Oven heating belt Vacuum Pump-2XZ-2
$ 705.00 -
HUITAI DZF-6050 Vacuum Oven volume 50L with intelligent program controller
$ 846.00
Benefits:
Drying, baking, wax melting, heat treatment and bacterial culture are all in one box
High precision, high efficiency, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
LCD multi-data full-screen operation display, power failure memory, power failure compensation
Overlift preventer
Design advantages
Figure 1: Heating curve: time unit: minutes, temperature unit: °C
Figure 2,Multi-functionalAble to control the panel
Figure 1 Figure 2
Parameter comparison
| Model | heater | Content volume | Number of partition layers |
| GP-30B/BE | Stainless steel heating tubes | 30L | 6 floors |
| GP-45B/BE | Stainless steel heating tubes | 45L | 7 floors |
| GP-65B/BE | Stainless steel heating tubes | 65L | 9 floors |
| GP-125B/BE | Stainless steel heating tubes | 125L | 13 floors |
| GP-230B/BE | Nichrome heating wire | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | Incubation RT+5~80°C and drying 80~250°C | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | Incubation ± 0.5 °C dry ± 1 °C | ||
| Temperature distribution accuracy | Incubation± 1.0 °C dry ± 2.5% | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Exhaust outlets | Inner diameter 28mm*1, top | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurations can be added | (GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
TaiSiTe GP-230BE Drying/fostering dual-use boxSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | Foster: RT + 5~ 80 ℃; drying: 80~250 ℃ |
| Temperature Fluctuation | A.±0.5℃；B.±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | Foster +/- 1.0 ℃; drying +/- 2.5% |
| Volume | 230L |
| Interior size | 600*500*750mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 17pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power supply Voltage | AC220V/13.6A 50/60Hz |
| Input Power | Foster: 0.7Kw; drying: 3.0Kw |
| Dimensions | 735*625*1220mm |
| Net Weight | 84kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal Insulation | aluminum silicate fiber |
| Heating mode | Nickel chromium alloy heating wire |
| Exhaust Port | Should 28mm * 2, top |
| Thermostat | LCD dual row PID |
| Temperature setting method | Tap the four-button setting |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Operational Features | Fixed value operation, regular operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, constant speed fan, overlift preventer |
| Temperature sensor | pt100 |
| Packing size | 898*814*1347mm |
| Shelf spacing | 35mm |
| Gross Weight | 100Kg |
| Safety Devices | Over-rise alarm, over-rise preventer |
| Convection mode | Double duct forced convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe GP-230BE Drying/fostering dual-use box Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
