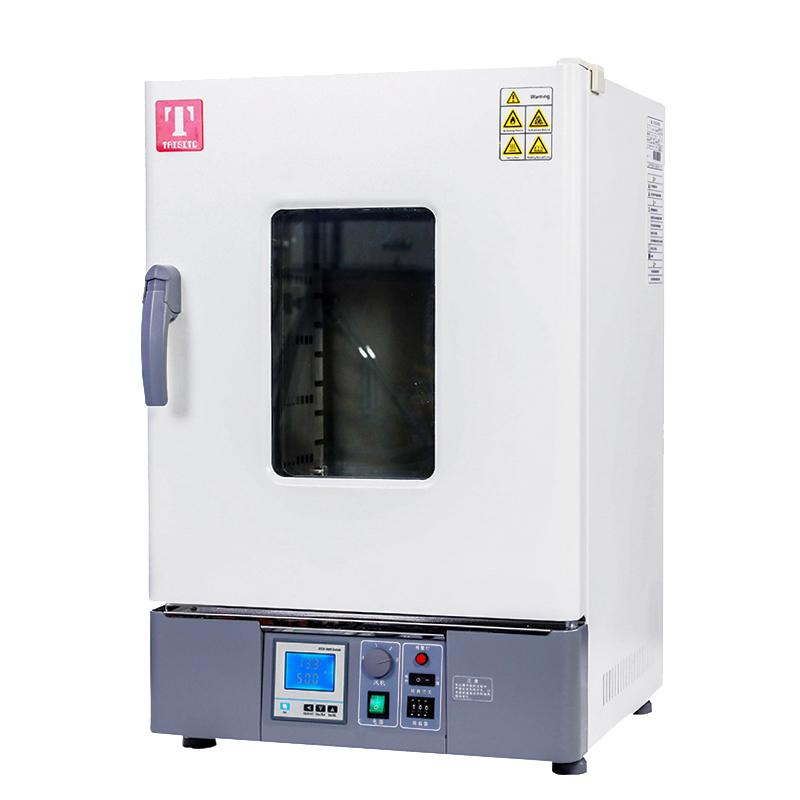

TaiSiTe GP-30BE Drying/fostering dual-use box

TAISITE GP-30BE drying/foster dual-use box 30L

TAISITE GP-30BE drying/foster dual-use box adopts double air duct forced convection method, is functional type, adopts liquid crystal dual row PID temperature control, fluctuation foster +/- 0.5 ℃, drying +/- 1 ℃, GP-30BE set drying, baking, wax, heat treatment and bacterial foster in one.

Brand

SKU: NB029074

TaiSiTe

Model

GP-30BE

Get Quote

TaiSiTe

Information

Datasheet Catalog Manual

What else did others buy

BOZHEN DHG-9035A vertical Forced Air Drying Oven

$ 403.00
YIHENG GRX-9073A Laboratory Hot Air Sterilizer, LCD Power 1550W

$ 689.00
SANFA DZF-6021 Vacuum Oven

$ 411.00
Kenton KH-75AS digital electric air blowing dryer 250 ℃/225L with independent temperature limiter

$ 744.00
CHINA DHG-9240A vertical Forced Air Drying Oven Laboratory Oven 200 ℃/225L

$ 576.00

Genuinegoods

TaiSiTe GP-30BE Drying/fostering dual-use boxOverview
Specifications
Comments
FAQs

GP-30BE

Drying/fostering dual-use box

Benefits:

Drying, baking, wax melting, heat treatment and bacterial culture are all in one box
High precision, high efficiency, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
LCD multi-data full-screen operation display, power failure memory, power failure compensation
Overlift preventer

Detail design advantages

Figure 1: Heating curve: time unit: minutes, temperature unit: °C

Figure 2,Multi-functionalAble to control the panel

Detail Figure 1 of the Tester GP-30BE Drying/Incubation Chamber Details of the Tester GP-30BE Drying/Incubation ChamberFigure 2

Figure 1 Figure 2

Parameter comparison

Model	heater	Content volume	Number of partition layers
GP-30B/BE	Stainless steel heating tubes	30L	6 floors
GP-45B/BE	Stainless steel heating tubes	45L	7 floors
GP-65B/BE	Stainless steel heating tubes	65L	9 floors
GP-125B/BE	Stainless steel heating tubes	125L	13 floors
GP-230B/BE	Nichrome heating wire	230L	17 floors
Other parameters
manner	Dual air ducts force convection
Operating temperature range	Incubation RT+5~80°C and drying 80~250°C
Temperature resolution	0.1℃
Temperature fluctuations	Incubation ± 0.5 °C dry ± 1 °C
Temperature distribution accuracy	Incubation± 1.0 °C dry ± 2.5%
Built-in	Stainless steel plate
Exterior	Cold-rolled steel plate, surface resistance * quality coating
Insulating materials	Aluminum silicate fiber
Exhaust outlets	Inner diameter 28mm*1, top
Temperature control method	Type B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting method	Tap the four buttons to set it
Temperature representation	Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
	BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer	0~9999 minutes (with timed waiting function)
Run the function	Fixed-value operation, timed operation, automatic stop
Program mode	Matching
Additional features	Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer)
sensor	pt100
Safety devices	Overlift Alarm (BE Type Overlift Arrester)
clapboard	2 pcs
Partition shelves	4 pcs
Configurations can be added	(GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage

TaiSiTe GP-30BE Drying/fostering dual-use boxSpecifications

LIST	VALUE
Temperature range	Foster: RT + 5~ 80 ℃; drying: 80~250 ℃
Temperature Fluctuation	A.±0.5℃；B.±1℃
Temperature Resolution	0.1℃
Temperature Uniformity	Foster +/- 1.0 ℃; drying +/- 2.5%
Volume	30L
Interior size	310310310mm
Chamber material	stainless steel plate
Shelf (std.)	2pcs
Shelves (max)	6pcs
Load per shelf	15kg
Timer	0~9999Min (with Timer waiting)
Power	AC220V/3.6A 50/60Hz
Input Power	Foster: 0.3Kw; drying: 0.8Kw
Dimensions	445440690mm
Net Weight	32kg
Enclosure Material	Cold rolled steel plate, surface resistance painting
Thermal insulation material	aluminum silicate fiber
Heating mode	Stainless steel heating tube
Exhaust port	Inner diameter 28mm * 1, top
thermostat	Liquid crystal dual row PID
Temperature setting	Tap the four-button settings
Temperature representation	Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
Run function	Fixed value operation, Timer operation, automatic stop
Program Mode	optional
Additional features	Deviation correction, menu button lock, power outage compensation, power outage memory, speed regulating fan, overlift preventer
Temperature sensor	pt100
Packing size	560560830mm
Shelf spacing	35mm
Gross Weight	37Kg
Safety Devices	Overlift alarm, overlift preventer
Convection mode	Double duct forced convection
Shelf (std.)	2pcs
Shelf (std.)	4pcs

TaiSiTe GP-30BE Drying/fostering dual-use box Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

This box can control the temperature of 185 ° C and the sample capacity is about 30L?

[A]

This model is suitable, GP-30BE drying/fostering dual-use box Temperature range 80~ 250 ℃, can hold 30L.

[Q]

Can all drying foster dual-use boxes be used for testing in the GB/T 5211.3 standard?

[A]

Not necessarily, but this GP-30BE drying foster dual-use box can be considered.
