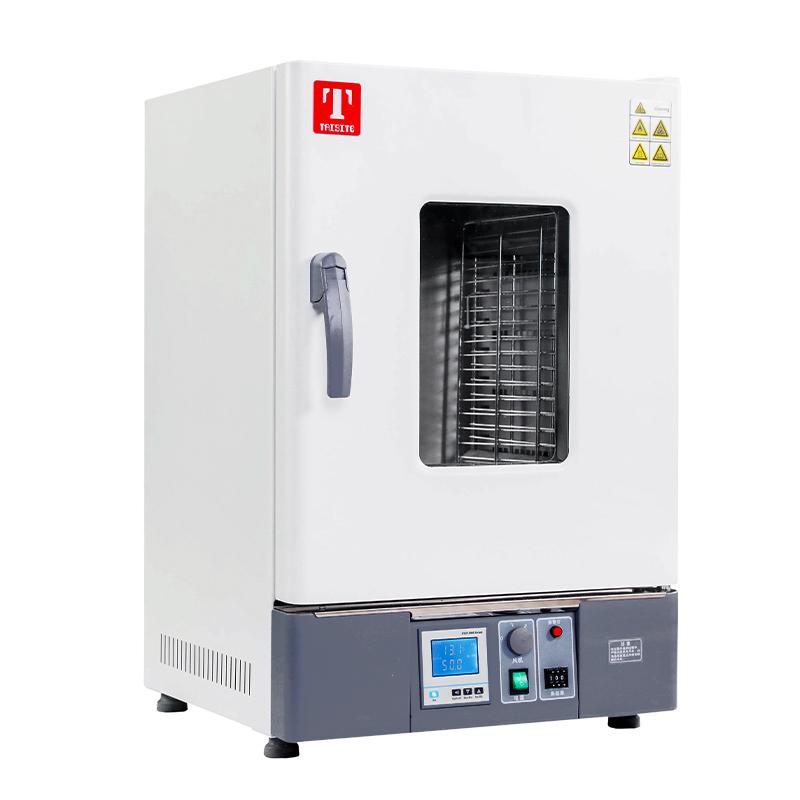

TAISITE GX230BE dry baking sterilizing box, LCD screen 300 ℃/230L
TAISITE GX230BE dry baking sterilizing box adopts liquid crystal dual row PID temperature control, Temperature range RT + 10~300 ℃, Temperature Fluctuation +/- 1 ℃, is a laboratory hot air sterilization box, GX230BE volume 230L, equipped with 17 layers shelf, with over-rise alarm, over-rise prevention device.
TaiSiTe
GX230BE
-
RONGHUA DHG-9070A Electrothermal thermostatic blast Drying Oven Stainless steel liner 70L volume
$ 425.00 -
HUITAI DZF-6210 Vacuum Oven 210L with Vacuum Pump-2XZ-2
$ 3834.00 -
Kenton 101-3AS digital Electric Forced Air Drying Oven stainless steel liner 300 ℃/225L
$ 649.00 -
YIHENG PH-070A drying/fostering dual-use box, input power 1550W
$ 683.00 -
BOZHEN DHG-9245A Desktop Forced Air Drying Oven
$ 764.00
Benefits:
Rapid, safe and reliable sterilization.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Functional: LCD multi-data full-screen operation display, power failure memory, power failure compensation.
It has an overlift preventer.
Design advantages
Figure 1LCD multi-data control panel:Multi-data full-screen operation, power failure memory, power failure compensation (BE model).
Figure 2, multi-functional safety lock: safe and secure.
Figure 3,Furnace temperatureDegree Rise Chart:The temperature rise curve is professional because it is accurate.
Figure 4,partitionThermal Safety Door:It is not hot to stand around the instrument at work.
Fig.1 Fig.2 Fig.3 Fig.4
Parameter comparison
| Model | Rated power | Content volume | Number of partition layers |
| GX30B/GX30BE | 0.8KW | 30L | 6 floors |
| GX45B/GX45BE | 1.2KW | 45L | 7 floors |
| GX65B/GX65BE | 1.6KW | 65L | 9 floors |
| GX125B/GX125BE | 2.3KW | 125L | 13 floors |
| GX230B/GX230BE | 3KW | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1℃ | ||
| Temperature distribution accuracy | ±2.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurable (GXBE type) | Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
| power supply | AC 220V 50/60Hz | ||
TaiSiTe GX230BE Hot air sterilization boxSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5％ |
| Volume | 230L |
| Interior size | 600*500*750mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 17pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power supply Voltage | AC220V/13.6A 50/60Hz |
| Input Power | 3Kw |
| Dimensions | 735*625*1220mm |
| Net Weight | 84kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal Insulation | aluminum silicate fiber |
| Heating mode | Nickel chromium alloy heating wire |
| Exhaust Port | Should 28mm * 2, top |
| Thermostat | LCD dual row PID |
| Temperature setting method | Tap the four-button setting |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Operational Features | Fixed value operation, regular operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, constant speed fan, overlift preventer |
| Temperature sensor | pt100 |
| Packing size | 898*814*1347mm |
| Shelf spacing | 35mm |
| Gross Weight | 100Kg |
| Safety Devices | Over-rise alarm, over-rise preventer |
| Convection mode | Double duct forced convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe GX230BE Hot air sterilization box Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
