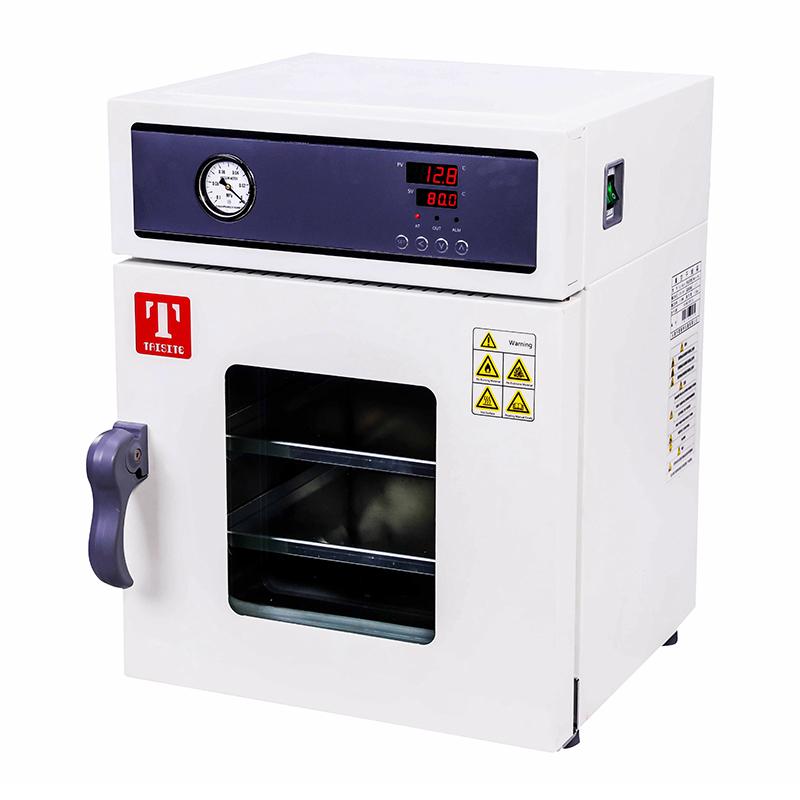

TAISITE DZ-2AIV Experimental Vacuum Oven 250 ℃/52L

TAISITE DZ-2AIV experimental Vacuum Oven is a vertical Vacuum Oven with a volume of 52L and an Interior size of 415 * 370 * 340mm. DZ-2AIV Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 1 ℃, with timing function, designed Adjustable door lock, self-adapted observation window frame.

Brand

SKU: NB029109

TaiSiTe

Model

DZ-2IV

Get Quote

TaiSiTe

Information

Datasheet Catalog Manual

What else did others buy

HUITAI DHG-9260A Blast drying oven Electric heating oven 260L

$ 752.00
BOZHEN DHG-9245A Desktop Forced Air Drying Oven

$ 764.00
SANFA DZF-6090 Vacuum Oven

$ 1610.00
HUITAI BPG-9140A Precision blast drying oven temperature accuracy +/- 0.5 ℃ Volume 136L

$ 797.00
Kenton 101-1A digital display electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/70L

$ 293.00

Genuinegoods

TaiSiTe DZ-2IV Vacuum OvenOverview
Specifications
Comments
FAQs

DZ-2IV

Vacuum Oven

Introduction

It is specially designed for drying heat-sensitive, easily decomposing, and oxidizing substances, and can be filled with inert gas.

Benefits:

PID thermostat, accurate temperature control.
Adjustable door lock, self-adaptive observation window frame, one-time molding silicone sealing strip to ensure long-term stable sealing.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.

Detail design advantages

Figure 1Temperature rise graph: time unit: minutes, temperature unit: °C.

Fig. 2, thickened partition and heat-insulating glass: independent thickened detachable partition, thickened heat-insulating glass design, comfortable experiment.

Figure 3,Multi-function control panel.

Tester DZ-2AIV Vacuum Drying Oven Details Figure 1

Fig.1 Fig.2 Fig.3

Parameter comparison

Model	Heating time	Built-in	Rated power	Content volume
DZ-1AIV	80min	carbon steel	0.8KW	24L
DZ-1BCIV	80min	stainless steel	0.8KW	24L
DZ-2AIV	100min	carbon steel	1.4KW	52L
DZ-2BCIV	100min	stainless steel	1.4KW	52L
DZ-3AIV	120min	carbon steel	2.0KW	91L
DZ-3BCIV	120min	stainless steel	2.0KW	91L
Other parameters
manner	Decompression, four-wall heating
Operating temperature range	RT+10～250℃
Use the vacuum range	﹤133PA
Temperature resolution	0.1℃
Temperature fluctuations	±1 ℃
Exterior	Cold-rolled steel plate, surface resistance * quality coating
Insulating materials	Aluminum silicate fiber
heater	Stainless steel heating pipes are heated on all sides
Observation window	Bulletproof tempered glass
Vacuum gauge	Pointer
Temperature control method	Digital tube double row PID
Temperature setting method	Tap the four buttons to set it
Temperature representation	Measured temperature display: 4-digit digital upper display, set temperature display: 3-4-digit digital lower display
timer	0~9999min (with timing waiting function)
Run the function	Fixed-value operation, timed operation, automatic stop
Program mode	Matching
Additional features	Deviation correction, menu key locking, power failure compensation, power failure memory
sensor	pt100
Safety devices	Overlift alarm
Number of partition layers	2 floors
Inhalation port	Φ12mm
Exhaust outlets	Φ12mm
Configurations can be added	Partitions, Vacuum Pumps, Recorders

TaiSiTe DZ-2IV Vacuum OvenSpecifications

LIST	VALUE
Temperature range	RT+10~250°C
Temperature Fluctuation	±1℃
Temperature Resolution	0.1℃
Temperature Uniformity	±2.5％
Volume	52L
Interior size	415370340mm
Chamber material	Carbon steel
Shelf (std.)	2pcs
Shelves (max)	2pcs
Load per shelf	15kg
Timer	0~9999Min (with Timer waiting)
Power	AC220V/6.3A 50/60Hz
Input Power	1.4Kw
Dimensions	560540680mm
Net Weight	67kg
Enclosure Material	Cold rolled steel plate, surface resistance painting
Thermal insulation material	aluminum silicate fiber
Heating mode	Stainless steel heating tube 4-sided heating
Exhaust port	F12mm
thermostat	Digital tube dual row PID
Temperature setting	Tap the four-button settings
Temperature representation	Measuring temperature display: 4-digit digital upper display; setting temperature display: 3-4-digit digital lower display
Run function	Fixed value operation, Timer operation, automatic stop
Program Mode	optional
Additional features	Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor	pt100
Packing size	734675800mm
Shelf spacing	140mm
Gross Weight	92Kg
Safety Devices	Overrise alarm
Heating mode	Decompression, four-wall heating
Shelf (std.)	2pcs
Shelf (std.)	4pcs
vacuum	<133Pa
Heating rate	100min
Viewing Window	Bulletproof Tempered Glass
Vacuum Meter	Pointer
suction port	F12mm

TaiSiTe DZ-2IV Vacuum Oven Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
