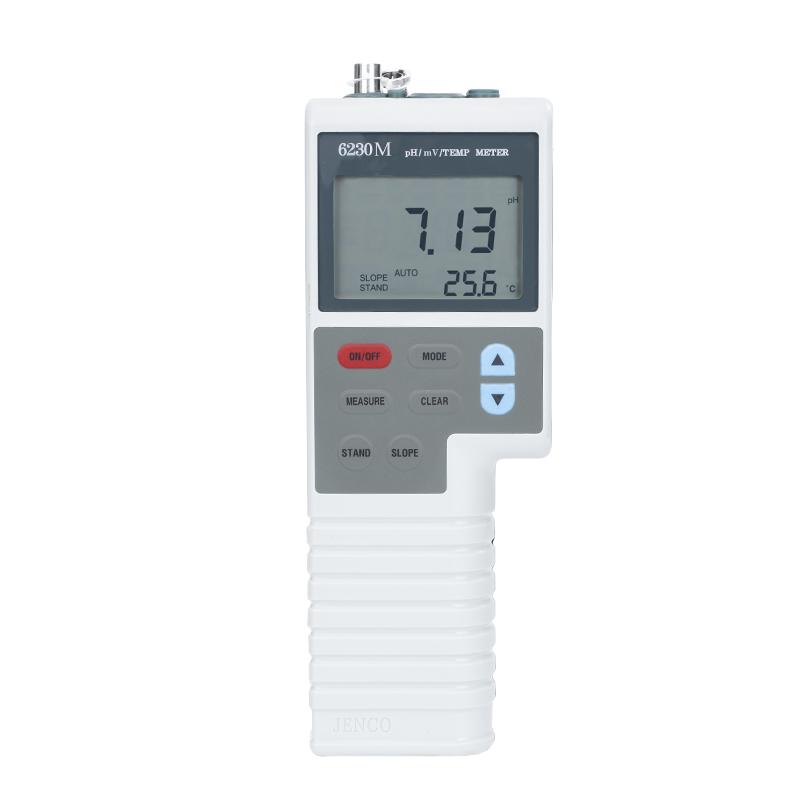

JENCO 6230M portable pH/ORP/temperature Tester
Three-in-one pH electrode (6005P), -2~ 16/0.01 pH, -1999~ 1999/1mV, 40 sets of data storage RS-232C interface
JENCO
6230M
-
HANNA HI11312 Laboratory Bluetooth Spherical Fillable Glass acidity electrode
$ 511.00 -
FANGZHOU FZ-813 PH electrode with temperature probe, ultrapure water and deionized water measurement
$ 534.00 -
FANGZHOU FZ-861 PH Glass electrode electrolysis solution, Eletroplating solution, chemical reagent PH test
$ 254.00 -
BANTE P22 pH electrode for measurement of high temperature samples
$ 357.00 -
BANTE P15 pH electrode for measurement of low Conductivity Detector liquids
$ 318.00
This product is a portable or desktop pH/mV Detector with 1 to 3-point pH correction function, 40 sets of data can be accessed, IP65 waterproof housing, and RS-232 output.
One to three point pH correction
40 sets of data memory access
Power off correction memory
Electrode zero point identification
Electrode slope identification
Built-in buffer set
Automatic/manual temperature compensation function
RS-232 output
This product has passed CE certification
IP65 waterproof housing
Power Supply source as battery or power adapter
High noise immunity (50/60hz)
Optional
| model | Introduction |
| 600S-ORP/600L-ORP | Plastic shell/glass ORP composite electrode (oxidation reduction potential measurement) |
| GB700E | Refillable glass pH combination electrode (routine measurement) |
| GB710E | Composite electrode (glass), sticky or greasy objects, strong acids and alkalis |
| 600P | Plastic case pH composite electrode (routine measurement) |
| 600C | Pure water glass pH composite electrode (pure water, ultrapure water measurement) |
| 6230AST | Stainless steel temperature probe |
JENCO 6230M Portable PH/oxidation/temperature TesterSpecifications
| LIST | VALUE |
|---|---|
| PH range | -2.00~16.00pH |
| PH measurement Accuracy | ±0.01pH |
| Resolution | 0.01pH |
| Impedance | >10^12Ω |
| Power | AC power converter (output: DC9V) or 6 1.5V 7 #batteries |
| Dimensions | 241*86 72mm |
| Weight | Approximately 430g (without battery) |
| pH temperature compensation range | Automatic/Manual -10.0~120.0 ℃ |
| PH standard solution | NIST (4.00, 6.86, 9.18), customer selection, automatic two-point, three-point correction |
| End point sensing and locking | Yes. |
| Temperature compensation probe | Thermistor 10KΩ (25 ℃) |
| calibration data store | Yes. |
| Data storage | 40 groups |
| Sound feedback | All keys |
| Communication interface | RS-232C |
| Ambient Temperature | 0~50℃ |
| mV range | -1999~1999mV |
| mV resolution | 1mV |
| mV measurement Accuracy | ±0.05% F.S |
| Temperature Measurement Range | -10.0~120.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Resolution | ±0.3℃ |
| Shop Accessories | Plastic/Glass ORP composite electrode (Oxidation-reduction potential measurement), composite electrode (Glass), viscous or greasy objects, strong acid measurement), Fillable Glass pH composite electrode (conventional measurement) |
| Shop Accessories | Stainless steel temperature probe, Glass pH composite electrode (70~100.0 ℃ medium, organic solvent, protein medium measurement), plastic shell pH composite electrode (conventional measurement), pure water Glass pH composite electrode (pure water, ultrapure water measurement) |
| Allowable Relative Humidity | <85% |
JENCO 6230M Portable PH/oxidation/temperature Tester Packing list
Host X1, 6005P electrode X1, AC voltage regulator X1, battery X1, correction liquid X2, software X1, suitcase X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
