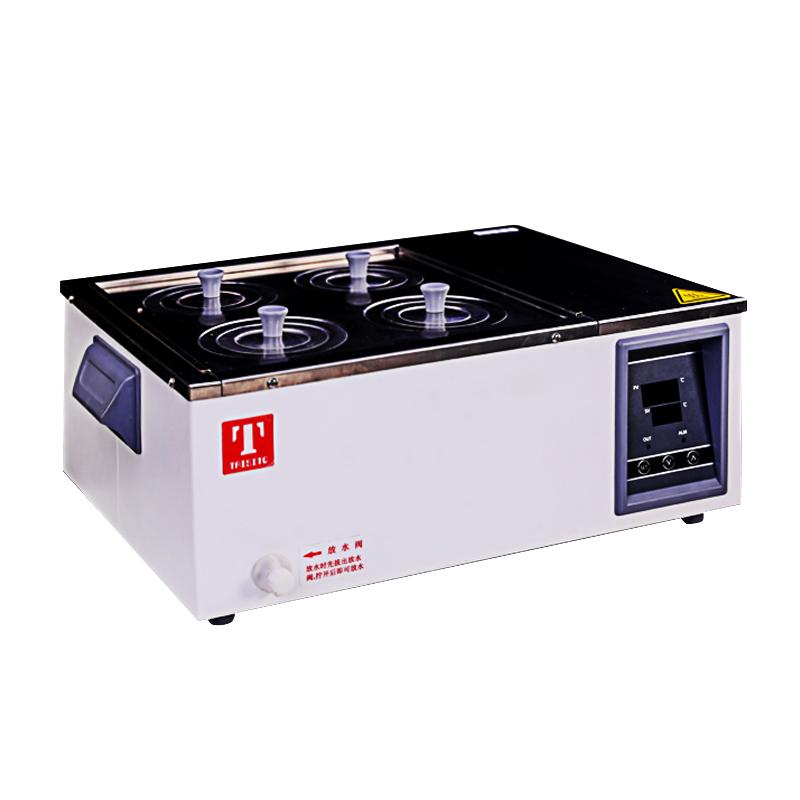

TAISITE SYG-2-8 Electric Thermostatic Water Bath double row eight holes
Double row eight holes, natural water convection heat transfer, temperature control RT + 5~ 100 ℃, Power 2.0Kw, volume 24.8L, stainless steel heating tube, digital display.
TaiSiTe
SYG-2-8
-
HUXI high temperature Dry Bath optional module HX09 17.5mm aperture * 12 holes
$ 142.00 -
RONGHUA instrument HH-4S (single) digital display thermostatic Oil Bath 4 holes
$ 220.00 -
BOZHEN HH-1 Electric Thermostatic Water Bath volume 2.5L
$ 178.00 -
Changzhou GUOHUA HH-4A digital display single control single row Water bath four holes/digital display
$ 358.00 -
MODERNER SC-8D Three-hole electric thermostatic sink RT + 5~ 100 ℃
Login
Application: precision constant temperature, auxiliary heating
Features
1. Stainless steel liner.
2. PID control, precise temperature control
3. Convenient operation, fixed value operation, timing operation, automatic stop.
4. Special function keys for temperature setting.
5. Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
6. Patent No.: ZL03348684.0
Safety: overheating alarm, menu lock
Models
| classification specification | single hole | single row double hole | Single row four holes | Single Row Six Holes | Double row four holes | Double row six holes | Double row eight holes | |
| model | DK-98-II single digital | √ | √ | √ | √ | √ | √ | √ |
| DK-98-IIA Intelligent | √ | √ | √ | √ | √ | √ | √ | |
| Way | natural water convective heat transfer | |||||||
| performance | Operating temperature range | RT+5~100℃ | ||||||
| temperature resolution | 0.1°C | |||||||
| temperature fluctuation | ±0.5℃ | |||||||
| Temperature distribution accuracy | ±1.0℃ | |||||||
| constitute | Interior | stainless steel plate | ||||||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||||||
| Insulation material | Polyurethane | |||||||
| heater | stainless steel heating tube | |||||||
| rated power | 0.4Kw | 0.5Kw | 1.0Kw | 1.5Kw | 1.0Kw | 1.5Kw | 2.0Kw | |
| controller | temperature control method | PID (excluding DK-98-II) | ||||||
| temperature setting method | Touch the button to set | |||||||
| Temperature representation | Measured temperature display: 3-digit upper digit display Set temperature display: 3-digit lower digit display | |||||||
| timer | 0~999 minutes (with timing waiting function) | |||||||
| running function | Fixed value operation, timing operation, automatic stop | |||||||
| program mode | Optional | |||||||
| Additional features | Deviation correction, menu key lock, power failure compensation, power failure memory | |||||||
| sensor | CU50 | |||||||
| safety devices | Overheating alarm | |||||||
| Specification | Inner size mm | 168*168*120 | 325*168*120 | 653*168*120 | 945*168*120 | 325*325*120 | 480*325*120 | 635*325*120 |
| Dimensions mm | 357*220*198 | 510*220*198 | 820*252*198 | 1130*250*198 | 515*380*198 | 670*380*198 | 825*380*198 | |
| Outer packing size mm | 380*290*240 | 555*320*240 | 870*320*240 | 1170*320*240 | 550*480*240 | 720*480*240 | 870*480*240 | |
| Internal volume | 3.4L | 6.6L | 13.2L | 19.1L | 12.7L | 18.7L | 24.8L | |
| partition load | 5kg | |||||||
| Partition layers | 1 story | |||||||
| Power supply (50/60Hz) rated current | AC220V/1.8A | AC220V/2.3A | AC220V/4.5A | AC220V6.8A | AC220V/4.5A | AC220V/6.8A | AC220V/9.1A | |
| Net weight/gross weight KG | 3.5/3.9 | 4.5/5 | 7/8 | 10/11 | 7/8 | 8/9.5 | 10/12 | |
| configuration can be added | Partition, RS485 interface, Recorder, external communication | |||||||
| Remark | DK-98-II: Single nixie tube digital display time proportional instrument, without PID and alarm function; | |||||||
TaiSiTe SYG-2-8 Electric thermostatic Water BathSpecifications
| LIST | VALUE |
|---|---|
| Number of holes | Double row eight holes |
| way | Natural water convective heat transfer |
| Temperature range | RT+5~100°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ±1.0℃ |
| Tank Material | stainless steel plate |
| Box material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | Polyurethane |
| heater | Stainless steel heating tube |
| Rated power | 2.0Kw |
| Temperature setting | Touch key settings |
| Temperature representation | Measuring temperature display: 3-digit digital upper display, setting temperature display: 3-digit digital lower display |
| Timer | 0~999min |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | CU50 |
| Safety Devices | Overrise alarm |
| Tank Size | 635*325*120mm |
| Dimensions | 825*380*198mm |
| Packing size | 870*480*240mm |
| Tank Volume | 24.8L |
| Shelf load bearing | 5kg |
| Shelf Layers | 1st floor |
| Power | AC220V/9.1A 50/60Hz rated current |
| Net Weight | 10Kg |
| Gross Weight | 12KG |
TaiSiTe SYG-2-8 Electric thermostatic Water Bath Packing list
completeness-built unit X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
