JENCO PH/EC80 Water Quality Analyzer pH/conductivity /TDS/salinity/temperature

0~14/0.01 pH, 0~10.0ppt, 0~20.0mS/0.01µS, TDS: 0~20.0g/L. Automatic temperature compensation -5.0~60.0 ℃

Brand

SKU: NB002917

JENCO

Model

PH/EC80

Get Quote

JENCO shopSE

Information

Datasheet Catalog Manual

What else did others buy

BANTE CL-US ion selective electrode

$ 388.00
JINGQI WD8210 Barium Tester

$ 481.00
Bante40 Portable Smart Water Hardness Meter 0.05~ 200mmol/L

$ 815.00
HANNA HI764073 Special dissolved Oxygen electrode (built-in temperature sensor)

$ 584.00
TONGAO TR 6900DZ Desktop multiparameter STIP-scan

$ 4703.00

Genuinegoods

JENCO PH/EC80 Water Quality AnalyzerOverview
Specifications
Comments
FAQs

PH/EC80

Water Quality Analyzer

0~14/0.01 pH, 0~10.0ppt, 0~20.0mS/0.01µS, TDS: 0~20.0g/L. Automatic temperature compensation -5.0~60.0 ℃

Introduction

The JENCO PH/EC80 Water Quality Analyzer is a multi-functional (5-in-1) online test pen that can simultaneously measure and display conductivity, pH, salinity, total dissolved solids, and temperature. Up to 50 entries of memory data can be accessed, allowing users to review changes, switch between Celsius & Fahrenheit temperature units, IP-67 waterproof body, and replaceable electrode programs.

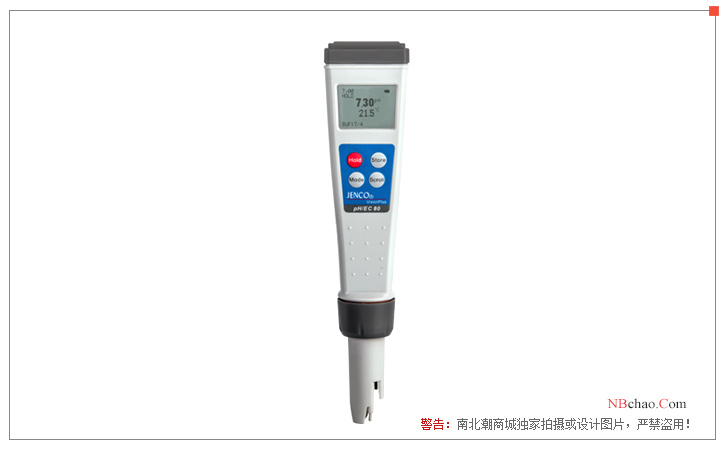

JENCO PH/EC80 Water Quality Analyzer display diagram

Features

Simultaneously measure conductivity, pH, salinity, total dissolved solids, and temperature
Dot matrix LCD display
Automatic temperature compensation
Fahrenheit & Celsius display switching
Automatic shut-down
Interchangeable electrode program
50 self-material deposits and withdrawals
IP-67 specification waterproof body
Battery life of more than 100 hours
This product complies with EU and RoHS certification

product structure

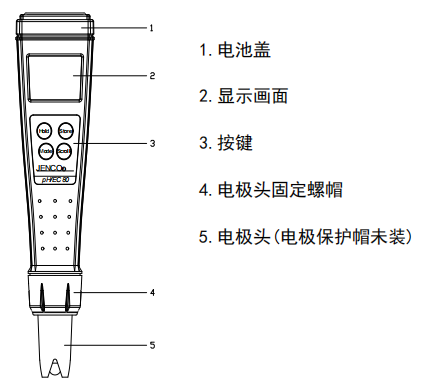

Structure diagram of JENCO PH/EC80 Water Quality Analyzer

JENCO PH/EC80 Water Quality AnalyzerSpecifications

LIST	VALUE
pH Measurement Range	0.00~14.00pH
pH resolution	0.01pH
pH measurement Accuracy	±0.01pH
Conductivity Measurement Range	0uS/cm~20.00mS/cm
EC resolution	1uS/cm
EC measurement Accuracy	±1%FS
TDS range	0mg/L~20.00g/L
TDS resolution	Minimum resolution 1mg/L
TDS measurement Accuracy	±1%FS
Salinity range	0.0~10.0ppt
Salinity range	0.1ppt
Salinity measurement Accuracy	±1%FS
Temperature Measurement Range	-5.0~60.0℃(23~140℉)
Temperature Resolution	0.1℃(0.1℉)
Temperature measurement Accuracy	±0.5℃(±0.9℉)
pH calibrating solution	US (4.01, 7.00, 10.01) ； NIST (4.00, 6.86, 9.18)
pH temperature compensation	automatic
reference temperature	15~ 25 ℃, default 25.0 ℃/0.00 to 4.00%, default 1.91%
TDS conversion factor	0.30~1.00 adjustable, default value 0.65
Data storage	50 sets
Automatic shutdown	10 minutes without operation
Power	4 X LR-44 batteries
Weight	About 110g (without battery)
Dimensions	2004425mm
pH temperature compensation range	-5.0~60.0℃

JENCO PH/EC80 Water Quality Analyzer Packing list

Host X1, pH electrode head X1, conductivity electrode head X1, battery X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How to replace the electrode of PH/EC80?

[A]

Hello, how to replace the electrode: 1. Unscrew the electrode head fixing nut counterclockwise. 2. Unplug the electrode head (aging) from the electrode socket. 3. Insert a new electrode head and ensure that the electrode head is intact The machine contact is good. 4. Put on the electrode head fixing nut and tighten it clockwise.

[Q]

How to choose the PH standard solution group for JENCO PH/EC80 Water Quality Analyzer?

[A]

Hello, the selection method of PH standard solution group is as follows: 1. Press the "Scroll" button for more than 5 seconds in the pH measurement world to enter the "standard solution group selection mode". 2. Press the "Store" key again to select the 7.00 group (7.00/4 01/10.01); press the "Scroll" key to select the 6.86 group (6.86/4 00/9.18). 3. Press the "Mode" button to exit the "Standard Solution Group Selection Mode" and enter the pH measurement mode.

[Q]

What is the TDS coefficient of PH/EC80 STIP-scan? Can it be adjusted?

[A]

Hello, it can be adjusted. It is adjusted within the range of 0.30~ 1.00. The default value is 0.65.

[Q]

How long is the battery life of this PH/EC80 Water Quality Analyzer?

[A]

Hello, the battery life can reach more than 100 hours.

[Q]

Is the JENCO PH/EC80 automatically warmed? How many water quality parameters can be tested?

[A]

Hello, yes, PH/EC80 is a 5-in-1 Water Quality Analyzer, which can simultaneously test conductivity, acid alkalinity, salinity, total solids dissolved, and temperature value.
