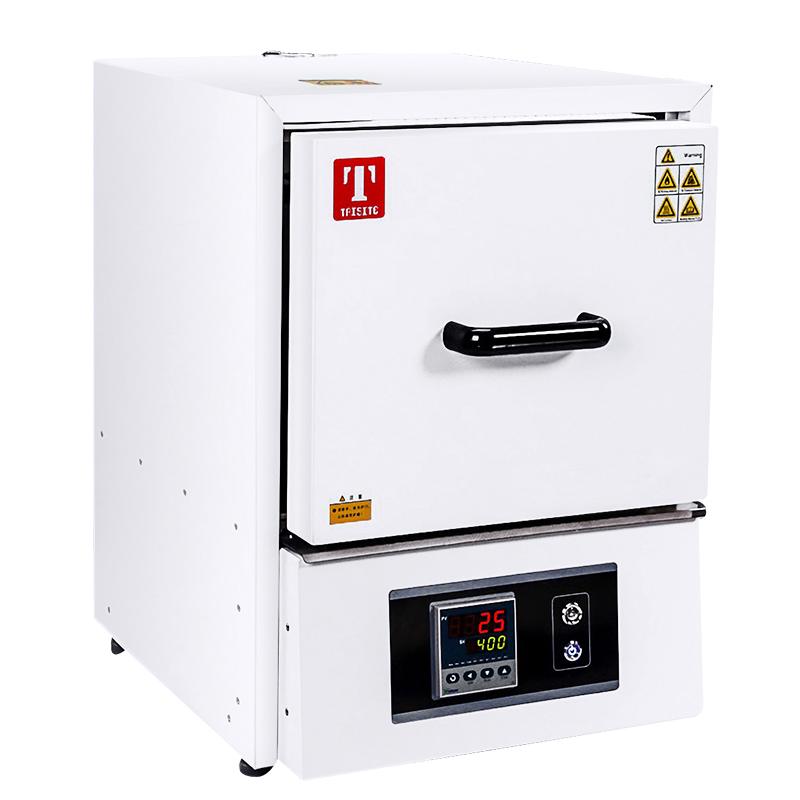

TaiSiTe MFLC-2/12P Ceramic muffle furnace

TAISITE MFLC-2/12P ceramic fiber muffle furnace 1200 ℃/2L

TAISITE MFLC-2/12P ceramic fiber muffle furnace is a program temperature control Box-Type Resistance Furnace, double-row LED digital display, furnace volume is 2L, Heating power of MFLC-2/12P is 1.5KW, heating element is nickel-chromium-aluminum alloy three-sided heating.

Brand

SKU: NB029205

TaiSiTe

Model

MFLC-2/12P

Get Quote

TaiSiTe

Information

Datasheet Catalog

What else did others buy

BOZHEN BZH-2.5-10 Ash determination muffle furnace aluminum liner 2.5KW 1000 ℃/2L

$ 515.00
JINGQI SX2-12-12N integrated Box-Type Resistance Furnace

$ 1600.00
JINGQI SX2-5-12N integrated Box-Type Resistance Furnace

$ 753.00
HUITAI 8-10T ceramic fiber muffle furnace volume 36L temperature control up to 1000 ℃

Login
YIHENG SX 2 - 2.5-10 NP programmable muffle furnace controlled temperature 1000 ℃ Power 2.5KW

$ 893.00

Genuinegoods

TaiSiTe MFLC-2/12P Ceramic muffle furnaceOverview
Specifications
Comments
FAQs

MFLC-2/12P

Ceramic muffle furnace

Benefits:

Integrated design, light and compact structure.
The vacuum-formed polycrystalline mullite fiber furnace is effectively insulated, and the special alloy heating wire is heated on three sides to provide good temperature uniformity.
Open the door and cut off the power, and the power recovery delay to ensure safety.
The double-case body is air-insulated and has a low surface temperature.
Exhaust device, which is conducive to ashing.
The high-precision microcomputer thermometer is well combined with the precision sensor, and the temperature is accurate.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize overlift alarm, deviation correction, menu lock, overlift preventer.
Security:Over-lift alarm, menu lock, over-lift prevention, door opening and power failure, and power recovery delay.
Parallel side-opening furnace doors keep the hot end away from the operation.

Tester MFLC-2/12P Ceramic Muffle Furnace Detail Figure 1

MFLC1200°C series

Model	Heating power	Content volume
MFLC-2/12(D/P/T)	1.5KW	2L
MFLC-7/12(D/P/T)	3KW	7L
MFLC-16/12(D/P/T)	6KW	16L
MFLC-24/12(D/P/T)	6.6KW	24L
MFLC-36/12(D/P/T)	10KW	36L
Other parameters
Operating temperature range	300～1200℃
Control accuracy	±1℃
Temperature resolution	1℃
Heating time	≤30min
Exterior	Cold-rolled steel plate, surface resistant coating
Furnace body	Polycrystalline mullite fibers
Exhaust holes	The outer diameter is φ22, and the inner diameter is φ18
heater	Nichrome aluminum alloy OCr27AL7Mo2, heated on three sides
Thermostats	Type D: Single-stage temperature control digital display P type: imported program temperature control digital display T-type: 7-inch color touch screen program temperature control
Control mode	Use a microcomputer PID controlsystem
How to set it up	D/P type: touch five button action, digital display setting T-shaped: Tap your finger to set
How it is displayed	D/P type: Dual-line LED digital display T-type: color LCD screen display
timing	0~999.9 smalltime
Run the function	Type D: Fixed-value operation P/T type: Fixed-value running program run
Program mode	Type D: Single-stage operation Type P: The program runs 4 curves and 40 steps T-type: The program runs in 50 steps
sensor	Type K thermoelectricidol
Ancillary features	Type D/P: Correction function gating function T-type: correction function, gating function, real-time curve recording, U disk data export
Safety devices	Overcurrent and leakage protection is onclose

TaiSiTe MFLC-2/12P Ceramic muffle furnaceSpecifications

LIST	VALUE
maximum temperature	1200℃
Temperature range	300~1200℃
Heating Elements	Nickel-chromium-aluminum alloy OCr27AL7Mo2
Furnace material	polycrystalline mullite fiber
Furnace Volume	2L
Heating power	1.5KW
Temperature control Accuracy	±1℃
Heating time	≤30min
Temperature control instrument	Imported program temperature control digital display
Thermocouple	Thermocouple K
Furnace size	20012080mm
Power	AC220V/7A 50/60Hz
Dimensions	480617683mm
Product Weight	40kg
Temperature Resolution	1℃
Exterior material	Cold rolled steel plate, surface resistance painting
vent	Outer diameter φ22, inner diameter φ18
Temperature control instrument	Using microcomputer PID control
Setup method	Touch five button action, digital display settings
Display mode	Dual row LED digital display
Timer	0~999.9h
Run function	Fixed value operation, program operation
Program Mode	The program runs 4 Linear dispersion 40 steps
Additional features	Correction function, gating function
Safety Devices	Overcurrent leakage protection switch
Packing size	650760790mm
Gross Weight	45kg
Heating mode	Three-sided heating

TaiSiTe MFLC-2/12P Ceramic muffle furnace Packing list

completeness-built unit X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
