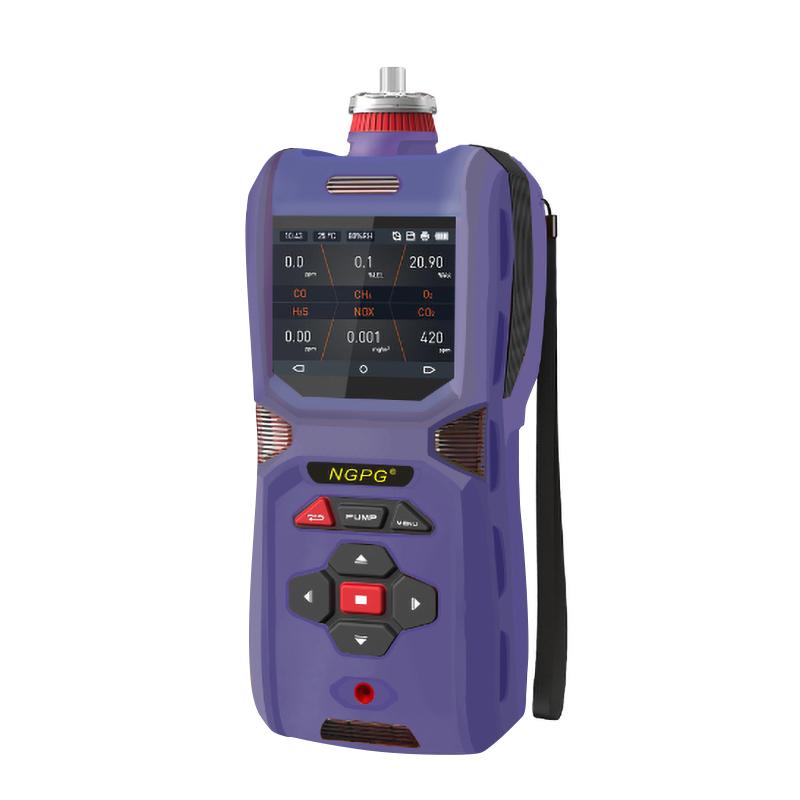

GAOPIN NGP40-60 Gas Detector

Introduction

NGP40-60 portable multi-function Gas Detector is used for mobile fast and accurate detection, on-site 1-6 gas concentration, temperature and humidity measurement and alarm exceeding the standard. The 2.5-inch high-definition color screen is used to display the concentration in real time, and the gas sensor of the familiar brand is selected, and the main detection principles are: electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoion. Professional circuit design, mature kernel algorithm processing, and obtained a number of software patents and appearance patents. It can detect the concentration of gases in pipelines or confined spaces and atmospheric environments, can detect gas leakage, detect more than 1,000 kinds of gases, and can also detect the purity of various background gases.

Features

● Completely waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference.

● IP65 protection level, can be protected from rain and short-term immersion, can be used in high humidity, high dust occasions without damaging sensors and instruments.

● Built-in pump-suction measurement, fast response, sampling distance greater than 10 meters, special air path design, direct detectionNegative pressure or positive pressure -0.5~2 kg of gas, no effect on the measurement results.

● 2.5-inch high-definition color screen displays real-time concentration, alarm, time, temperature, humidity, storage, communication, power, charging status and other information.The menu interface uses high-definition simulation icons to display the function names of each menu.

● Large-capacity data storage function, standard 100,000 pieces of data storage capacity, larger capacity can be customized. SD card storage function can be selected, support real-time storage, timed storage or only storage of alarm concentration data and time, support local viewing, delete data, can also upload data to the computer through USB, infrared communication, RS232 interface, analyze data and store and print with host computer software. Support long-range wireless transmission (optional function).

● USB charging interface, can be charged by computer or power bank, compatible with mobile phone chargers, overcharge, overdischarge, overVoltage,Short-circuit, over-temperature protection, 5-level accurate power display, support USB hot-swap, the Detector can work normally when charging, and RS485 communication is optional.

● Using 6000mA large-capacity rechargeable polymer battery, it can work continuously for a long time.

● Sound and light alarm, vibration alarm, visual alarm, under-Voltage alarm, fault alarm, multi-directional three-dimensional display of alarm status during alarm.

● The alarm value can be set, and the alarm mode can be low alarm, high alarm, interval alarm and weighted average alarm.

● High-precision temperature and humidity measurement (optional), and temperature compensation for the sensor at the same time, the temperature range of the instrument is -40~70 degrees.

●Three display modes can be switched: display four gas concentrations at the same time, large-font cycle display of single-channel gas concentration, real-time curve, automatic cycle or manual cycle between each channel can be switched, you can set whether to display the maximum value, minimum value, gas name, you can view the historical curve graph.

●Chinese and English interface can be selected, default Chinese interface, concise Chinese or English operation tips

● Data recovery function, selective recovery or full recovery, free from worries caused by misoperation

●Zero point automatic tracking, long-term use is not affected by zero point drift.

host x1, data cable x1, charger x1, 0.5-meter hose x1, manual X1, certificate x1, warranty card x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
