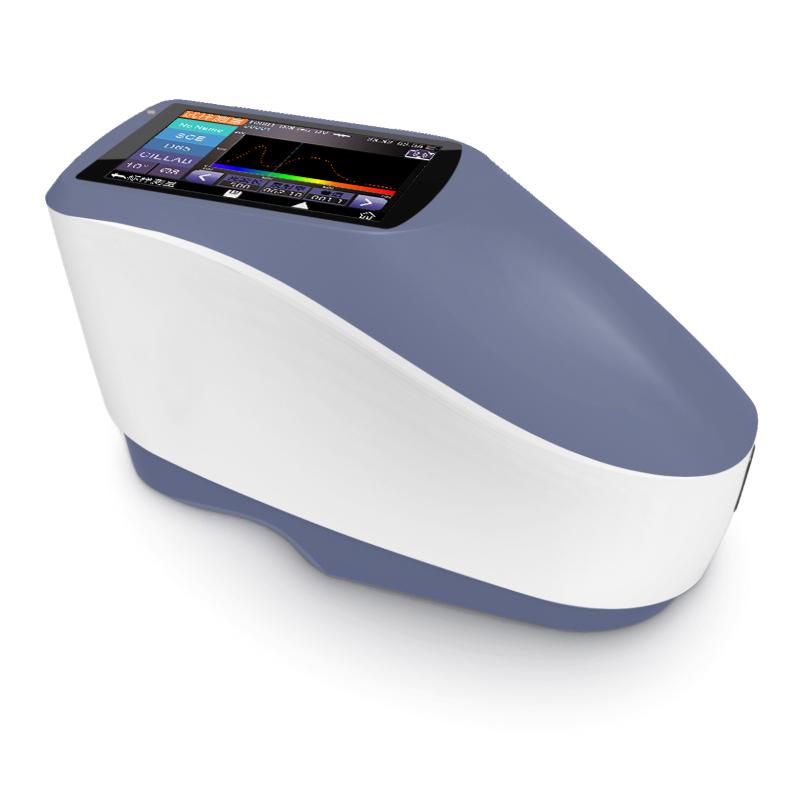

3NH YS3020 Grating Colorimeter measurement diameter 1x3mm

Introduction

3NH YS3020 grating Spectrophotometer is a domestic (CN) grating Spectrophotometer independently developed by 3nh company with independent intellectual property rights, with many types of light sources, a single 4mm aperture, USB/Bluetooth 4.0 dual mode, high precision, standard storage capacity, for accurate color analysis and transmission in the laboratory, SCI and SCE reflectance data for accurate measurement of samples/fluorescence samples, and can accurately measure and express various color difference formulas and color indices in a variety of color spaces.

Features

1. D/8 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

2. Adopt a combination of high life and low power consumption LED light source, including UV/exclusion UV measurement;

3. The beautiful appearance is well combined with the structural design in line with human mechanics;

4. Standard Φ 4mm caliber, suitable for more samples to be measured, and simultaneous measurement of SCI and SCE;

5. Measure the spectrum of the sample, the Lab data is accurate, which can be used for color matching and accurate color transmission;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS Detector, etc.;

7. USB/Bluetooth 4.0 dual communication mode (compatible with 2.1), wider adaptability;

8. Super dirt-resistant, stable, high-reflectivity standard whiteboard;

9. Large-capacity storage space, which can store more than 20,000 pieces of test data;

10. Camera framing positioning;

11. The PC software has powerful function extensions.

Application

YS3020 grating Spectrophotometer It can easily realize the accurate transmission of color, and can also be used as a testing equipment for accurate color matching system. It is widely used in plastic electronics, paint and ink, textile and garment printing and dyeing, printing and paper products, automobiles, cosmetics and food industries, and is widely used in scientific research institutions and laboratories.

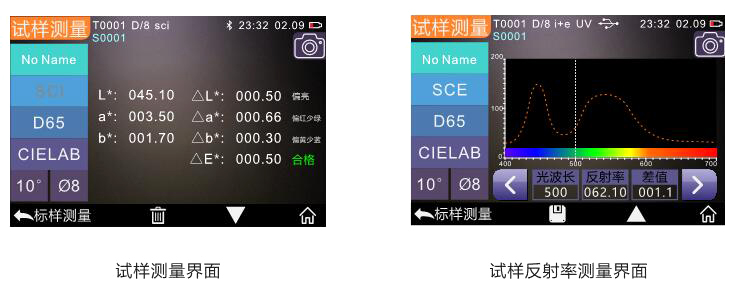

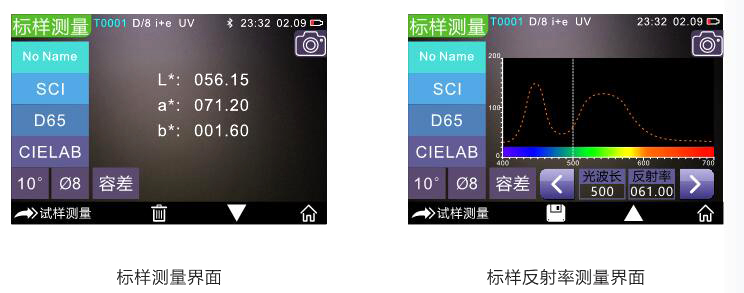

Functional interface

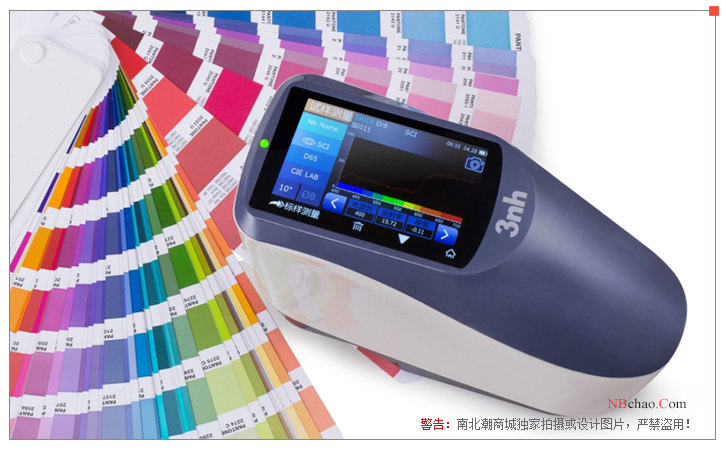

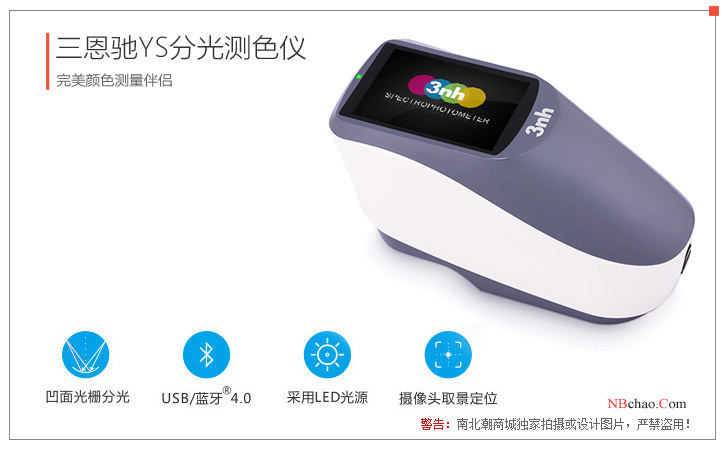

Product display diagram

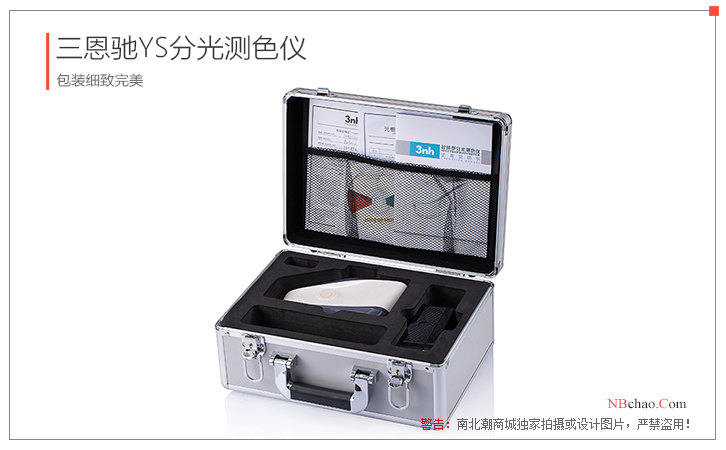

host X1, power adapter X1, data cable X1, manual X1, certificate X1, warranty card X1, correction box X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
