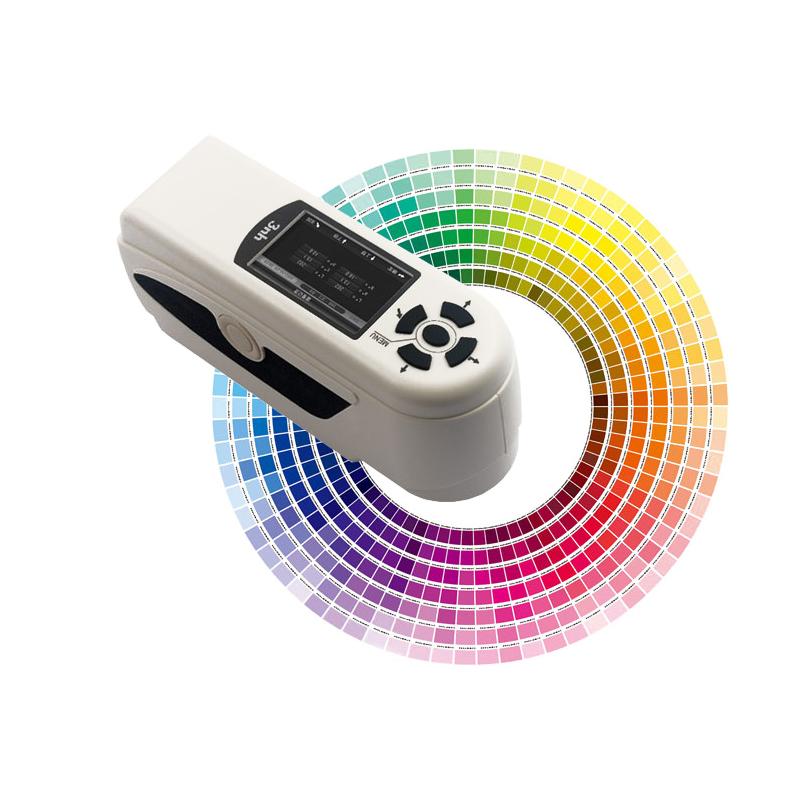

Sanenshi 3NH SR-68 computer color reader φ 8mm
The measurement light source D65, the measurement diameter is 8 mm, and the repeability is less than or equal to 0.08 Delta E * ab, which can be used for measurement in the food, cosmetics, chemical, electronics, automotive and other industries.
3NH-
LS175 color difference meter Handheld large diameter color difference meter 45 °/0 ° Optical inspection structure 20mm measurement diameter
$ 472.00 -
INESA WSC-2S Colorimeter touch screen control, multi-interface output
$ 2185.00 -
CHINA LS170 portable Colorimeter intelligent APP color difference Tester
$ 125.00 -
IWAVE WF30-8mm Colorimeter CHINA universal color difference instrument with USB communication interface Chinese and English system 2.8TFT true color screen
$ 1003.00 -
3NH/3NH NH300 portable Colorimeter 8mm caliber with multi-function test kit
$ 1594.00
Introduction
The computer Colorimeter SR-68 is another high-speed, portable and intelligent computer Colorimeter launched by Sanenshi, which simplifies the color management interface, professional color control, good scanning works, and undifferentiated color data, providing reliable analysis data for color design. It can be used well in food, cosmetics, chemicals, electronics, automobiles and other industries.
The Computerized Colorimeter SR-68 is your color management professional. Professional R&D and production, is your better means of color management and communication, the computer Colorimeter SR-68 is a masterpiece of computer Colorimeter with good measurement data, clear display screen, portable and compact appearance structure.
Advantages
1. Front-line user-friendly design and ease of operation
One-click access to the test; Structural design in line with ergonomics; Fool-proof interface.
2. Stable measurement performance
△E is less than 0.08; The portable structure design is more conducive to keeping the body stable when applied.
3. Convenient and fast positioning
The light positioning function is a quick and easy positioning function, developed for 3NH.
4. The PC software realizes more function expansion
The PC software has intellectual property rights, and the product is equipped with a one-to-one corresponding genuine software serial number and password protection; It can carry out color difference analysis, color difference accumulation analysis, color index, color sample library management, simulated object color, etc.
5. Professional power management design
A high-capacity lithium-ion battery is used in the Colorimeter; It can be used repeatedly and automatically to save costs, and it can be measured more than 3000 times at a time, ensuring the stability of long-term measurement.
SR-68 Computerized Colorimeter is a masterpiece of 3nh Sanenchi brand, inheriting the advantages of high stability and high precision of portable computer Colorimeter, and has a high cost performance. The mainstream brand of computer Colorimeter launched after integrating the advantages of dozens of traditional imported computer Colorimeters, has been tested tens of thousands of times and applied many innovative technologies. Accurate, stable, beautiful and affordable! If you need a computerized Colorimeter, this SR-68 is your best choice in terms of cost performance and functionality!
3NH SR-68 Computer color readerSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | 8°/d |
| Sensors | Silicon photodiode array |
| Measurement light source | D65 |
| Measurement caliber | Φ8mm |
| Sexual repeability | ≤0.08ΔE*ab |
| operating language | Chinese, English |
| Data Interface | USB port |
| lighting source | LED blue excitation |
| color difference formula | ΔE*ab、ΔL*a*b、ΔE*C*h |
| data storage | 100 standards, 20,000 samples |
| Power Supply | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Operating environment | -10~40 ℃, 0-85% Relative Humidity (non-condensing) |
| Storage environment | -20-50 ℃, 0~85% Relative Humidity (non-condensing) |
| Dimensions | 205*70*100mm |
| Weight | 500g |
| positioning method | illumination positioning |
| Color Space | CIE L*a*b*C*h*、CIE L*a*b*、CIE XYZ |
| Inter-instrument Agreement | ΔE*ab<0.5 |
| Charging time | About 8 hours = 100% battery |
| Number of measurements after charging | 3000 measurements in 8 hours |
| Lighting source life | 3 years warranty, greater than 1 million measurements |
| optional accessories | Micro thermal printer, powder test box |
3NH SR-68 Computer color reader Packing list
host X1, power adapter X1, data cable X1, correction box X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
