Sanenshi 3NH SR-66 full-function color reader Should 8/Should 4mm
Measurement caliber 8 platform measurement caliber, 4 pointed nozzle measurement caliber, Color space CIE LAB, XYZ, LCh, CIE RGB, CIE LUV, higher measurement stability and accuracy, Delta E * ab < 0.03, dual caliber test data can pass the national Measurement test certification.
3NH-
3NH NH310 Colorimeter 8mm /4mm double aperture, suitable for plastic, Coating, printing, automotive, Spinning & weaving, food, etc
Login -
IWAVE WF30 16mm large diameter Colorimeter fabric color difference leather color difference wood color difference special measuring instrument
$ 1392.00 -
Jin Zhun JZ-610 High Precision Colorimeter Small Hole 4mm
$ 724.00 -
KINGWELL JZ-300 general Colorimeter 8mm diameter, plastic, lame plating, Eletroplating, printing industry special
$ 347.00 -
IWAVE WR18-40 precision Colorimeter 4mm/8mm/40mm three color difference measurement caliber
$ 1050.00
Features

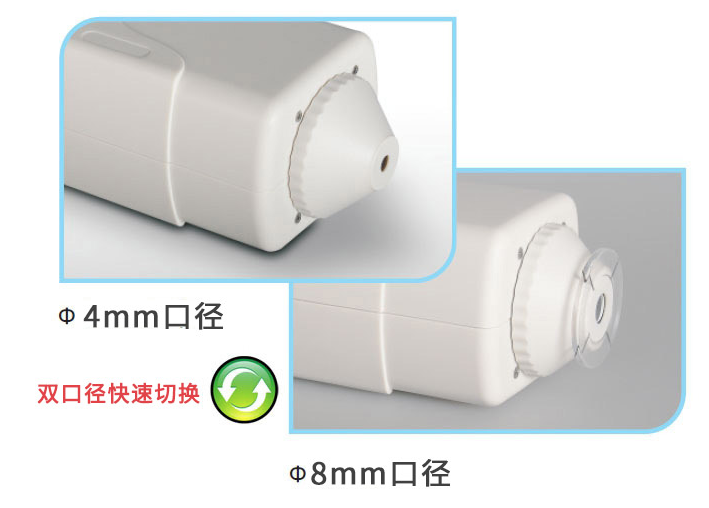

1. Φ8mm and Φ4mm double aperture can be switched freely, making it easier to measure concave samples in large planes;
2. Higher measurement stability and accuracy, ΔE*ab<0.03, dual-caliber test data can pass the national metrology test certification;
3. A variety of color spaces, a variety of color indexes, wider applicability;
4. Dual positioning: light positioning, cross positioning;
5. Equipped with high-capacity rechargeable lithium-ion battery;
6. Built-in whiteboard parameters, and physical whiteboard configuration at the same time, easy to operate;
7. New integrating sphere design, more stable measurement.

Application industry
Colorimeter SR-66 is a new high-precision intelligent handheld computer Colorimeter on the market, the core technology is very good, the shape is small, it is completely in accordance with the CIE (International Illumination Committee) standards and national standards research and development, suitable for a variety of occasions of color detection and control, is a garment factory, chemical plant, printing plant, automobile factory, hardware processing factory, mold factory, paint factory and other production in the production of color management better choice. At the same time, the performance of this Colorimeter is stable, and the original machine comes with color management software, which increases the use range and functionality of the Colorimeter.

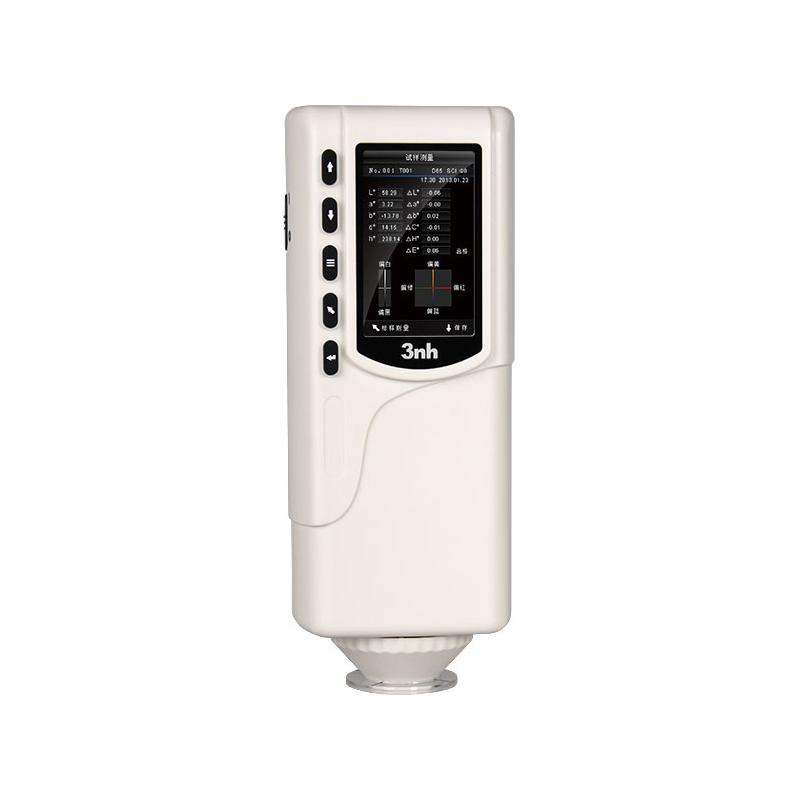

3NH SR-66 Full color readerSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | 8°/d |
| lighting source | LED light source |
| Sensor | Silicon photodiode |
| Measurement caliber | 8 platform measurement diameter, 4 pointed nozzle measurement diameter |
| Color Space | CIE LAB,XYZ,LCh,CIE RGB,CIE LUV |
| color difference formula | ΔE*ab,ΔE(h),ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00v |
| Other chroma metrics | WI (ASTM E313, CIE, AATCC, Hunter), YI (ASTM D1925, ASTM 313), colouring fastness, colour fastness to change, JPC79, BFD (1.5:1), FMCII |
| Viewing Angle | CIE 10° |
| Measurement light source | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 |
| display mode | Chromatic value, color difference value/graph, pass/fail result, Color bias |
| Measurement time | 0.4s |
| Sexual repeability | ΔE*ab<0.03 |
| Inter-instrument Agreement | ΔE*ab<0.2 |
| Dimensions | 205*67*80mm |
| Weight | 500g |
| battery life | Rechargeable lithium-ion battery 3.7V 3200mAh (built-in battery) |
| Lighting source life | More than 1.60 million measurements in 5 years |
| Display | TFT True Color 2.8inch @(16:9) |
| Data Interface | USB/ RS-232 |
| data storage | 100 master standards, 20,000 samples |
| Operating environment | 0~40℃(32~104°F) |
| Storage environment | -20~50℃ |
| PC software | CQCS3 high-end host computer software |
| optional accessories | Miniature printing rack, powder test box |
3NH SR-66 Full color reader Packing list
host X1, power adapter X1, data cable X1, correction box X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
