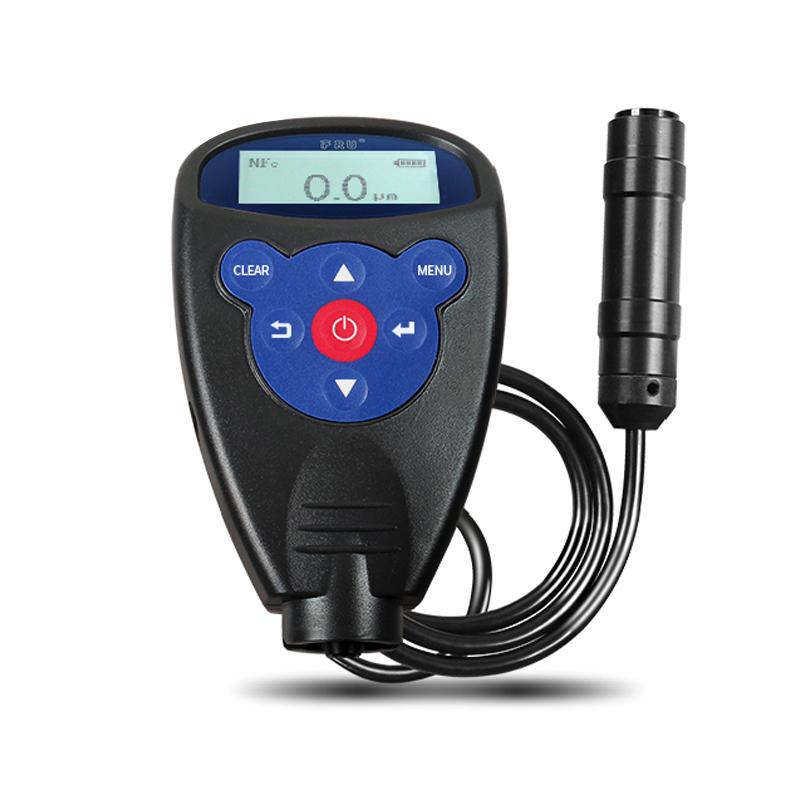

IWAVE WH91 split coating Film thickness meter Iron base

Introduction

WH91 single-iron base split Thickness Gauge is a kind of extended probe with wire developed and produced by IWave. It is more convenient to measure the groove surface. There are also some places under the table and outside the window that cannot be measured. The measurement is very convenient and can meet the different needs of customers.

Features

1. With power supply underVoltage indication function;

2. There is a buzzer prompt during the operation;

3. Can quickly and automatically identify ferrous substrates and non-ferrous substrates;

4. There are two shutdown methods: manual shutdown and automatic shutdown;

5. It has a negative number display function to ensure the calibration accuracy of the instrument at the zero point;

6. The magnetic thickness measurement method is adopted, which is suitable for the thickness measurement of the non-magnetic layer on the magnetic material. Magnetic materials are generally: steel, iron, silver, nickel;

7. Two methods of single-point calibration and two-point calibration can be used to calibrate the instrument, and the basic calibration method can be used to correct the system error of the measuring head to ensure the accuracy of the instrument during the measurement process.

Standards

GB/T 4956─1985 Magnetic methods for measuring the thickness of non-magnetic coatings on magnetic metal substrates

GB/T 4957─1985 Eddy current method for measuring the thickness of non-conductive coatings on non-magnetic metal substrates

JB/T 8393─1996 Magnetic and eddy current coating thickness measuring instrument

JJG 889─95 "Magnetic Resistance Thickness Gauge"

JJG 818─93 "Eddy Current Thickness Gauge"

Host x1, iron substrate x1, calibration shim x1, AA battery x2, certificate x1, manual x1, Encasement box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
