        DAKOTA PT-042-2700 Standard High Temperature High Impedance Probe

        DAKOTA PT-042-2700 Standard High Temperature High Impedance Probe

        The DAKOTA standard high temperature high Impedance probe PT-042-2700 has a diameter of 1/4 " (Ø 6.35mm) and is a 5MHz Frequency Ultrasonic Thickness Gauge dual crystal probe. The PT-042-2700 thickness measurement range is 1.0~152mm, which can be used for high temperature environment thickness measurement up to 340 ℃.

        Brand
        SKU: NB029571
        United States DAKOTA
        Get Quote
        VS
        DAKOTALOGO

        DAKOTA

        Information
        Datasheet Catalog
        What else did others buy
        Genuinegoods

        • DAKOTA PT-042-2700 Standard High Temperature High Impedance ProbeOverview

        • Specifications
        • Comments
        • FAQs
        PT-042-2700
        Standard High Temperature High Impedance Probe

        Introduction

        The DAKOTA standard high temperature high impedance probe PT-042-2700 has a diameter of 1/4" (Ø6.35mm), it is a 5MHz frequency ultrasonic Thickness Gauge dual element transducer, PT-042-2700 thickness measurement range is 1.0~152mm, can be used for high temperature environment thickness measurement up to 340°C.

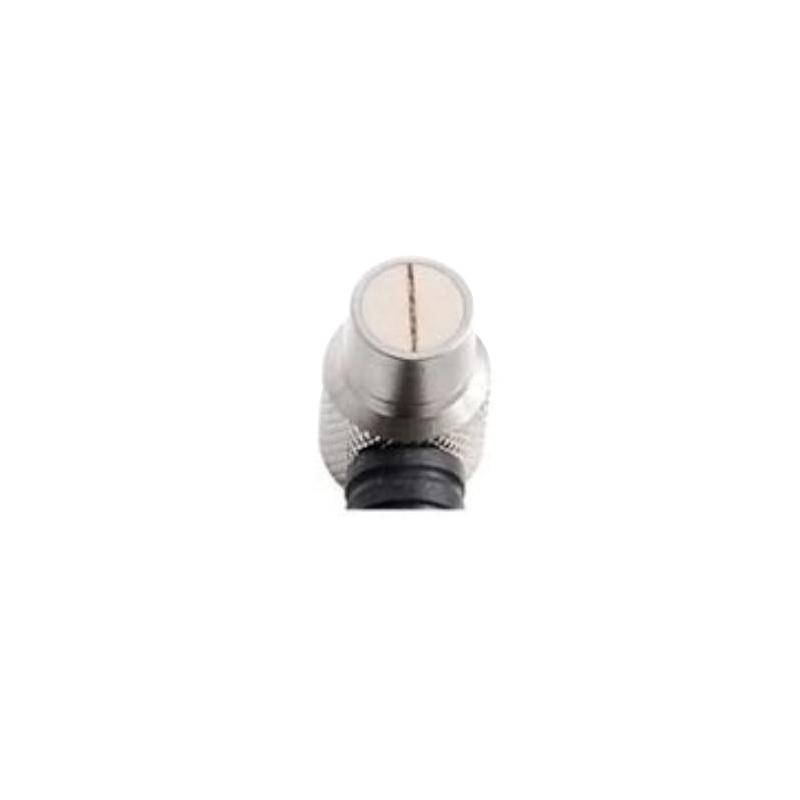

        DAKOTA PT-042-2700 Standard High Temperature High Impedance Probe Details Figure 1

        PT Series Thickness Gauge Probe Parameters

        ModelThickness rangefrequencyProbe diameterHigh temperatures
        PT-102-20001.0~152mm5MHz/wafer Ø6.35mm
        PT-102-27001.0~152mm5MHz/waferØ6.35mm
        PT-102-29001.0~152mm5MHz/waferØ6.35mm/CT mode
        PT-104-97002.54~100mm/3.2-100mm(Penetration mode)3.5MHz/waferØ12.7mm
        PT-101-20001.0~50mm5MHz/waferØ4.76mm
        PT-101-27001.0~50mm5MHz/waferØ4.76mm
        PT-104-00003.8~50.8mm(Medium Cast Iron)1MHz/waferØ12.7mm
        PT-102-10001.5~100mm2.25MHz/waferØ6.35mm
        PT-102-33000.63~152mm7.5MHz/waferØ6.35mm
        PT-102-3700Penetration mode: 5.0~25.4m7.5MHz/waferØ6.35mm
        PT-104-20001.27~508mm5MHz/waferØ12.7mm
        PT-104-27001.27~508mm5MHz/waferØ12.7mm
        PT-042-20001.0~152mm5MHz/waferØ6.35mm340℃
        PT-042-27001.0~152mm5MHz/waferØ6.35mm340℃
        PT-044-20001.27~508mm5MHz/waferØ12.7mm340℃
        PT-044-27001.27~508mmwaferØ12.7mm340℃
        PT-212-20011.0~152mm5MHz/waferØ6.35mm480℃
        PT-214-20011.27~508mm5MHz/waferØ12.7mm480℃
        PT-104-2120With PR-82/1.27~380mm5MHzR=50mm
        PT-074-29062.54~100mm5MHz/UMX-2Ø12.7mm


        VS

        DAKOTA PT-042-2700 Standard High Temperature High Impedance ProbeSpecifications

        LIST VALUE
        Measurement range 1.0~152mm
        Probe Frequency 5MHz
        Probe diameter Φ6.35mm
        Probe style dual crystal probe
        Temperature range 340℃

        DAKOTA PT-042-2700 Standard High Temperature High Impedance Probe Packing list

        Probe x1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
