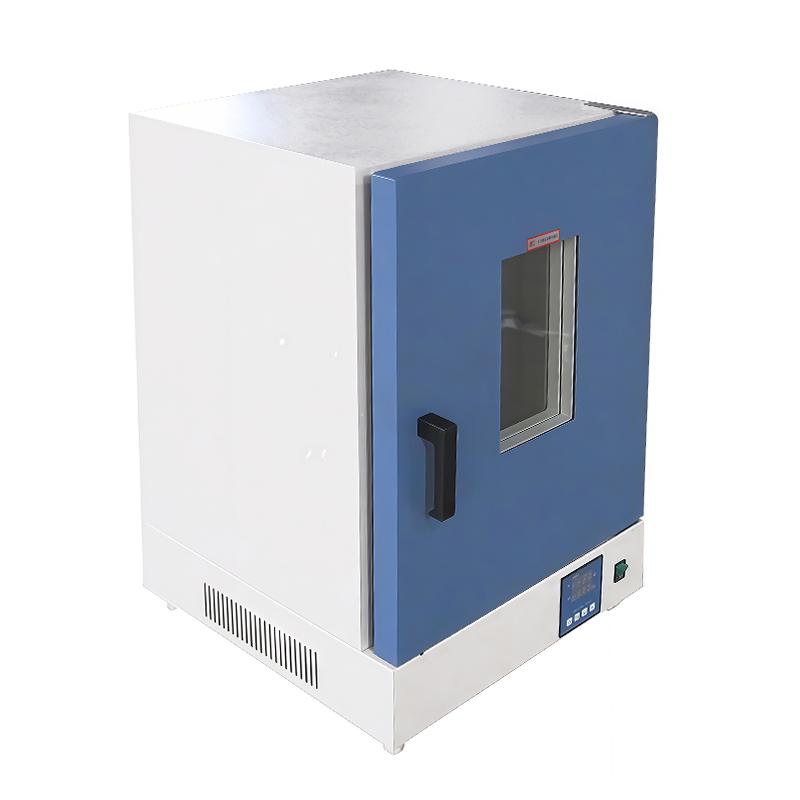

BOZHEN DGG-9030A Vertical Forced Air Drying Oven 31L/200 ℃

Introduction

The electric constant temperature Forced Air Drying Oven is suitable for drying, baking, sterilization and disinfection in scientific research units, colleges, laboratories, medical institutions, etc., and can also be used for general constant temperature experiments.

control system

1. Adopt digital microcomputer temperature controller, the control is accurate and reliable, and the precision is 0.1°C (display range).

2. It has timing function, temperature control protection function, and a fan stop switch.

3. Optional intelligent programmable liquid crystal controller (there are 10, 15 and 30 segments to choose from).

Cabinet material

1. The liner is made of argon arc welding of mirror stainless steel plate (galvanized plate).

2. The shell is made of high-quality steel plate material sprayed with plastic, with a beautiful and novel appearance.

3. There is a large-area double-layer toughened glass observation window for observing the status of the studio.

4. The hot air circulation system is composed of imported original fans that can operate continuously at high temperatures and professionally designed air ducts.

5. Vertical and vertical forced convection ensures uniform temperature in the working room.

6. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents (optional).

7. The thermal insulation system uses ultra-fine glass fiber to fill the thermal insulation area, and the connection between the inner and outer tanks is made of non-metallic high-temperature-resistant materials, which can effectively reduce high-temperature conduction.

 Conditions of Use

Ambient temperature: 5℃～40℃, Ambient humidity: ≤85%RH.

Optional

• Intelligent LCD program temperature controller (thirty segments)

• Intelligent program temperature controller (thirty segments)

• Independent temperature limit controller

• printer

• RS485 interface and communication software

• 25mm test hole

• 50mm test hole

• 80mm test hole

• 100mm test hole

Host X1, stencil X2, fuse X2, manual X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
