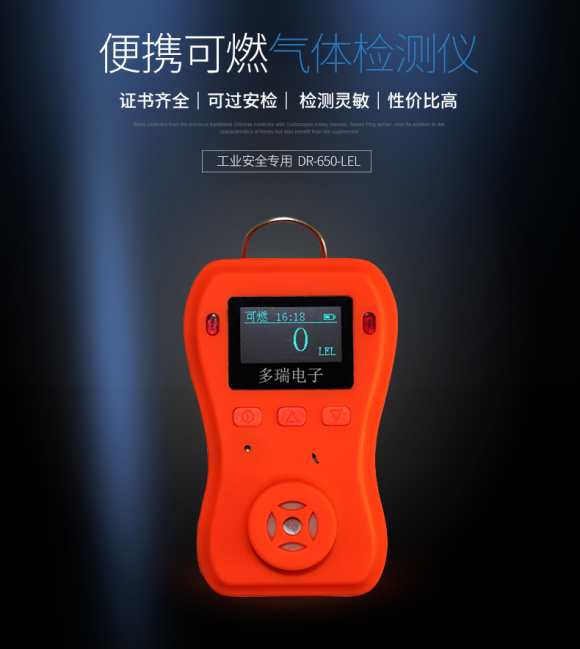

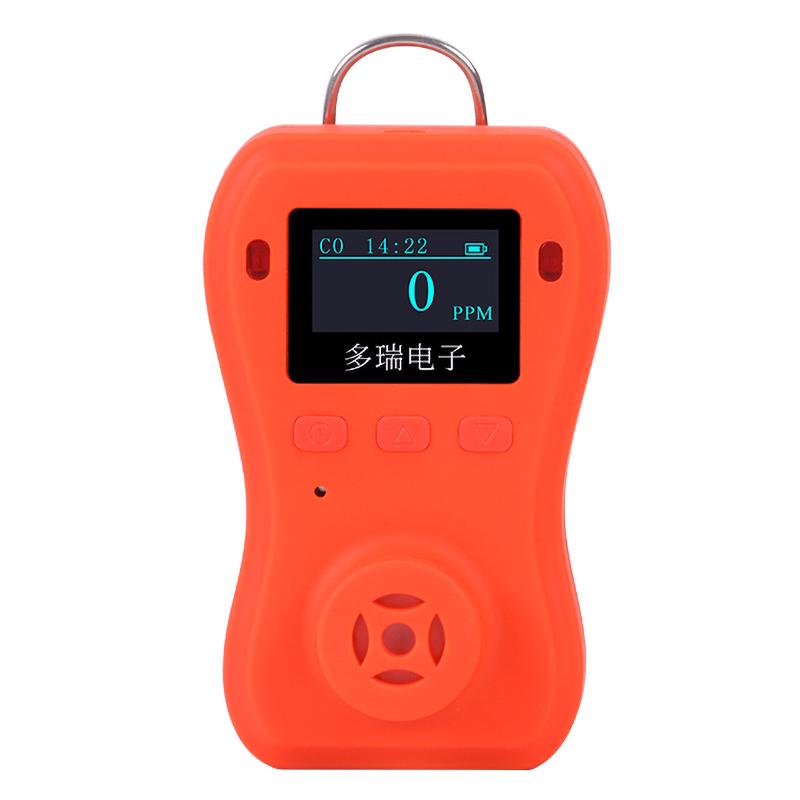

DUORUI DR-650-LEL Combustible Gas Detector with third party test report

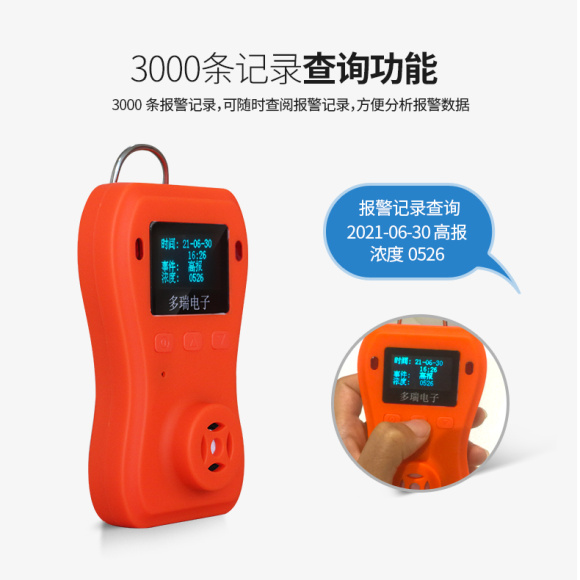

DUORUI DR-650-LEL Combustible Gas Detector adopts the principle of diffusion sampling to detect the concentration value of combustible gas, the range is 0~100% LEL, DR-650 Combustible Gas Detector has 3000 data record query function.
DuoRui
DR-650-LEL
-
BOSEAN BH-90-CO Portable CO Gas Detector 0-1000ppm
$ 140.00 -
Baoshian BH-60-H2S Fixed Hydrogen Sulfide Gas Detector, LCD Display
$ 186.00 -
KORNO GT-903-CH4-Y (infrared 1%) methane Detector, measuring range 0-1000PPM
$ 1038.00 -
KORNO NBC500-YH-CO-IR Infrared CO Detector 0-2000ppm
$ 2403.00 -
GUOYUGRA GY/VGD-200-CH3CL-G (0-50ppm) Chloromethane Detector
$ 568.00
The DR-650 Combustible Gas Detector is a measurementThe range is 0~100%LEL, and the indication error is ±5%FS Detector, DR-650 combustible Gas Detector uses diffusion sampling method and catalytic combustion detection principle for gas detection.

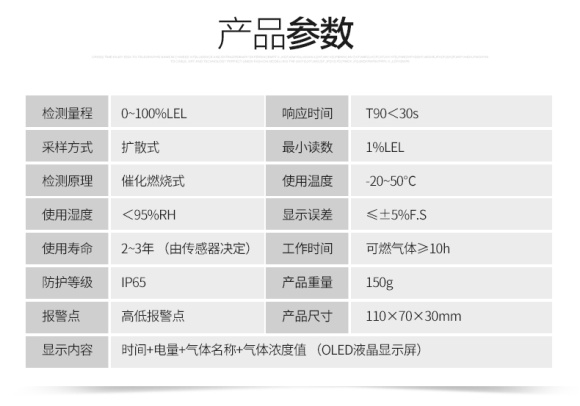

DuoRui DR-650-LEL Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| EX-range | 0~100%LEL |
| Error of indication | ±5%FS |
| Sampling method | diffusion |

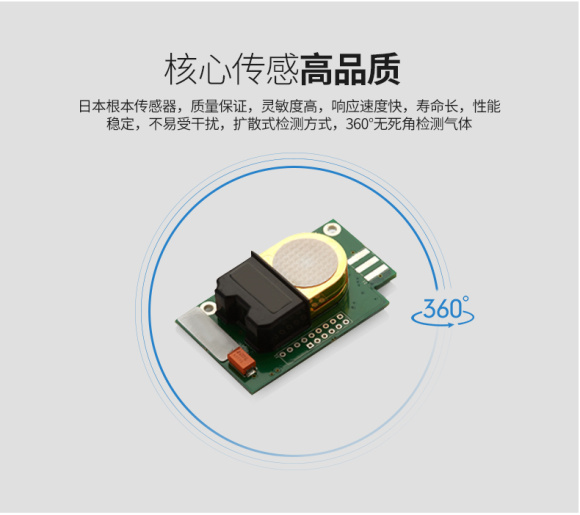

| Sensors principle | Catalytic combustion |
| EX- resolution | 0.1%LEL、1%LEL |
| Response time | T90≤60s |
| Shell material | Engineering Plastics |
| Operating temperature | -20~50℃ |
| Environmental humidity | 0~95% RH non-condensation |
| service life | 2-3 years (depending on the environment) |
| display language | Chinese + English + Numbers |
| Dimensions | 110*70*30mm |
| Operating Time | Fully charged and can work continuously for more than 10h |

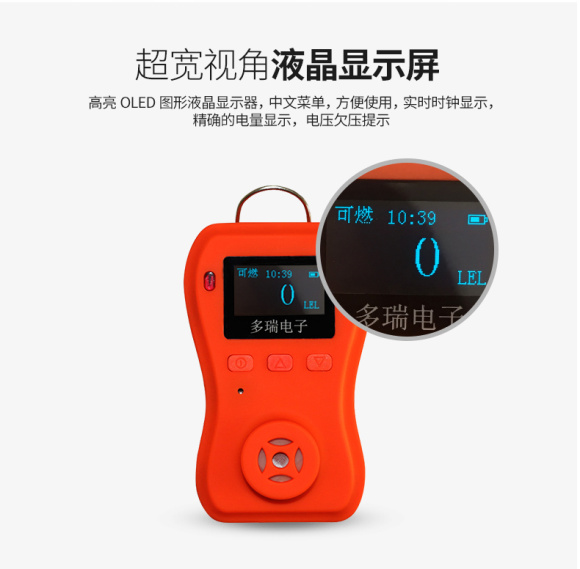

| Display | LCD screen |
| display content | Gas name, Measured value, Time, Electricity |

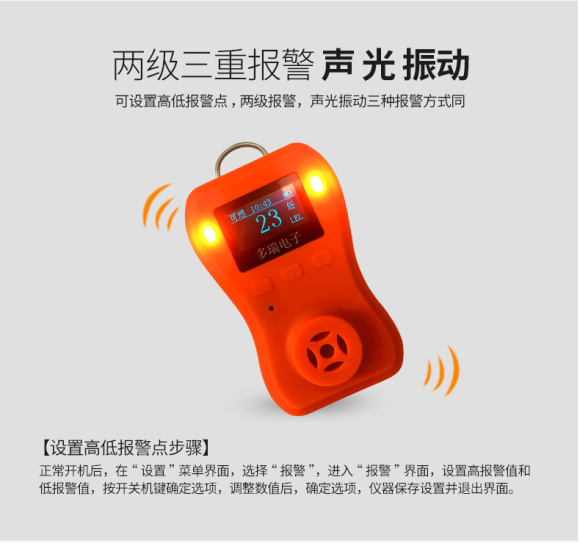

| Alarm mode | Sound and light alarm, vibration alarm |
| Explosion-proof sign | Ex d IIC T3Gb |
| security certification | CMC |
| alarm point | High/low alarm point |
| Power Supply | Built-in lithium battery |

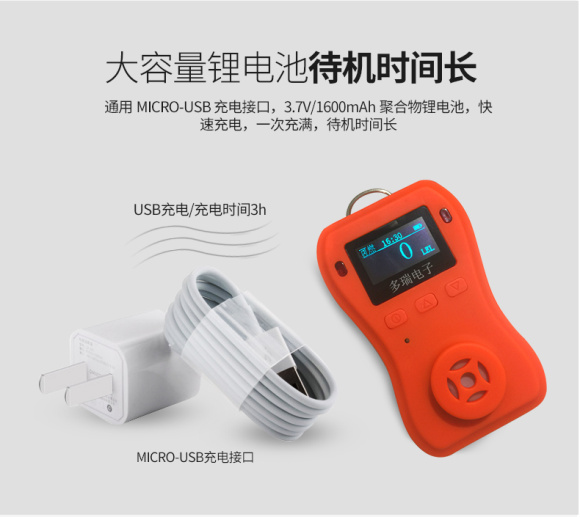

| Battery Specifications | 3.7v/1600ma |
| Power Supply | Rechargeable |
| Weight | 150g |

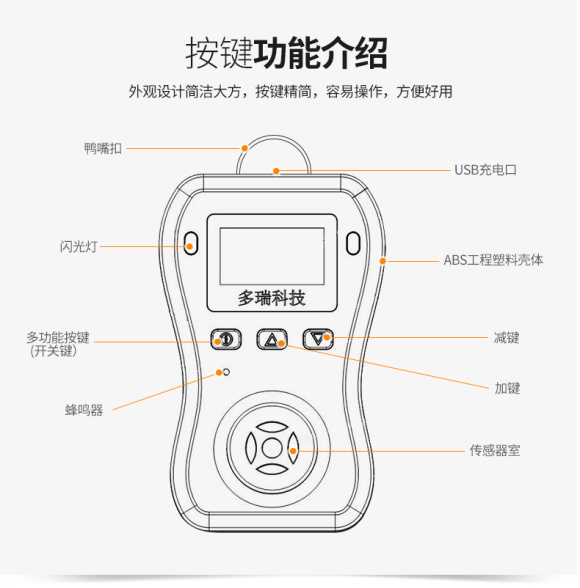

| Operation mode | key |
DuoRui DR-650-LEL Gas Detector Packing list
whole machine X1, manual X1, certificate X1, warranty card X1, third-party inspection report X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
