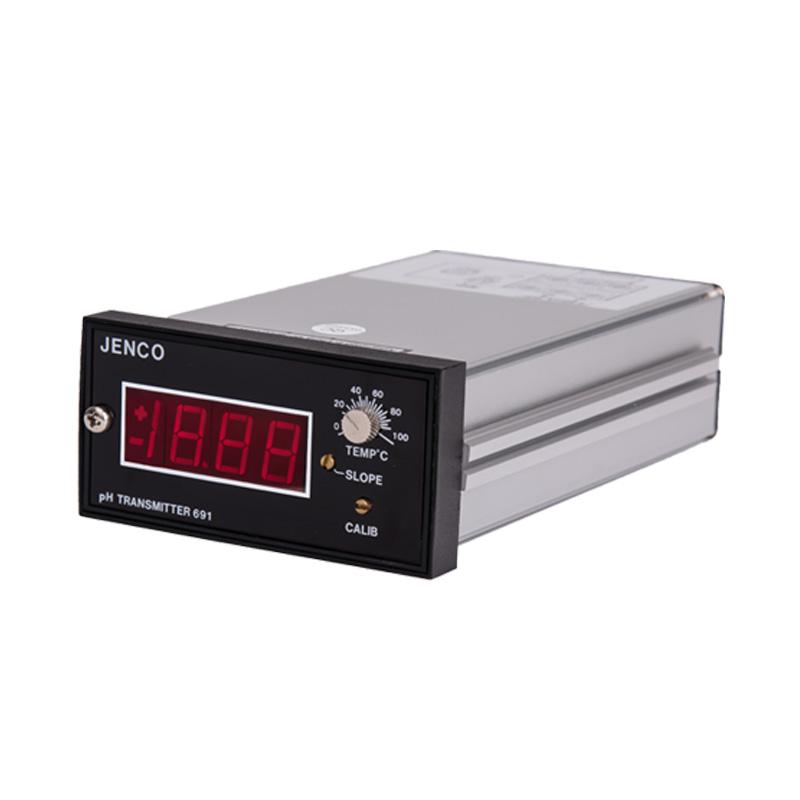

JENCO 691 online acid alkalinity transmitter
Isolated 4~ 20mA output, 0~14/0.01 pH, LED display, manual temperature compensation 0~100 ℃
JENCO
691
-
LEICI 232-01 Reference electrode Calomel electrode Temperature range 5~ 55 ℃
$ 86.00 -
LEICI 962103 Open pH composite electrode for common water samples and general pollution samples
$ 240.00 -
BANTE A130-UK Laboratory pH Meter Acid alkalinity Detector
$ 626.00 -
PH828 + pen pH meter
$ 111.00 -
LEICI 962243 Extra long pH composite electrode for bulk container samples
$ 242.00

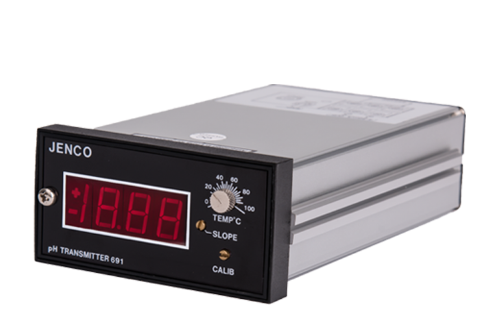

Introducing the JENCO 691/692 In-Line pH Transmitter
Standard 1/8 aluminum case body
LED Display(691)LCD Display(692)
(691 general and extended two modes) 4~20mA isolated current output
Temperature compensation function (691-manual temperature compensation/692-automatic temperature compensation)
Affordable pH transmitters
Model 691/692 Industrial In-Line pH Transmitter Optional Accessories
| Optional | ||
| pH electrode | IP-600-1 | Wastewater treatment with high turbidity |
| IP-600-10 | General wastewater treatment field | |
| IP-600-9（PT） | General wastewater treatment field (used in conjunction with 692) | |
| Sheath tube | IP-600-9PT | 1 meter tube length |
| Sealed box | IP-600-1NPT | Dial-mounted |
| IP-600-3CNPT | Wall-mounted | |
JENCO 691 Online acid alkalinity transmitterSpecifications
| LIST | VALUE |
|---|---|
| PH range | 0.00~14.00pH |
| PH Measurement Accuracy | ±0.1% |
| Resolution | 0.01pH |
| Impedance | >10^12Ω |
| Power Supply | 230VAC,50/60Hz |
| Dimensions | 96*48*167mm |
| Current output range | 4~ 20mA isolated current output |
| opening size | 92*45mm |
| Display | LED |
| Shop Accessories | pH electrode, sheath, sealing box |
JENCO 691 Online acid alkalinity transmitter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
