JENCO 6TX online pH oxidation reduction transmitter
JENCO 6TX online pH oxidation reduction transmitter PH Measurement range -2.00~16.00pH, PH Measurement accuracy +/- 0.01pH, resolution 0.01pH, ORP Measurement range -1000~1000mV, ORP resolution 1mV, ORP Measurement accuracy +/- 1mV
Brand
SKU: NB002969
JENCOModel
6TX (set)
VS
What else did others buy
-
DDKSIC PH100 Laboratory pH Meter pH/mV (ORP electrode optional)/℃
$ 307.00 -
DDKSIC PH10 Color Screen Portable pH Meter pH/mV (ORP electrode optional)/℃
$ 462.00 -
YUEPING PHS-3CU acidity meter Measurement range (-2.00~19.99) pH temperature (0.0~80.0) ℃
$ 228.00 -
Shima AS218 PH value Detector 0.00~14.00
$ 150.00 -
LEICI T-818-B-6 temperature electrode
$ 125.00
Genuinegoods

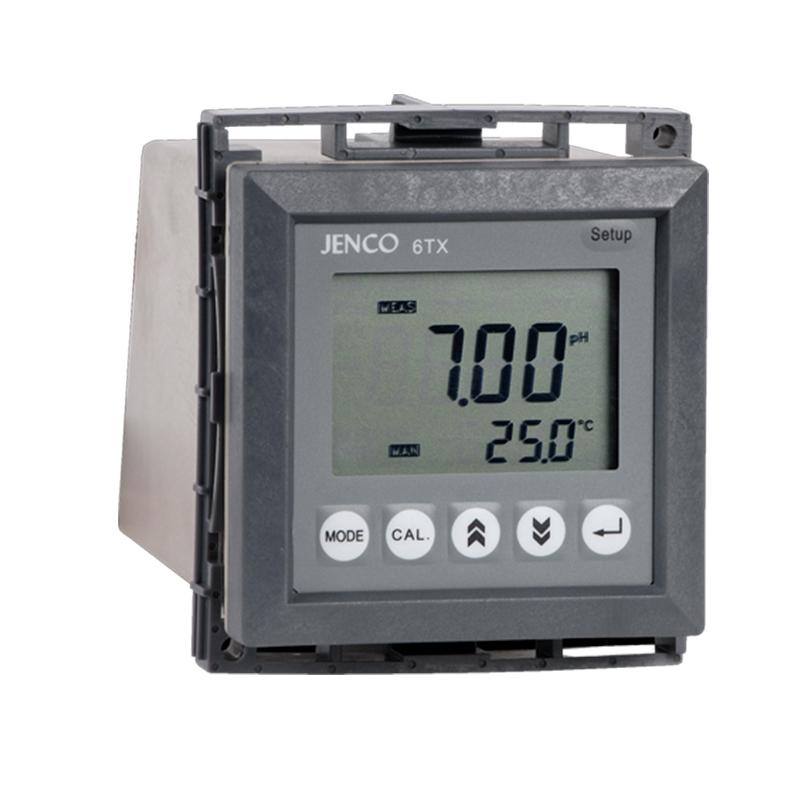

Overview of the JENCO 6TX On-Line pH Redox Transmitter
Standard 1/4 DIN waterproof body design
LCD display, can display pH value, ORP value, temperature value at the same time
4~20mA with isolated current output
pH has automatic/manual temperature compensation
Power-off correction value memory function
12~36VDC power supply
Model 6TX Industrial In-Line pH/Redox (ORP) Transmitter Optional Accessory
| Model | Introduction |
| ST873 | High temperature field |
| IP-600-1 | Biological fermentation at room temperature and wastewater treatment with high turbidity |
| IP-600-10 | General wastewater treatment field |
| IP-600-9(PT) | With temperature compensation, in the field of general wastewater treatment |
| IR-500-9N | General wastewater treatment field |
| IR-500-8 | General wastewater treatment field |
| Sheath tube | |
| 009A | 1 meter tube length |
| Sealed box | |
| 011-200-00 | Dial-mounted |
| 012-200-00 | Wall-mounted |
VS
JENCO 6TX (set) pH oxidation reduction transmitterSpecifications
| LIST | VALUE |
|---|---|
| PH range | -2.00~16.00pH |
| PH Measurement Accuracy | ±0.01pH |
| Resolution | 0.01pH |
| Measurement range | -10.0~120.0℃ |
| Impedance | >10^13Ω |
| Power Supply | 12 ~ 36 V DC |
| Weight | 600grams |
| Measurement range mV | -1000~1000mV |
| mV resolution | 1mV |
| Measurement Accuracy of mV | ±1mv |
| Measurement range | 10.0~120.0℃ |
| Temperature Resolution | 0.1℃ |
| Measurement Accuracy | ± 0.3 ℃ |
| pH buffer recognition | US (4.01, 7.00, 10.01) or NIST (4.00, 6.86, 9.18) users can choose |
| pH electrode zero correction range | ± 90 mV |
| pH electrode slope (slope) identification | ±30% |
| input selection | Users can choose between pH and ORP. |
| Current output range | 4 - 20 mA (insulation), programmable design |
| Environmental temperature | 0~50℃ |
| Shell material | Case IP 65, 1/4 DIN case, depth 148 mm |
| Temperature compensation method | Automatic or manual operation |
JENCO 6TX (set) pH oxidation reduction transmitter Packing list
Host X1, IP-600-9TH (5 meters) X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
