JENCO 6313 online pH oxidation reduction controller pH/ORP test

Isolation 4~ 20mA, -2~ 16/0.01 pH, automatic temperature compensation -10.0~120 ℃, two sets of relays control 4000.00 (single machine)

Brand

SKU: NB002975

JENCO

Model

6313

Get Quote

JENCO shopSE

Information

Datasheet Catalog Manual

What else did others buy

Genuinegoods

JENCO 6313 pH oxidation controllerOverview
Specifications
Comments
FAQs

6313

pH oxidation controller

Isolation 4~ 20mA, -2~ 16/0.01 pH, automatic temperature compensation -10.0~120 ℃, two sets of relays control 4000.00 (single machine)

Introduction

ONLINE PH/ORP MEASURING INSTRUMENT, A VERY CLASSIC ONLINE PH/ORP MEASURING INSTRUMENT. Relay control function, 4-20mA output. It is widely used in sewage treatment plants, enterprise production lines.

Features

Standard 1/4DIN waterproof body design
Liquid crystal display, which can display pH (ORP) and temperature values at the same time
4~20mA reversible, with isolated current output, user-configurable
Two sets of relay control, control point, hysteresis width can be set by the user
Automatic temperature compensation for self-selectable temperature probe (PT1000, TH10K, BALCO3K)
Correction value power-off memory function
The products have passed CE certification

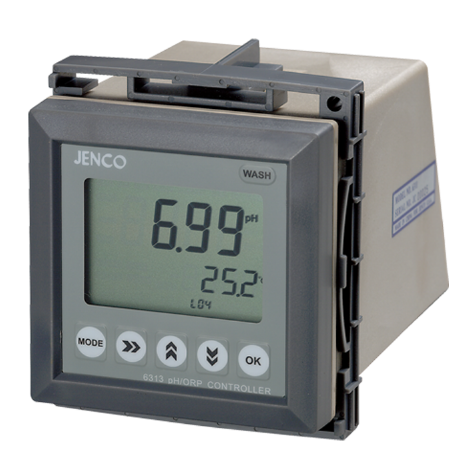

JENCO 6313 in-line pH redox controller

Optional

pH electrode

Model	Introduction
IP-600-9TH	General wastewater treatment (can be used below 70°C for a long time)
ST873	High-temperature field (can be used below 105°C for a long time)
IP-600-1NTH	General wastewater treatment (can be used below 90°C for a long time)
IP-600-3CNTH	Pure water pH composite electrode (pure water, ultrapure water measurement)

Redox electrodes

Model	Introduction
IR-500-8	General water treatment field
IR-500-9	General water treatment field

Sheath tube

Model	Introduction
Sheath tube	009A

Sealed box

Model	Introduction
011-200-00	Dial-mounted
012-200-00	Wall-mounted

JENCO 6313 pH oxidation controllerSpecifications

LIST	VALUE
PH range	-2.00~16.00pH
Measurement Accuracy	+/- 0.1% +/- 1 word
Resolution	0.01pH
Power Supply	110或230VAC,50/60Hz
Dimensions	9696148mm
PH standard solution	US (4.01, 7.00, 10.01) or (4.00, 6.86, 9.18) user-selected, automatic two-point correction
Data storage for pH correction	Yes.
Current output range	A set of 4~ 20mA reversible, isolated current outputs
Insulation Voltage/maximum load	1000VDC/550Ω
opening size	92*92mm
protective measures	4-Digit password protection
Relay Control Output/Maximum Load	Two sets of ON/OFF control in the system 2.5A/230VAC
Measurement range mV	-2500~2500mV
mV resolution	1mV
Measurement Accuracy of mV	±0.1%F.S
Measurement range	-10.0~120.0℃
Temperature Resolution	0.1℃
Measurement Accuracy	±0.3℃
Shop Accessories	PH electrode, ORP electrode, mounting bracket, sealing box

JENCO 6313 pH oxidation controller Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How to choose this electrode?

[A]

See what the pH value is on site, how high the water temperature is, generally room temperature sewage, you can choose the standard electrode IP-600-15N, you can also choose IP-600-10, these two are standard, room temperature sewage electrode

[Q]

How to choose this electrode

[A]

See what the pH value is on site and how high the water temperature is It is usually room temperature sewage.

[Q]

Can this pH oxidation reduction controller be applied to GB/T11165?

[A]

[Q]

Do you have the temperature probe for the pH oxidation reduction controller jenco6313?

[A]

Hello, yes, there are three models of temperature probes: PT1000, TH10K, and BALCO3K.

[Q]

Can Ren's 6313 test the pH value? What is the range?

[A]

Hello, Ren's 6313 can test the pH or ORP value at the same time. The pH value range is -2.00~ 16.00pH, and the ORP value range is -2500mV~ 2500mV.
