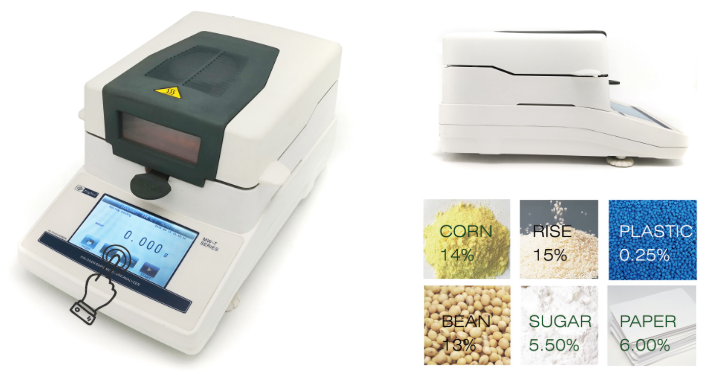

XINYUN XY-100MW-T Touch Moisture Analyzer Moisture readability 0.01%
Weighing 110g, weighing reading accuracy 0.001g, moisture readability 0.01%, automatic heating, four-layer stainless steel heating interior compartment, can display moisture percentage, dry weight percentage, dry weight weight.
XingYun-
CNSHP LHS-16A Electronic Moisture Analyzer Maximum Measured value: 100g
$ 633.00 -
HENGZHENG YLS16B Halogen Moisture Meter, weighing value: 50g accuracy 1mg
$ 377.00 -
Halogen Moisture Analyzer JHY-150E Touch Screen Moisture Analyzer 150g/0.01%
$ 469.00 -
XINYUN XY-100MS Moisture Analyzer
$ 1825.00 -
JINGHAI DHS-16 Electronic halogen Moisture Analyzer 110g/0.005g
$ 388.00

Features
1. The double-drive ultra-quiet opening of the fully automatic heating cabin door prevents the impact of manual lifting on the weight and meets the requirements for automatic testing;
2. 5-inch high-definition smart touch screen, real-time dynamic analysis of the curve, direct display of moisture percentage/dry weight percentage/dry weight;
3. The limit heating temperature of 230°C meets the test of most samples;
4. The sample is effectively placed in the heating chamber at a height of 23cm;
5. Visual window for sample testing, real-time monitoring of sample testing changes;
6. 20 sets of effective storage addresses, meeting the test settings for different samples;
7. 20 sets of recent test records, which can be retrieved and printed at any time;
8. It can meet the maximum weighing of 110g;
9. Imported HBM load cell;
10. The four-layer stainless steel heating inner cabin improves the efficiency of sample testing;
XingYun XY-100MW-T Moisture AnalyzerSpecifications
| LIST | VALUE |
|---|---|
| Maximum weighing value | 110g |
| Weighing readability | 0.001g |
| operating temperature | 5~35℃ |
| Pan Size | Φ90mm |
| Heating source | Halogen lamp |
| Temperature transducer | PT 100 |
| Heating temperature range | 40~199℃ |
| Temperature adjustment Accuracy | 1℃ |
| Moisture range | 0.00~100.00% |
| Water readability | 0.01% |
| Drying remaining range | 100.00%~0.00% |
| Drying readability | 0.01% |
| Heating temperature range | 40~199℃ |
| Timer | 1~99min |
| Storage address | 20 |
| history | 20 |
| Balance section | Input: 220V 50HZ Output:9V |
| Packaging Dimensions | 360*490*350mm |
| Heating cabin height | 22mm |
XingYun XY-100MW-T Moisture Analyzer Packing list
Moisture meter X1, aluminum sample tray X1 box (50 pieces), triangular weighing frame X1, pan bracket X1, windshield X1, stainless steel pallet X1, 100g weight X1, power cord X1, manual, certificate, warranty card
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
