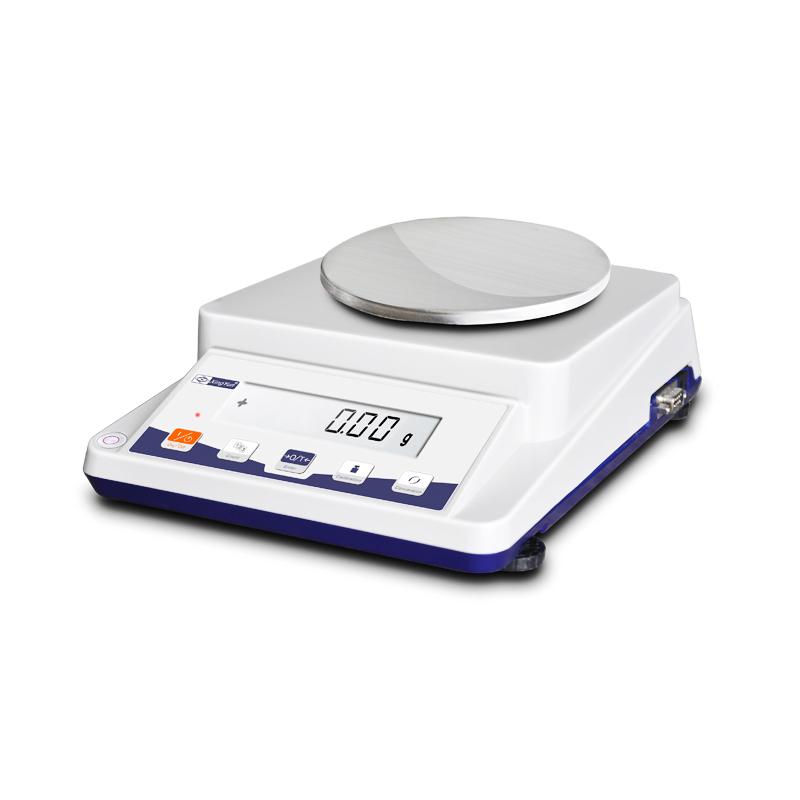

XINYUN XY3002CS Textile balance 310g/0.01g External Calibration
XINYUN Textile balance XY3002CS weighs 310g and features an externally calibrated and LCD-backlit LCD display. The XY3002CS features 7 different Textile units with batteries.
XingYun-
FA2004N Electronic Balance 200g/0.1mg
$ 460.00 -
Shangtian Jingyi JA1003 1/1000 Electronic Balance Analytical Balance 100g/1mg
$ 442.00 -
SDPTOP JA31002 Electronic Precision Balance 3100g0.01g
$ 699.00 -
HUAZHI PTX-6102 One percent analytical balance 6200g/0.01g
$ 1387.00 -
HUAZHI PTY-3202/4202 Professional Precision Balance Maximum Weighing: 3200g/4200g
$ 1442.00
Features
There are seven textile unit conversions: ounce (OZ), number (Tex), public count (Nm), English count (Ne), denier (D), gram/square meter (g/m2), ounce / square yard (oz/yd2);
It is suitable for testing all kinds of yarns, filaments and fabrics. It has independent appearance design and colorful plastic shell, which is fashionable and exquisite;
High-precision sensor, accurate and stable weighing;
Equipped with batteries to achieve AC and DC dual-use;
LCD with backlight liquid crystal display, five-key operation, easy weighing, intuitive display;
The front level bubble makes it easier to adjust the level;
With weighing, tare, counting, unit conversion and other functions.
product configuration
External calibration, LCD with backlight liquid crystal display, adjustable minimum weighing, front level bubble, rechargeable battery, weighing unit conversion (gram, carat, ounce, pound), full scale tare, counting function, overload alarm.
Comparison of parameters of XY-2C precision electronic balance
| model | XY200-2CS | XY300-2CS | XY500-2CS | XY1000-2CS |
| scope | 210g | 310g | 510g | 1100g |
| Accuracy | 0.01g | |||
| repeatability | ±0.03g | |||
| Linear | ±0.05g | |||
| Response time | 3sec | |||
| Calibration weight | 200g | 500g | ||
| Ambient temperature | +5...+35℃ | |||
| Optional sensitivity is elegant | ±3ppm/℃ | |||
| Pan size | Φ130mm | |||
| Operating Voltage | 220V/60Hz | |||
| Optional | RS232 | |||
| net weight | 2.5KG | |||
| gross weight | 3KG | |||
| Dimensions | 270*195*85mm | |||
XingYun XY3002CS Spinning & weaving balanceSpecifications
| LIST | VALUE |
|---|---|
| Weighing range | 310g |
| precision | 0.01g |
| Repeatability Error | ±0.03g |
| linear | ±0.05g |
| Response time | 3sec |
| Calibrated Weight | 200g |
| Operating conditions temperature | +5...+35℃ |
| Optional Sensitivity Elegant | ±3ppm/℃ |
| Pan size | F130 mm |
| Working Voltage | 220V/60Hz |
| Accessories | RS232 |
| Net Weight | 2.5KG |
| Gross Weight | 3KG |
| Dimensions | 270*195*85mm |
XingYun XY3002CS Spinning & weaving balance Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
