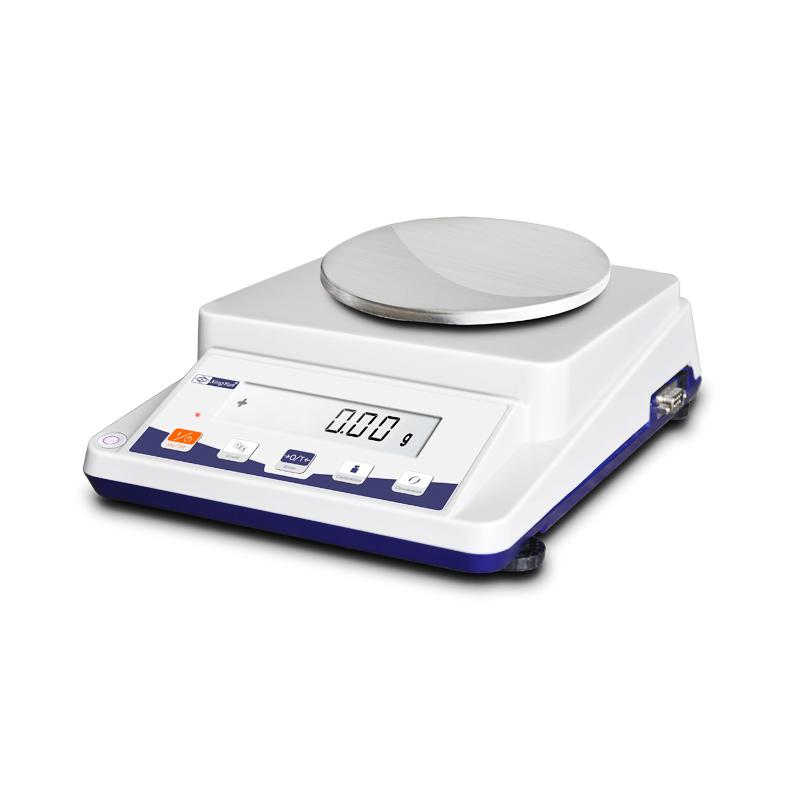

XINYUN XY10002CS Textile balance 1100g/0.01g External Calibration
XINYUN XY10002CS Textile balance range 1100g, accuracy 0.01g, sexual repeability ± 0.03g, linear ± 0.05g, XY10002CS has seven kinds of Textile unit conversion, equipped with battery.
XingYun-
AB523 Electronic Balance Laboratory Balance 520g/1mg
$ 735.00 -
Electronic Balance Tianma FA3204B 320g/0.1mg Internal calibration
$ 860.00 -
AB125 parts per 100,000 Electronic Balance 120g external calibration
$ 3179.00 -
HUAZHI PTQ-A2 Large Range Electronic Balance Dual Range: 2kg/3kg
$ 369.00 -
JINGQI JA2203N Electronic Balance 220g/1mg
$ 403.00
Features
There are seven textile unit conversions: ounce (OZ), number (Tex), public count (Nm), English count (Ne), denier (D), gram/square meter (g/m2), ounce / square yard (oz/yd2);
It is suitable for testing all kinds of yarns, filaments and fabrics. It has independent appearance design and colorful plastic shell, which is fashionable and exquisite;
High-precision sensor, accurate and stable weighing;
Equipped with batteries to achieve AC and DC dual-use;
LCD with backlight liquid crystal display, five-key operation, easy weighing, intuitive display;
The front level bubble makes it easier to adjust the level;
With weighing, tare, counting, unit conversion and other functions.
product configuration
External calibration, LCD with backlight liquid crystal display, adjustable minimum weighing, front level bubble, rechargeable battery, weighing unit conversion (gram, carat, ounce, pound), full scale tare, counting function, overload alarm.
Comparison of parameters of XY-2C precision electronic balance
| model | XY200-2CS | XY300-2CS | XY500-2CS | XY1000-2CS |
| scope | 210g | 310g | 510g | 1100g |
| Accuracy | 0.01g | |||
| repeatability | ±0.03g | |||
| Linear | ±0.05g | |||
| Response time | 3sec | |||
| Calibration weight | 200g | 500g | ||
| Ambient temperature | +5...+35℃ | |||
| Optional sensitivity is elegant | ±3ppm/℃ | |||
| Pan size | Φ130mm | |||
| Operating Voltage | 220V/60Hz | |||
| Optional | RS232 | |||
| net weight | 2.5KG | |||
| gross weight | 3KG | |||
| Dimensions | 270*195*85mm | |||
XingYun XY10002CS Spinning & weaving balanceSpecifications
| LIST | VALUE |
|---|---|
| Weighing range | 1100g |
| precision | 0.01g |
| Repeatability Error | ±0.03g |
| linear | ±0.05g |
| Response time | 3sec |
| Calibrated Weight | 500g |
| Operating conditions temperature | +5...+35℃ |
| Optional Sensitivity Elegant | ±3ppm/℃ |
| Pan size | F130 mm |
| Working Voltage | 220V/60Hz |
| Accessories | RS232 |
| Net Weight | 2.5KG |
| Gross Weight | 3KG |
| Dimensions | 270*195*85mm |
XingYun XY10002CS Spinning & weaving balance Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
