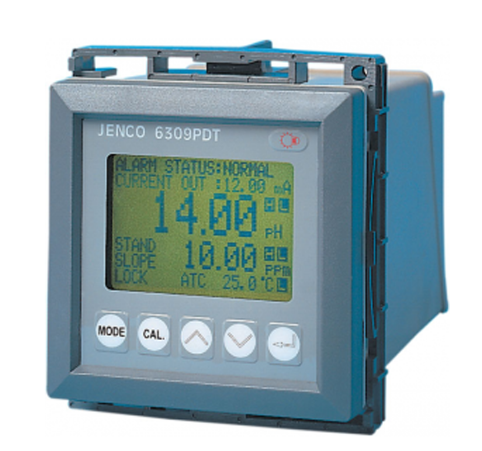

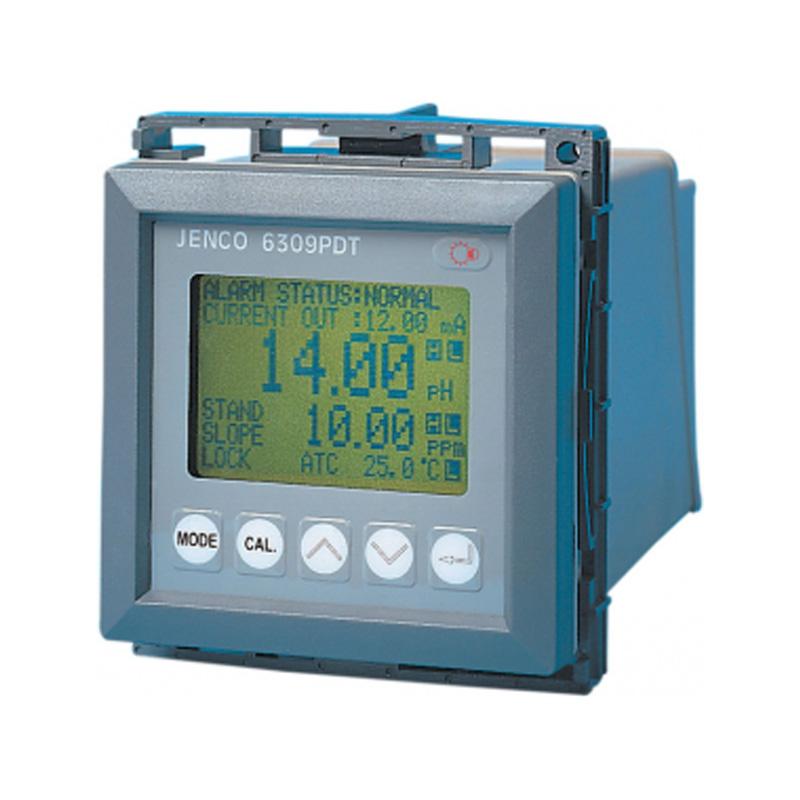

JENCO 6309PDT pH dissolved oxygen temperature controller -2.00~16.00pH

JENCO 6309 pH dissolved oxygen temperature controller pH range of -2.00~16.00pH, is an online pH, DO, temperature analyzer, JENCO 6309 has automatic temperature compensation function, widely used in swimming pool measurement, sewage measurement.

Brand

SKU: NB002977

JENCO

Model

6309PDT

Get Quote

JENCO shop

Information

Datasheet Catalog Manual

What else did others buy

Genuinegoods

JENCO 6309PDT pH dissolved oxygen temperature controllerOverview
Specifications
Comments
FAQs

6309PDT

pH dissolved oxygen temperature controller

Introduction

JENCO 6309PDTF On-line pH, DO, Temperature Analyzer. 1/4 DIN, IP-65 spec, panel mount pH/DO/temperature analysis, 2-wire 4-20mA current output, 2 programmable switching relays, RS-485 output, backlight function.

Features

Standard 1/4DIN waterproof body design
128x64 dot matrix backlit LCD display, which can display pH, dissolved oxygen value and temperature value at the same time
pH electrode efficiency display
4~20mA reversible, with isolated current output, the output range can be set by the user
Two sets of pH relay control / two groups of dissolved oxygen relay control / one set of temperature relay control
The control point/hysteresis width can be set by the user
It has the function of automatic temperature compensation
Power-off correction value memory function
RS-485 communication interface is adopted
The products have passed CE certification

Optional

Model		Introduction
pH electrode	IP-600-1	Wastewater treatment with high turbidity
	IP-600-10	General wastewater treatment field
Dissolved oxygen electrodes	OXYSENS 120	Sewage and aquaculture fields
Sheath tube	009A/B	1 meter tube length
Sealed box	011-200-00	Dial-mounted
	012-200-00	Wall-mounted

JENCO 6309PDT pH dissolved oxygen temperature controllerSpecifications

LIST	VALUE
PH range	-2.00~16.00pH
PH Measurement Accuracy	±0.01pH
Resolution	0.01pH
Power Supply	110或230VAC,50/60Hz
Dimensions	9696148mm
DO range	0.00~60.00ppm, 0~500.0%
DOS resolution	0.01ppm(1%)
DO Accuracy	±0.2%F.S.
Measurement range	-10.0~120.0℃
Temperature Resolution	0.1℃
Measurement Accuracy	±0.3℃
4~ 20mA current output	4~ 20mA reversible, isolated current output
Dissolved oxygen salinity compensation range	0-49.9ppt
Dissolved oxygen pressure compensation range	600-1100mbar
Insulation Voltage/maximum load	500VDC/550Ω
protective measures	4-Digit password protection
Preset amplifier Voltage output	+/- 5VDC, maximum output current 20mA
opening size	92*92mm
Shop Accessories	PH electrode, mounting bracket, sealing box

JENCO 6309PDT pH dissolved oxygen temperature controller Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
