TIME7212 Vibration Meter (formerly TV120) Measured objects Motor, compressor, bearing and other swirling/spinning equipment

TIME7212 VibratIon Meter Displacement measurement range 0.001~ 1.999mm, speed measurement range 0.1~ 199.9mm/s, Acceleration measurement range 0.1m/s ², Data storage 100 groups

Brand

SKU: NB000300

TIME

Model

TIME7212

Get Quote

TIME

Information

Datasheet

What else did others buy

Seema AS63A high-precision vibratIon Meter, acceleration 0.1~ 199.9m/s2

$ 162.00
3D three-axis vibration instrument AMITTARI AV-160D simultaneous measurement of three-axis or single-axis vibration parameters

$ 658.00
Hypertherm CZ-S VibratIon Meter, miniature vibration Measurement Instrument

$ 394.00
DUBAN DB22-VM260A16 Vibrator, displacement D 0.001~ 16.0mm

$ 677.00
LANDTEK VM-6370 Vibration Meter (Enhanced)

$ 452.00

Genuinegoods

TIME TIME7212 VibratIon MeterOverview
Specifications
Comments
FAQs

TIME7212

VibratIon Meter

Introduction

The Beijing Times TIME7212 vibratIon Meter can ensure measurement sensitivity and measurement stability at the same time, and has an automatic alarm indication function for over-limits. The Beijing Times vibratIon Meter has a large storage space and can store 100 measurement values.

Specifications

model	TIME7212 (formerly TV120)
Measuring range - acceleration	0.1m/sÂ² (peak value)
Measuring range - speed	0.01cm/s~19.99cm/s (effective value)
Measuring range - displacement	0.001mm~1.999mm (peak value)
Measurement object	Motors, compressors, bearings and other rotating equipment
Measurement parameters and units	Acceleration (m/sÂ²), speed (cm/s), displacement (mm)
Resolution-Acceleration	0.1m/sÂ²
Resolution-Speed	0.01cm/s
Resolution-Displacement	0.001mm
Indication error	â¤Â±5%
data storage	100 groups
Operating Voltage	6V
Charging time	â¤132min
Charger	Input 220v/AC, 50Hz; output 12V/DC, 600mA
Continuous working time (non-printing state)	>16 hours
ambient temperature	0℃~40℃
Relative Humidity	<90%RH
Dimensions	230Ã84Ã33 (mm)
weight	About 600g
basic configuration	Host, sensor, magnetic holder, charger
Optional	Probe assembly (including probe)

Features and advantages

â Convenient and fast key combination calibration mode

â Can store 100 sets of measurement values

â While ensuring measurement sensitivity, it also improves measurement stability.

â Used for quick inspection of motors, fans, pumps, compressors, machine tools and other equipment and preventive inspection of rotating machinery equipment failures.

â With over-limit automatic alarm indication function

â With under Voltage indication function

â With date and time setting function

â Date and measurement values ââcan be printed for easy archiving and recording

â Can store 100 measured values

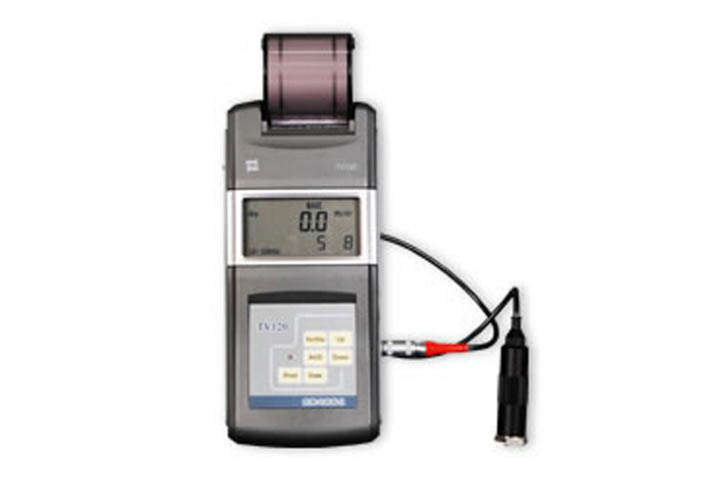

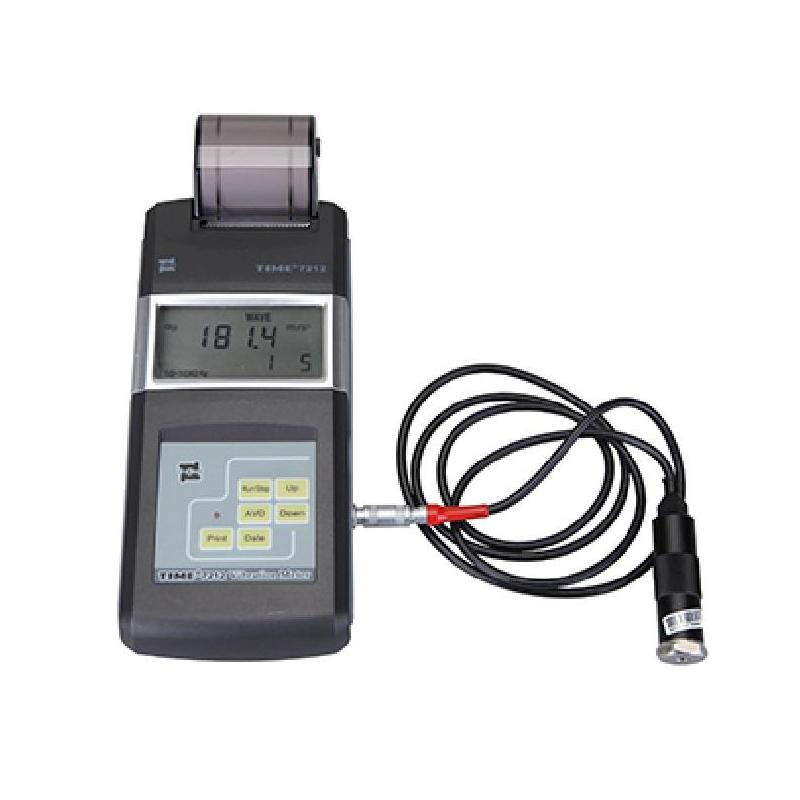

Product actual pictures

Actual pictures of Beijing Times TIME7212 vibrometer

TIME TIME7212 VibratIon MeterSpecifications

LIST	VALUE
Displacement Measurement Range	0.001~1.999mm
Speed Measurement Range	0.1~199.9mm/s
Acceleration Measurement Range	0.1m/s²
Operating temperature	0~40℃
Relative Humidity	<90%RH
output	12V/DC，600mA
Dimensions	2308433mm
Power	Input 220v/AC, 50Hz; Output 12V/DC, 600mA
Weight	Approx. 600g
Optional accessories	Probe assembly (including probe)
Measured object	Motors, compressors, bearings and other swirling/spinning equipment
Measurement parameters and units	Acceleration (m/s ²), speed (m/s), displacement (mm)
displacement resolution	0.1m/s²
Error of indication	≤±5%
Data storage	100 groups
Operating Voltage	6V
Charging time	≤132min
Working time (non-printing)	> 16 hours

TIME TIME7212 VibratIon Meter Packing list

Host x1, Sensors x1, magnetic suction seat x1, charger x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
