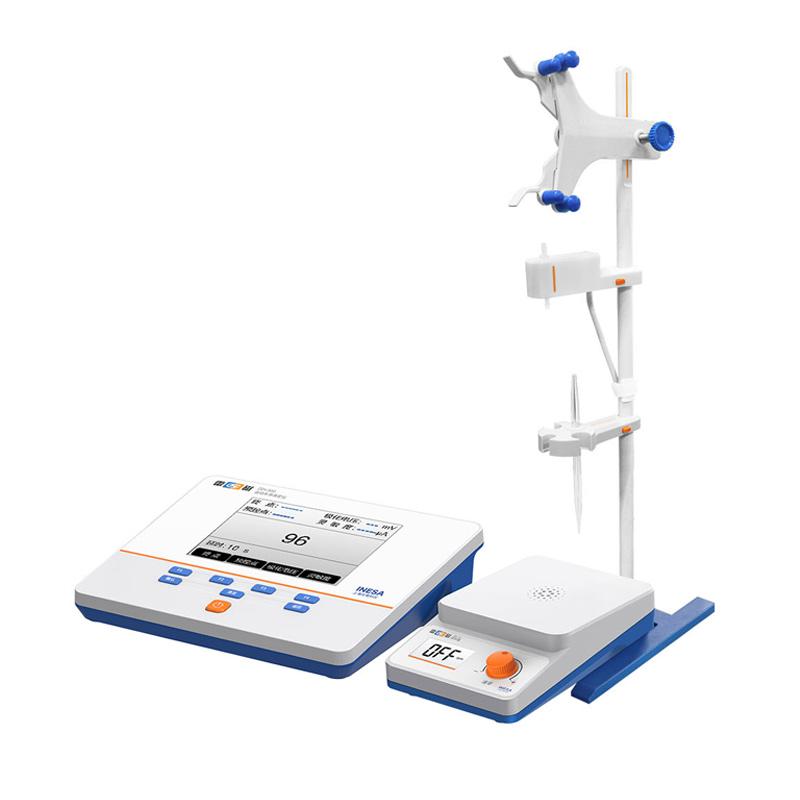

LEICI ZDY-500 Automatic Permanent Stop Titrator
LEICI automatic permanent stop Titrator ZDY-500 is suitable for diazotization measurement, with polarization Voltage selection, endpoint setting selection, detection sensitivity selection function, ZDY-500 permanent stop Titrator titration range (0~10) mL, (0~25) mL.
LeiCi
ZDY-500
Introduction
The ZDY-500 automatic permanent stop titrator is suitable for diazotization assay determination of endpoint indication and other tests that require permanent stop titration. Note that these reactions need to be of the following type: before the endpoint, the current on the electrode is small; After reaching the end point, a large current surge is generated.
Features
Liquid crystal display, with manual and automatic titration function;
It has the functions of polarization Voltage selection, endpoint setting selection, and detection sensitivity selection;
The current detection sensitivity is divided into four levels: 10-9A, 10-8A, 10-7A, and 10-6A to adapt to different chemical analysis.
LeiCi ZDY-500 Automatic Permanent Stop TitratorSpecifications
| LIST | VALUE |
|---|---|
| Polarization current detection error | ±2% FS |
| Volume analysis Repeatability Error | ±0.2%FS |
| Polarization Voltage setting | 30mV、50mV、100mV |
| Sensitivity settings | 0.001µA、0.01µA、0.1µA、1µA |
| endpoint setting | 0-100 |
| preset point setting | 0~100 |
| Delay setting | (0～200)s |
| Burette Volume | 10mL，25mL |
| Measured solution temperature | (5～30)℃ |
| Power Supply | Power adapter (input AC: 100V~ 240V, output: DC24V) |
| Size (mm), Weight (kg) | 218×180×66，1.0 |
LeiCi ZDY-500 Automatic Permanent Stop Titrator Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
