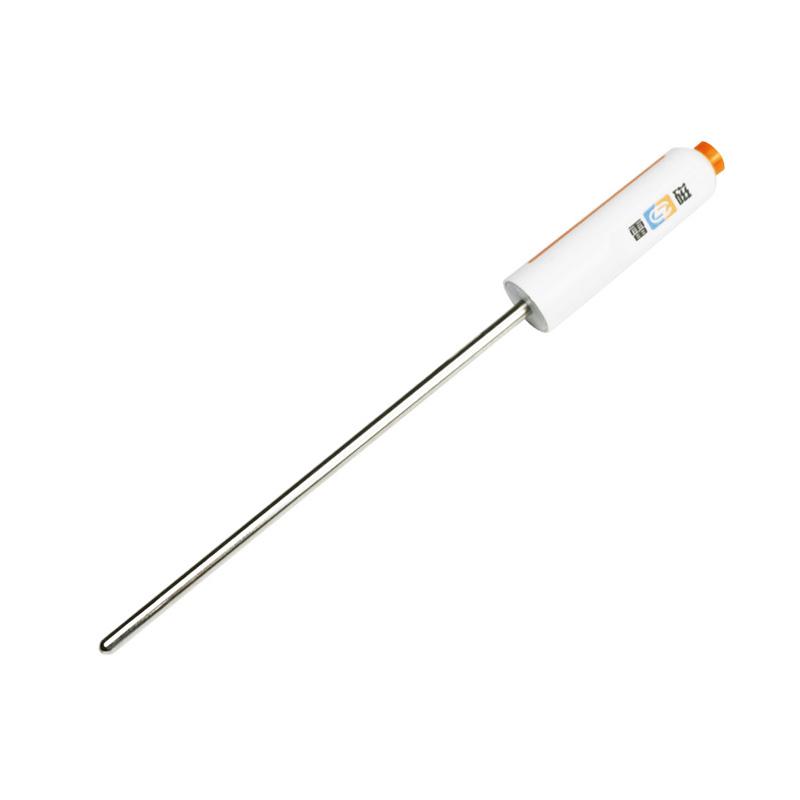

LEICI T-820D temperature electrode
LEICI T-820D temperature electrode technical parameters 0-100 ℃, supporting instruments J-5, 226, electrode plug BNC (Q6 type).
Brand
SKU: NB030608
LeiCiModel
T-820D
Price
$ 125.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
-
Qi Wei, plastic case electrode with industry online pH meter use, temperature range 0~60 ℃
$ 97.00 -
LEICI 320 reference electrode
$ 86.00 -
BANTE E65-1-BNC universal pH electrode for measurement of high temperature or weak corrosion samples
$ 103.00 -
LEICI 218 reference electrode silver/silver chloride single salt bridge
$ 88.00 -
PHS-3C laboratory acidity meter pH value/mV (ORP)
$ 173.00
Genuinegoods
| Model Name | Specifications | Supporting instruments | Electrode plug |
| T-817-B-6 type temperature electrode | 0-100℃ | DWS-295-1 | BNC (Q6 type) |
| T-818-A-6 type temperature electrode | 0-100℃ | PHS-3B | BNC (Q6 type) |
| T-818-B-6 type temperature electrode | 0-100℃ | J-4A, J-4F, 295, 3F, 3E, 307A, 708, 706, 296, 216, 216F, 308A, 308F, 318, | BNC (Q6 type) |
| T-820D type temperature electrode | 0-100℃ | J-5, 226 | BNC (Q6 type) |
| T-818-B-4F temperature electrode | 0-100℃ | DZB-718, DZB-712 | Small four-core aviation plug (waterproof type) |
| T-818-B-6F temperature electrode | 0-100℃ | DDBJ-350 | BNC (Q6 waterproof type) |
| T-818-L type temperature electrode | 0-100℃ | L series products | Mini-DIN 6 core |
VS
LeiCi T-820D Temperature electrodeSpecifications
| LIST | VALUE |
|---|---|
| Temperature Measurement Range | 0-100℃ |
| Temperature transducer | PT1000 |
| Shell material | 316 stainless steel |
| Dimensions | Φ4×120 mm |
| Connector | BNC(Q6) |
LeiCi T-820D Temperature electrode Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
T-820D, do you have one more than 20 cm long?
[A]
There is no such long temperature electrode, the specification is only 120mm long
[Q]
Can this temperature electrode be applied to GB/T7790?
[A]
OK
+LeiCi T-820D Temperature electrode Big data
+LeiCi T-820D Temperature electrodeStandard
- ActiveJJG 2060-2014
- ActiveJJF 919-2023
- ActiveHG/T 2797.4-2007
- ActiveGB/T 6920-1986
- ActiveGB/T 9724-2007
- ActiveGB/T 22592-2008
- ActiveGB/T 2390-2013
- ActiveGB/T 14518-1993
- ActiveISO 19396-2-2017
- ActiveISO 19396-1-2017
- ActiveGB/T 23997-2009
- ActiveGB/T 6368-2008
- ActiveQB/T 2724-2005
- ActiveGB/T 7790-2008
