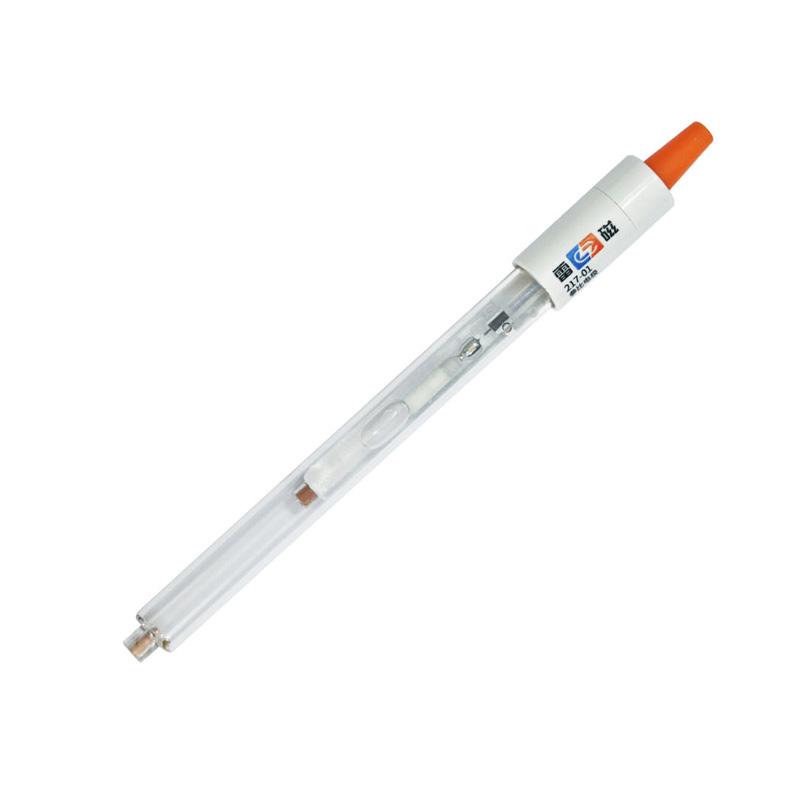

LEICI 217-01 reference electrode calomel double salt bridge form
The replenishment solution of the second salt bridge of the reference electrode type 217-01 can be selected according to the user request. For example, when the concentration of chloride ions in the measurement sample is low, the potassium nitrate solution can be filled in the second salt bridge to prevent the potassium chloride of the first salt bridge from penetrating directly into the sample and affecting the measurement results of chloride ions.
LeiCi
217-01
-
pH meter electrode E201-C plastic case composite electrode Qiwei PHB-1 special
$ 88.00 -
FANGZHOU PHS-4C + economical acidity meter 0.001pH/0.1mV
$ 457.00 -
PHscan20S-E pen pHmeter for liquid measurement
$ 129.00 -
FANGZHOU FZ-660 2-in-1 electrode for organic sample measurement
$ 196.00 -
FANGZHOU FZ-241-3S PH electrode with titanium alloy casing, micro sample testing
$ 413.00
| model | Product Description | Electrode plug |
| Type 217-01 Reference Electrode | Calomel double salt bridge form | U-shaped insert (Φ12Ã120) |
| Type 217 reference electrode | Calomel double salt bridge form | Large insert (Φ10Ã180) |
| Type 218 reference electrode | Silver/silver chloride single salt bridge type | U-shaped insert |
| C (K 2 SO 4 )-1 type reference electrode | Mercury sulfate single salt bridge type | U-shaped insert |
| Type 6802 Reference Electrode | Calomel single salt bridge form, the filling liquid is 0.1mol/L KCl | U-shaped insert |
| Type 6802-01 reference electrode | Calomel single salt bridge form, the filling liquid is 3.8mol/L KCl | U-shaped insert |
| 6802A reference electrode | The filling liquid is 3.8mol/L KCl | / |
| Type 212 reference electrode | Calomel single salt bridge form | U-shaped insert |
| D-type reference electrode | Calomel single salt bridge form | U-shaped insert |
| Type 232 reference electrode | Calomel single salt bridge form | U-shaped insert |
| 320 reference electrode | / | / |
| Special reference electrode for soil | With temperature compensation function, including 1 extension rod | / |
LeiCi 217-01 Reference electrodeSpecifications
| LIST | VALUE |
|---|---|
| Temperature Measurement Range | 5-55℃ |
| Salt bridge material | Ceramic sand core |
| reference type | Saturated calomel double salt bridge |
| Filler | Saturated KCl (in the first salt bridge) + optional internal filling |
| Shell material | Glasses |
| Dimensions | Φ12×120 mm |
| Connector | U-shaped fork |
LeiCi 217-01 Reference electrode Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
