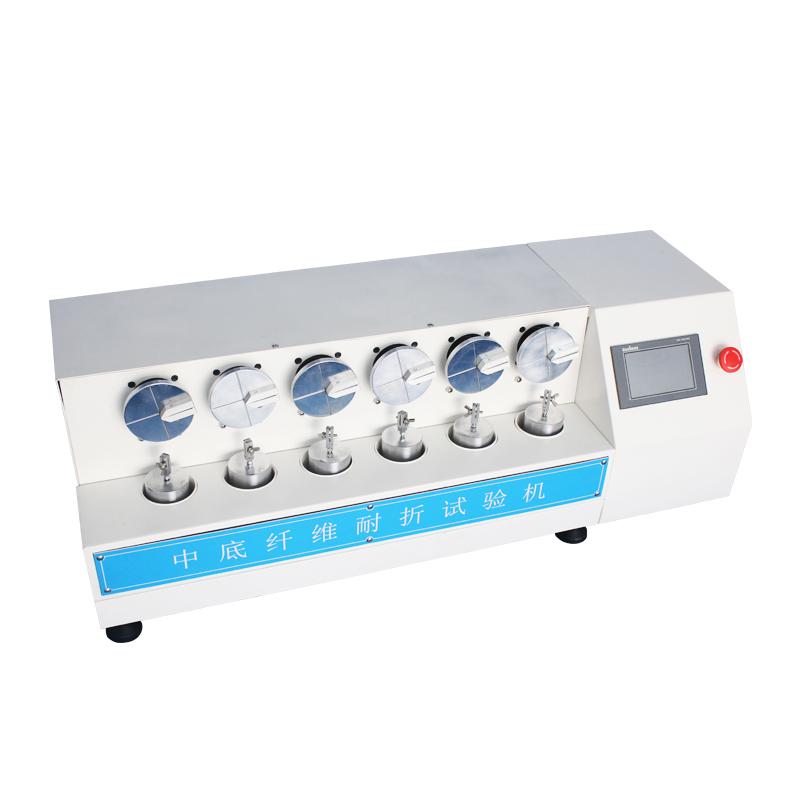

CHINA ASR-7200 midsole fiber folding Tester
CHINA midsole fiber folding Tester ASR-7200 is equipped with 6 upper clamps as standard, which are used for the bending resistance of footwear midsole fiberboard, using DC motor, the bending angle of ASR-7200 is about 90 °, and the bending speed is 60r/min.
AISRY
ASR-7200
-
CHINA NBC-5632 MIT type folding Tester Paper Folding Endurance Tester
$ 1409.00 -
CHINA NBC-7200 midsole fiber folding Tester
$ 2059.00 -
CHINA BLD-139A Finished shoes tortuous testing machine
$ 1911.00 -
Chinese NBC-7127 ROSS bending Tester, bending Tester
$ 1944.00 -
Essence Instrument LD-NZ-01 MIT Flexural Strength Tester
$ 1359.00
Introduction
It is used to test the bending resistance quality of midsole fiberboard of leather shoes, casual shoes, walking shoes and travel shoes.
Test Principle
The sample is continuously reciprocated and bent 90 degrees to the left and right until it breaks, and the number of breaks is used to determine the bending resistance index of the midsole, which is used as a basis for comparison and selection of the midsole . Sampling requirements: Cut a standard sample with a length of 80mm and a width of 10mm from the finished fiberboard. Result Judgment: The number of times when it breaks is used to judge the bending resistance index of the midsole.
AISRY ASR-7200 Midsole fiber folding testing machineSpecifications
| LIST | VALUE |
|---|---|
| Specimen size | 80x10mm |
| Counter | LCD, 0~999999 |
| Upper fixture | 6 |
| motor | DC motor |
| Lower fixture and Weight | 2 ± 0.1Kg, 6 pcs |
| Volume | 1000x370x350mm |
| folding angle | Left and right 90 ° |
| Weight | About 100kg |
| folding speed | 60r/min |
| Power | 1∮，AC220V，5A |
AISRY ASR-7200 Midsole fiber folding testing machine Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
