Description

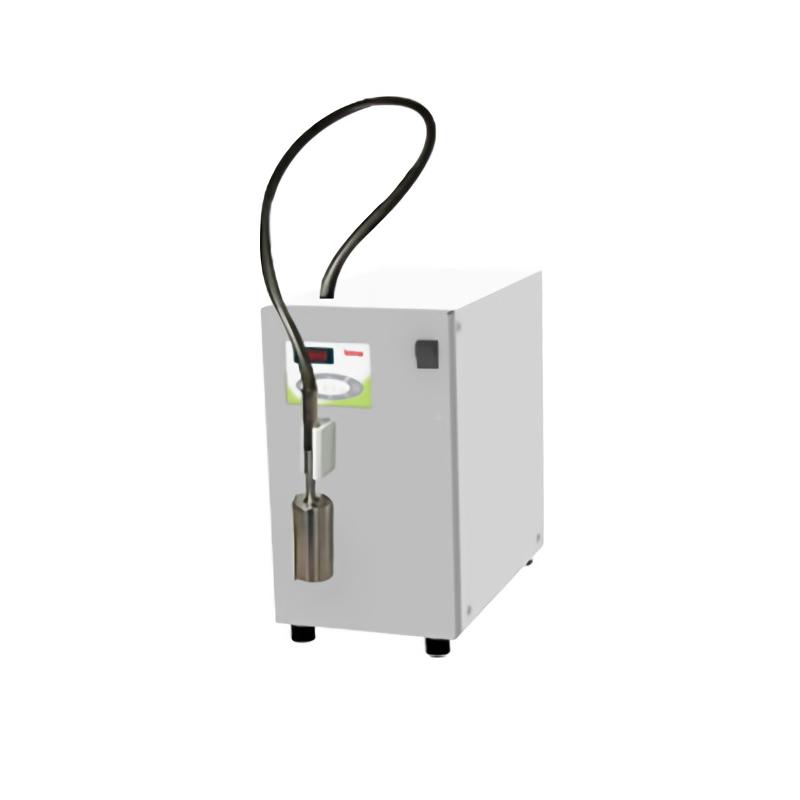

The iMCooler402 is a submersible chiller, which is cooled by a compressor and directly exchanged heat with the liquid medium through the evaporator, so that the temperature of the liquid medium is reduced. At the same time, the temperature controller is used for temperature control, with constant temperature and cooling functions, and the minimum temperature is -40°C.
The submersible cooler is an excellent choice for continuous refrigeration, which can quickly cool the liquid to low temperature or ultra-low temperature, and can replace dry ice for ultra-low temperature experiments. In conjunction with a heating circulator, the system temperature can be lowered to work below room temperature.
Features
The laboratory replaces ice salt, dry ice, and liquid nitrogen for low-temperature tests, with a low temperature of -40 °C;
It is very convenient to use with the open heating circulator, and the temperature of the bath liquid reaches room temperature or below to achieve rapid cooling;
Simple operation;
Small size, light weight, can be easily placed on the desktop;
Temperature alarm function;
When the alarm is raised, the light and sound are reminded at the same time;
Temperature calibration function;
The key components of the refrigeration system, such as compressors and circulating fans, are imported products.
Comparable models
| Model | Temperature range | Temperature Fluctuation | Coil size | Hose length | Dimensions |
| [℃] | [℃] | [mm] | [mm] | (WxDxH) [mm] | |
| iMCooler-204 | -20...40 | ±0.5 | φ40×90 | 1200 | 232x420x410 |
| iMCooler-402 | -40...40 | ±0.5 | φ50×120 | 1200 | 232x420x410 |
| iMCooler-805 | -80...40 | ±1.0 | φ12.5×650 | 1600 | 355x455x865 |
labtop iMCooler-402 input refrigeratorSpecifications
| LIST | VALUE |
|---|---|
| Instrument type | input refrigerator |
| Protection level | I/NFL |
| Protection level | IP20 |
| Temperature range | -40~40℃ |
| Temperature Fluctuation | ±0.5K |
| Temperature Display mode | LED |
| Temperature Control mode | Intelligent PID control |
| Temperature sensor | Pt100 |
| refrigerant | R404 |
| Cooling Capacity 10 ℃ | 450W |
| Dimensions | 235*300*380mm |
| Temperature Resolution | 0.1℃ |
| Light alarm | Yes |
| audible alarm | Yes |
| Calibrating options | Yes |
| Allow continuous operation | 100% |
| Environmental temperature | 5~32℃ |
| Allowable Relative Humidity | 80% |
| Weight | 23kg |
| Power supply Voltage | 200~230VAC/50Hz |
| Instrument noise | ≤55db |
| Technical parameter standard | DIN 12876 |
labtop iMCooler-402 input refrigerator Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.


labtop
iMCooler-402
