        Home> Mayer Rod> RDS> RDS 37# 1/4“ Applicator rod 1/4 "

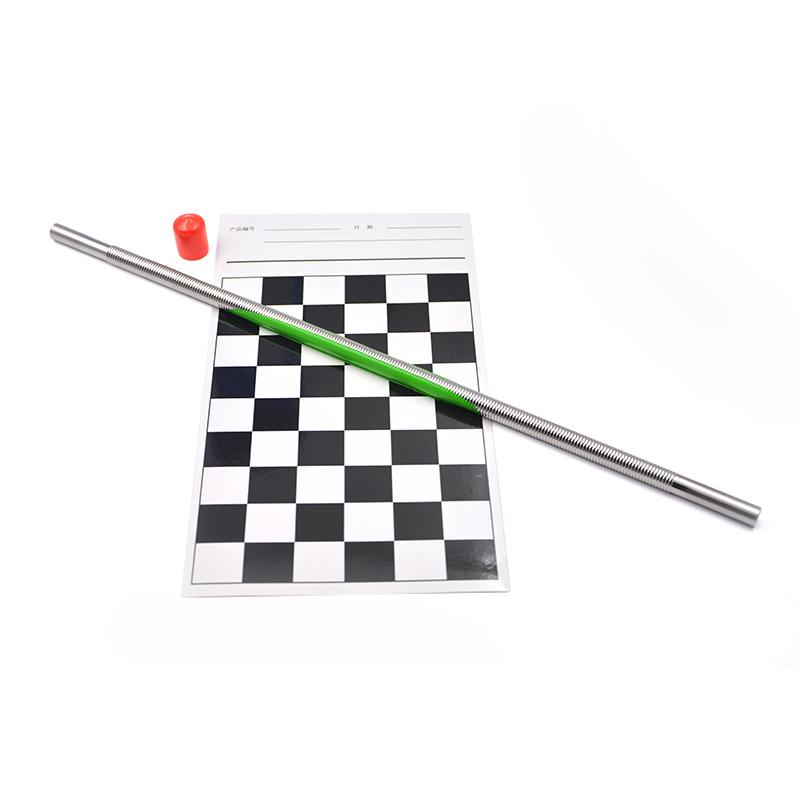

        RDS 37# 1/4“ Applicator rod 1/4 "

        RDS #37 Mayer Rods WFT 84.6μm length 400mm

        Formed, wet film thickness 84.6μm, diameter 6.35mm, Total length 400mm, Spreader width 300mm, grip width 50 + 50mm, material stainless steel.

        Brand
        SKU: NB000031
        United States RDS
        Stock
        Loading…
        Price
        $ 155.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          RDSLOGO

          RDS shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • RDS 37# 1/4“ Applicator rod 1/4 "Overview

          • Specifications
          • Comments
          • FAQs
          37# 1/4“
          Applicator rod 1/4 "
          • RDS #37 Mayer Rods WFT 84.6μm length 400mm
          • RDS #37 Mayer Rods WFT 84.6μm length 400mm Figure 1
          • RDS #37 Mayer Rods WFT 84.6μm length 400mm Figure 2
          Formed, wet film thickness 84.6μm, diameter 6.35mm, Total length 400mm, Spreader width 300mm, grip width 50 + 50mm, material stainless steel.

          Product description

          There are two types of RDS wire Bar Coater: wire-winding type and forming type, but RDS#37 wire Bar Coater currently only has a forming type, with a diameter of 6.35mm and a film thickness of 84.6μm. Formed coating rods are developed by RDS to solve the problems of users who use wire-wound coating rods that are not easy to clean and will block impurities. They do not need to be wound with steel wires, and are directly processed into continuous grooves on the steel rods. , the thickness of the coating film is controlled by the size of the groove, and the precision of the coating film prepared by it is marked as 0.1 micron, and it is suitable for high-viscosity coating experiments.

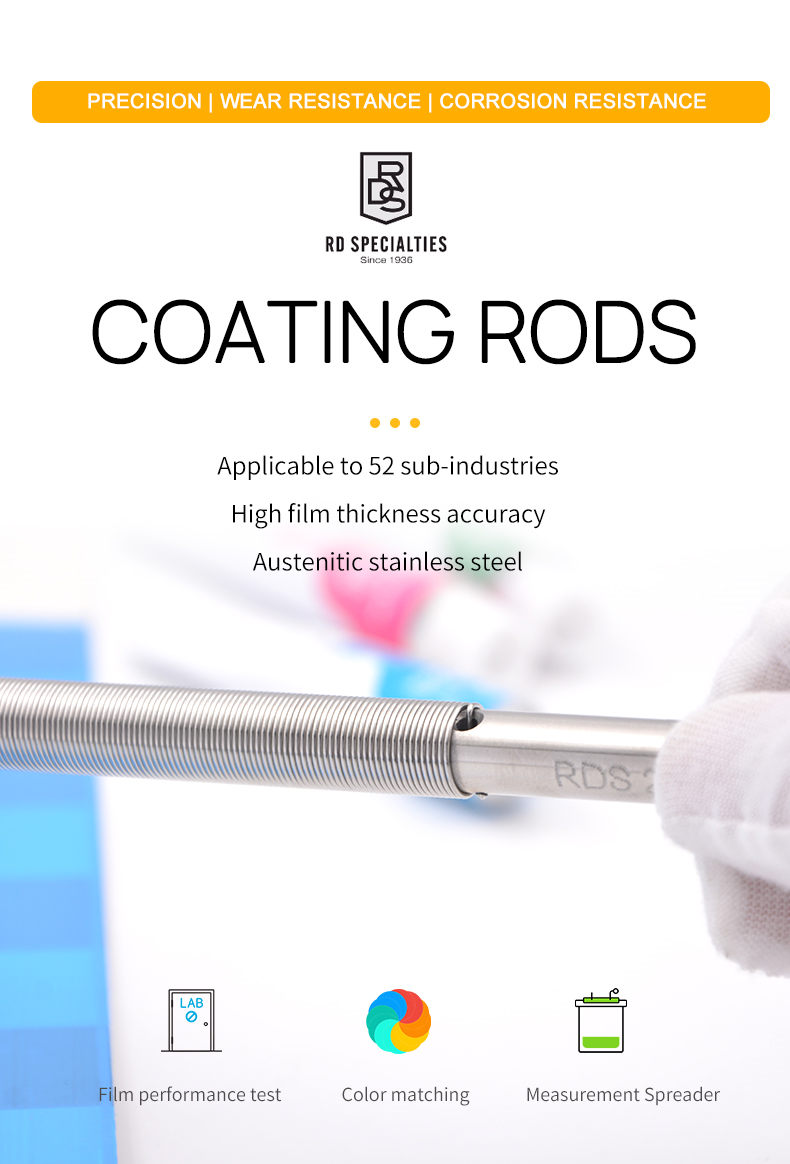

          RDS coating Rods Figure 1

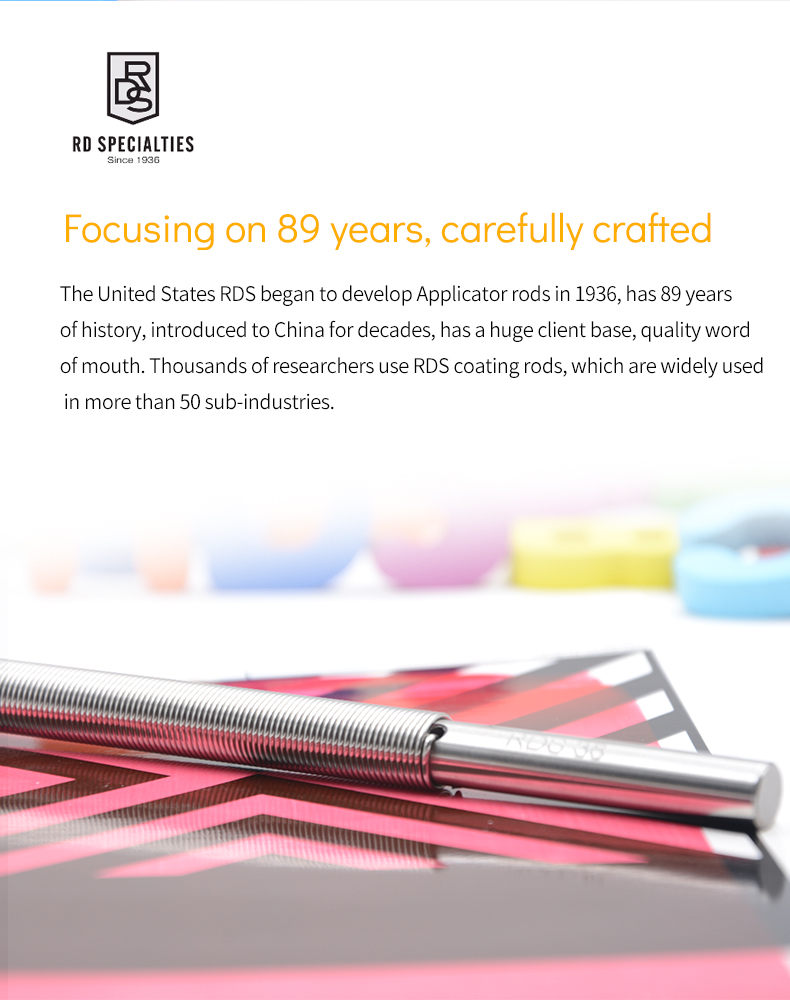

          RDS coating Rods Figure 2

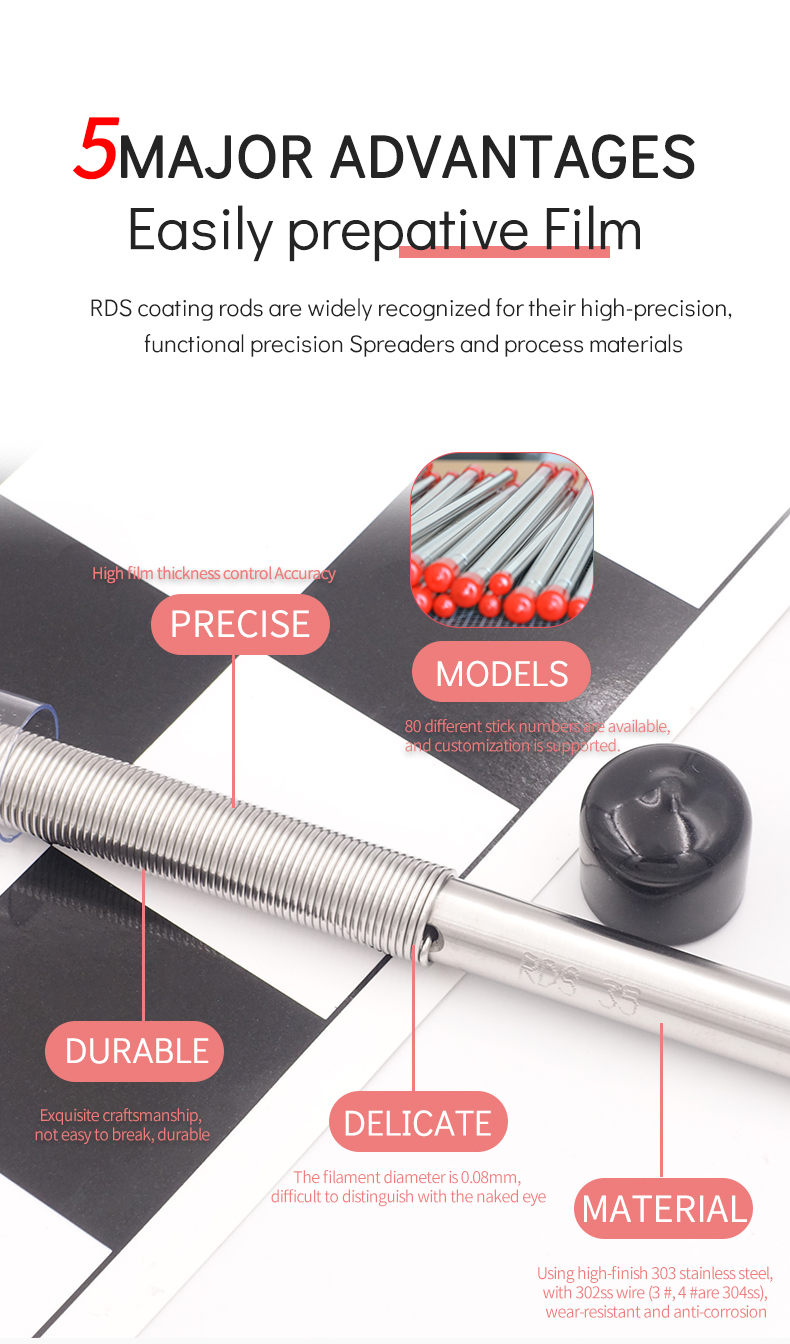

          RDS coating Rods Figure 3

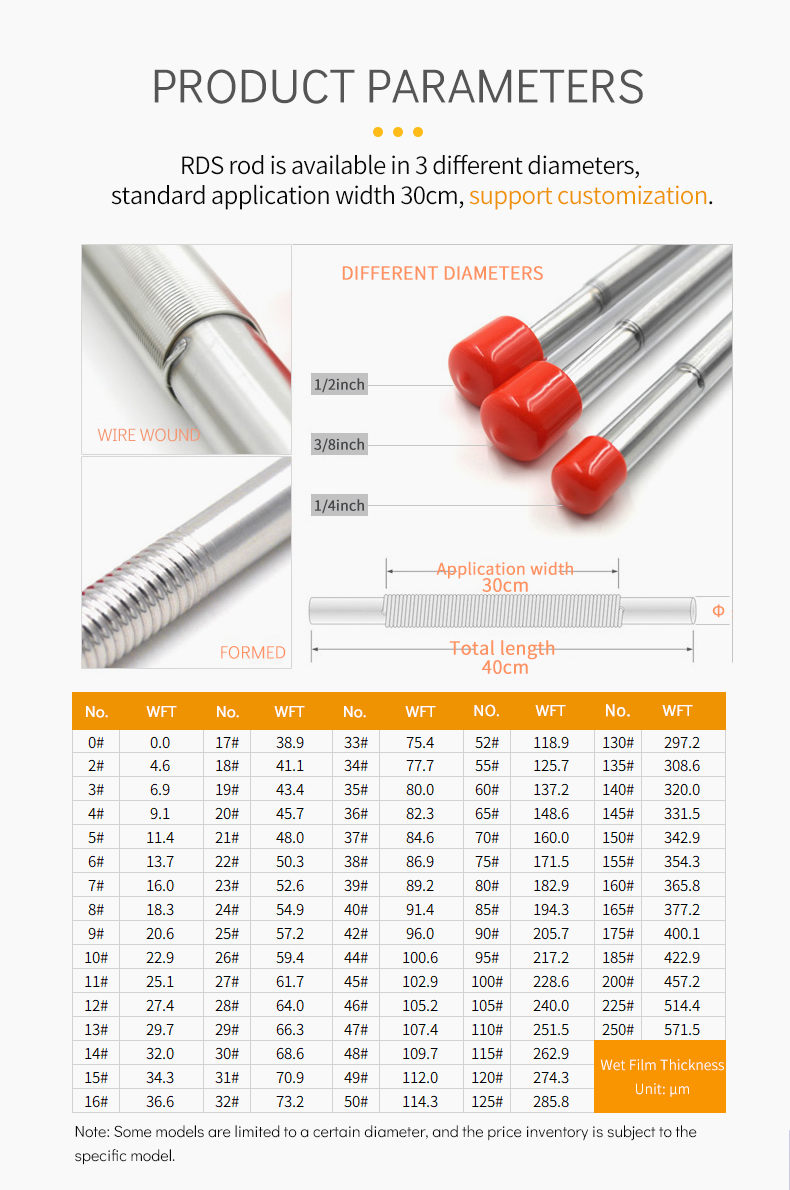

          RDS coating Rods Figure 4

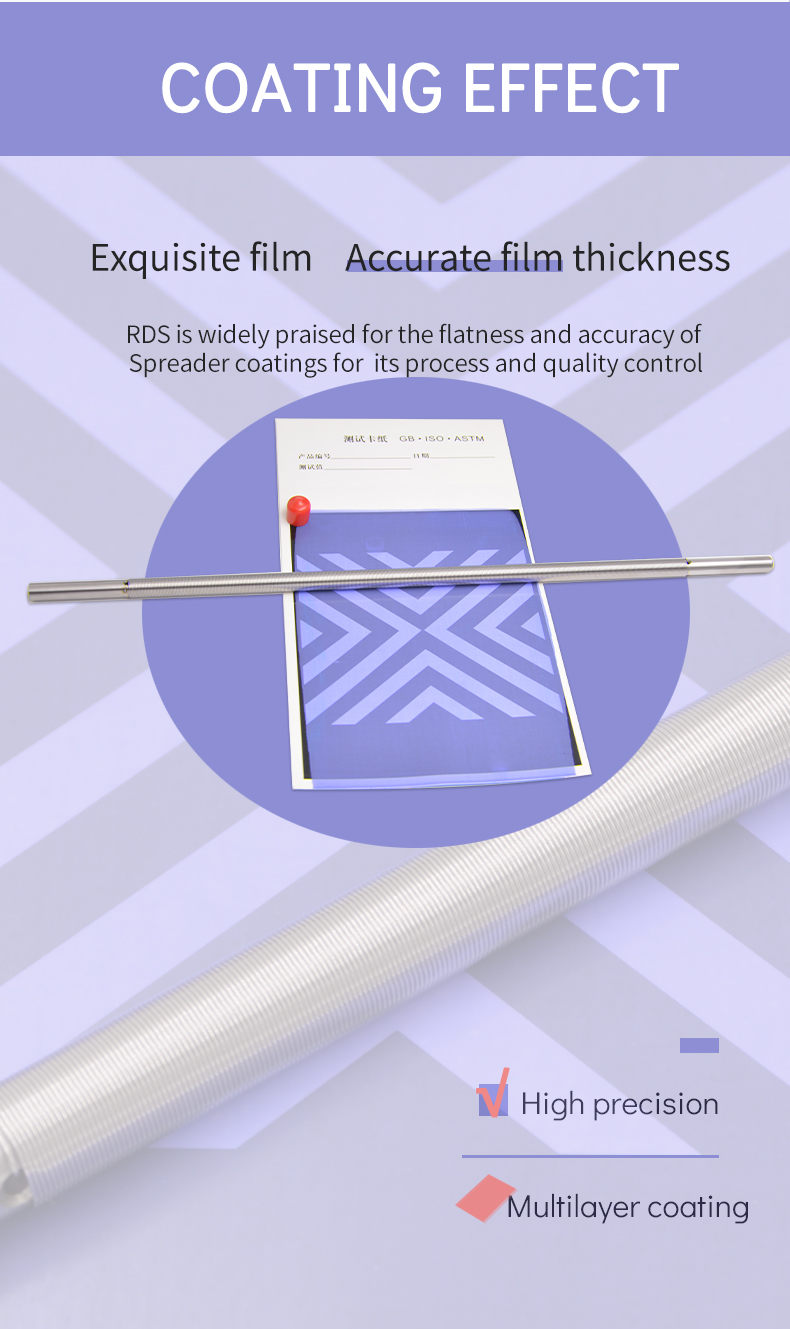

          RDS coating Rods Figure 5



          RDS coating Rods Figure 6

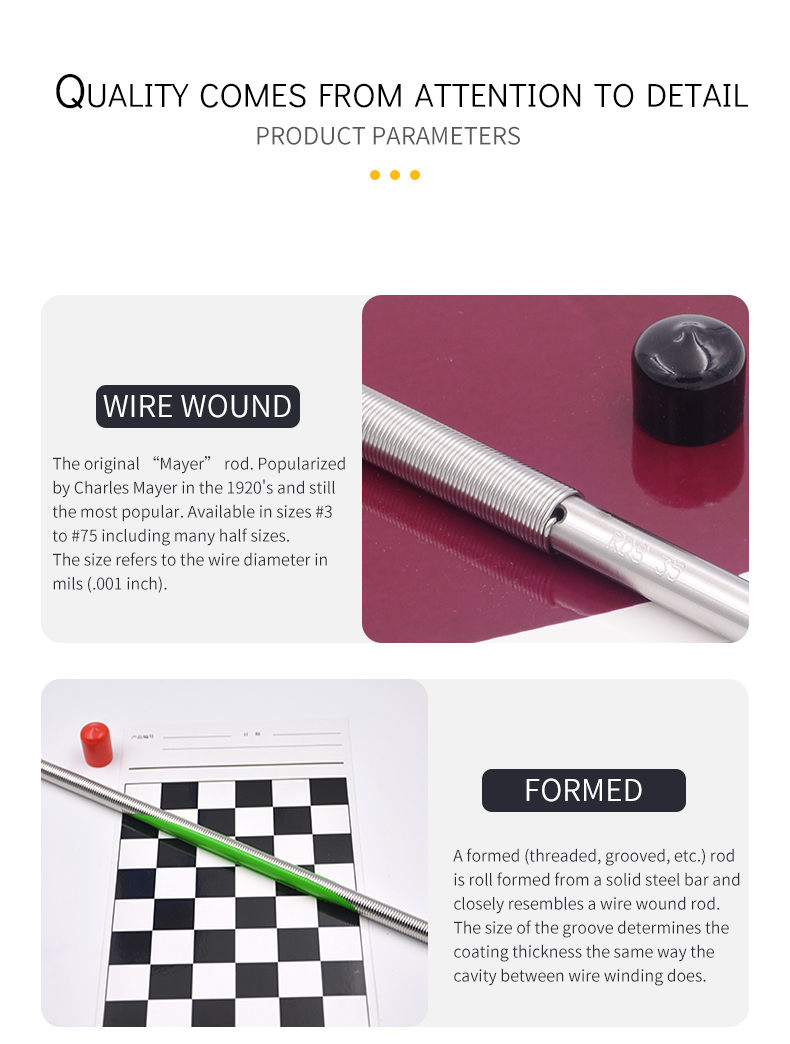

          RDS coating Rods Figure 7

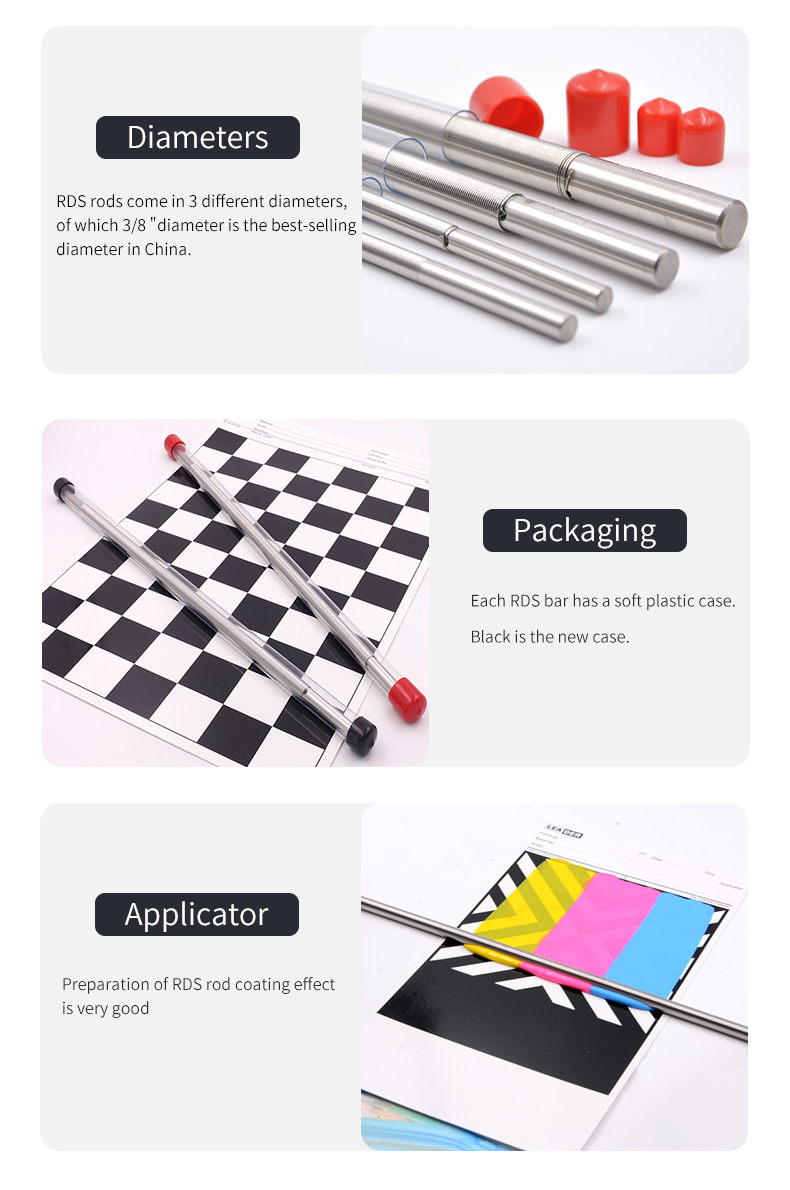

          RDS coating Rods Figure 8



          RDS coating Rods Figure 9



          RDS coating Rods Figure 10



          VS

          RDS 37# 1/4“ Applicator rod 1/4 "Specifications

          LIST VALUE
          Production process formed
          WFT 84.6μm
          diameter 6.35mm
          Total length 400mm
          application width 300mm
          Grip Width 50+50mm
          material stainless steel

          RDS 37# 1/4“ Applicator rod 1/4 " Packing list

          Stainless Steel Rod X1 Transparent Encasement Hose X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          What is the difference between the same 3/8 "diameter round Mayer-Rod and this molding rod? Can it be replaced?
          [A]
          The main difference between the Mayer-Rod and the molding rod is the different process of groove formation. The wire rods of the same specification and different processes can be replaced by each other, and the wet film thickness is the same. The difference is because the groove shapes of the two are different (the molding is U-shaped groove, and the winding wire is V-shaped groove). The calculation of the Spreader amount is different, and the relative molded Spreader amount will be more. There is no difference for laboratory use.
          [Q]
          Moulding rod is better for winding or extrusion?
          [A]
          In theory, the Moulding effect is the same. The extrusion U-groove is relatively easy to clean, but it requires high asperity on the inner wall of the groove. The winding follows the Mayer principle, and the scraping is smoother. If used for pre-production Measurement, the extrusion Spreader is larger than the winding. The same film thickness was prepared in the laboratory, and the effect was the same.
          [Q]
          Can this cable stick be matched with a Film Applicator?
          [A]
          Whether it can be matched with the Film Applicator depends on the film width of the Film Applicator. Most Film Applicator film widths on the market are less than 40cm, and the rod diameter is less than 10mm, so it is suitable. But if the Film Applicator is specially customized, or the width exceeds 40cm, you need to choose a longer rod. For customization, please consult NBchao.
          [Q]
          Do you support customization? Such as wet film thickness and length?
          [A]
          Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
          [Q]
          Can all extruded wire rods be used for inspection in the GB/T 13452.3 standard?
          [A]
          Not necessarily, but this 37 #1/4 "extrusion rod can be considered.
