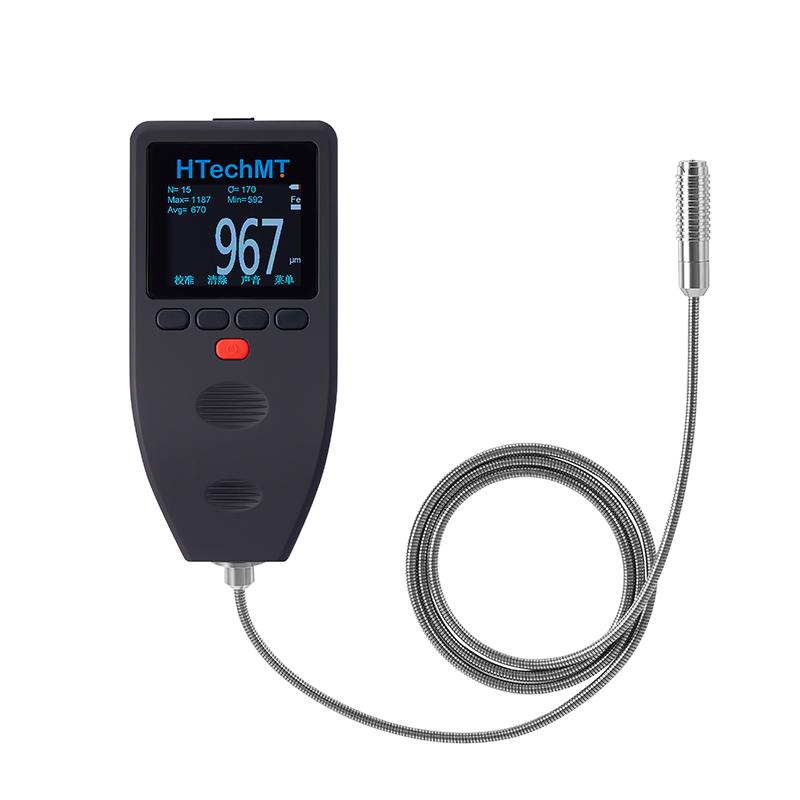

HTechMT CO600FBB5 Coating Thickness Gauge, Iron-based, Economical 500μm

Type B iron-based integral belt type, 0.5mm, screen statistics function

Brand

SKU: NB031042

HTechMT

Model

CO600FBB5

Get Quote

HTechMT shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

German EPK probe N08 Cr eddy current Thickness Gauge probe, thickness range 0~80um

$ 1571.00
LANDTEK CM8829F magnetic Film Thickness Gauge, one-piece, thickness range 0~3mm

$ 444.00
AMITTARI AC-112-200F Coating Thickness Gauge Iron-based film thickness Measurement Instrument

$ 610.00
Defelsko PRB200C Ultrasonic Thickness Gauge Probe PosiTector200C

$ 2773.00
German Nix QNix 4500 + F3 integrated coating platings Thickness Gauge Fe iron-based probe 0-3000μm

$ 832.00

Genuinegoods

HTechMT CO600FBB5 Coating Thickness GaugeOverview
Specifications
Comments
FAQs

CO600FBB5

Coating Thickness Gauge

Type B iron-based integral belt type, 0.5mm, screen statistics function

Coating Thickness Gauges provide fast and accurate measurement of non-magnetic coatings or coatings (e.g., e.g., steel, iron) on magnetic metal substrates (e.g., steel, iron).Aluminum, chromium, copper, enamel, rubber, paint, etc.) and non-magnetic metal substrates (e.g. copper, aluminum, zinc, tin, etc.)The thickness of the non-conductive cladding (e.g., enamel, rubber, paint, plastic, etc.).

Executive Standards:ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400

CO600 series classification

CO600 F A E 1

1 Range type: 1/2/3/4/5 for 1.6, 5.0, 14.0, 25.0 and 0.5 mm (integral and integral strip type)

E: Function Type: Economy (E), Basic (B), Statistical (S), Advanced (T)

A: Main unit and probe connection type: Integral type (A), integral strip type (B) and split type (C)

F: Substrate type: Iron-based (F), Non-ferrous (N)

HTechMT CO600FBB5 Coating Thickness Gauge Detail Figure 1

Split

	B (Basic)	S (Standard)	T (Advanced)
Iron	CO600FCB	CO600FCS	CO600FCT
Non-iron-based	CO600NCB	CO600NCS	CO600NCT

Monolithic

Range	E (Economy)		B (Basic)
Range	Monolithic	Integral belt line type	Monolithic	Integral belt line type
Iron-based 0.5mm	CO600FAE5	CO600FBE5	CO600FAB5	CO600FBB5
Iron-based 1.6mm	CO600FAE1	CO600FBE1	CO600FAB1	CO600FBB1
Iron-based 5.0mm	CO600FAE2	CO600FBE2	CO600FAB2	CO600FBB2
Iron base 13.0mm				CO600FBB3
Non-ferrous base 0.5mm	CO600NAE5	CO600NBE5	CO600NAB5	CO600NBB5
Non-ferrous base 1.6mm	CO600NAE1	CO600NBE1	CO600NAB1	CO600NBB1
Non-ferrous base 5.0mm	CO600NAE2	CO600NBE2	CO600NAB2	CO600NBB2
Non-ferrous base 13.0mm	CO600NAE3	CO600NBE3	CO600NAB3	CO600NBB3

Range	S (Standard)		T (Advanced)
Range	Monolithic	Integral belt line type	Monolithic	Integral belt line type
Iron-based 0.5mm	CO600FAS5	CO600FBS5	CO600FAT5	CO600FBT5
Iron-based 1.6mm	CO600FAS1	CO600FBS1	CO600FAT1	CO600FBT1
Iron-based 5.0mm	CO600FAS2	CO600FBS2	CO600FAT2	CO600FBT2
Iron base 13.0mm		CO600FBS3		CO600FBT3
Non-ferrous base 0.5mm	CO600NAS5	CO600NBS5	CO600NAT5	CO600NBT5
Non-ferrous base 1.6mm	CO600NAS1	CO600NBS1	CO600NAT1	CO600NBT1
Non-ferrous base 5.0mm	CO600NAS2	CO600NBS2	CO600NAT2	CO600NBT2
Non-ferrous base 13.0mm				CO600NBT3

Series differences

CO600		E	B	S	T
Coating Thickness Gauge		Economical	Basic	Standard	Advanced
Overview	Dimensions	7015032mm
	Weight (with battery)	200g
	display screen	2.2 TFT
	battery	2 x No. 5 batteries (rechargeable batteries available)
	Battery life¹	20 hours
	Operating temperature	-10~50^oC
	precision²	±(1-3)%
	Test speed	60 times/min
Feature settings	Low battery alarm	√	√	√	√
	Smooth two-point calibration	√	√	√	√
	Rough two-point calibration¹		√	√	√
	Rough two-point calibration²		√	√	√
	Zero-point calibration		√	√	√
	Factory calibrated	√	√	√	√
	language³	√	√	√	√
	Ambient light sensors	√	√	√	√
	Automatic screen transversion		√	√	√
	Test tone adjustments		√	√	√
	Display brightness adjustment		√	√	√
	Upper and lower limit functions		√	√	√
Screen settings	Screen statistics function		√	√	√
	Number of measurements		√	√	√
	maximum		√	√	√
	minimum		√	√	√
	average value		√	√	√
	standard deviation		√	√	√
Array statistics	Create a new group			√	√
	Open the group			√	√
	View the group			√	√
	Purge groups			√	√
	Delete the group			√	√
	Leave the group			√	√
	Number of groups			10 groups	100 groups
	Total storage			100,000 pieces	1,000,000
other	USB connection to PC	√	√	√	√
	Data is downloaded to a PC			√	√
	Firmware upgrades	√	√	√	√
	Wifi			√	√

1 Different batteries or settings may vary;

2 Accuracy depends on the accuracy of the standard and the user's proficiency;

3 The language is updated without notice, please contact customer service.

Probe selection

shape	Probe model	A	B	C	Range	Accuracy 1	Minimum headroom	Minimum test radius	Minimum substrate thickness
	CO600F1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600F5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.8mm
	CO600F1H	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.8mm
	CO600F2H	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.8mm
	CO600N1S	9	40	50	1.6mm	± 1-3% or 2.5μm	80mm	5mm	0.3mm
	CO600N2S	9	40	50	5.0mm	± 1-3% or 20μm	80mm	5mm	0.3mm
	CO600N5S	9	40	50	0.5mm	± 1-3% or 2.0μm	80mm	5mm	0.3mm
	CO600F1R	9	40	50	1.6mm	± 1-3% or 2.5μm	30mm	5mm	0.8mm
	CO600F2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.8mm
	CO600N1R	9	40	50	1.5mm	± 1-3% or 2.5μm	30mm	5mm	0.3mm
	CO600N2R	9	40	50	5.0mm	± 1-3% or 20μm	30mm	5mm	0.3mm
	CO600F3S	16.5	40	50	13.0mm	± 1-3% or 50μm	80mm	10mm	1.0mm
	CO600F4S	24	60	50	26.0mm	± 1-3% or 100μm	120mm	30mm	1.0mm

*High temperature probe temperature is 250°C

HTechMT CO600FBB5 Coating Thickness GaugeSpecifications

LIST	VALUE
Measurement principle	Magnetic Induction
Measurement range	0~500μm
margin of error	±1%
Probe material	ruby
Calibrated mode	Smooth two-point calibrated, rough two-point calibrated 1, rough two-point calibrated 2, zero-point calibrated, factory calibrated
Interface	USB
Power	2 AA batteries (rechargeable batteries can be used)
Standards	ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400
Language	Chinese, English, German
Display screen	2.2 TFT LCD
Operating temperature	-10~50℃
Battery life	20h
Protection level	IP64
Print function	No
Machine Weight	200g
Machine size	7015032mm
Minimum headroom	80mm
Minimum measurement surface	R5mm
Minimum substrate thickness	0.8mm
Test speed	60 times/minute
statistical function	Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation

HTechMT CO600FBB5 Coating Thickness Gauge Packing list

host X1, AA battery X2, test piece set X1, zero adjustment plate X1, certificate X1, manual X1, silicone protective cover X1, instrument bag (cloth bag) X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What is the accuracy of this coating thickness gauge?

[A]

Hello, the accuracy is ± 1%.

[Q]

Can this HTechMT Coating thickness gauge correspond to JB/T7217?

[A]

Yes, please refer to the NBchao standards page for specific standards.
