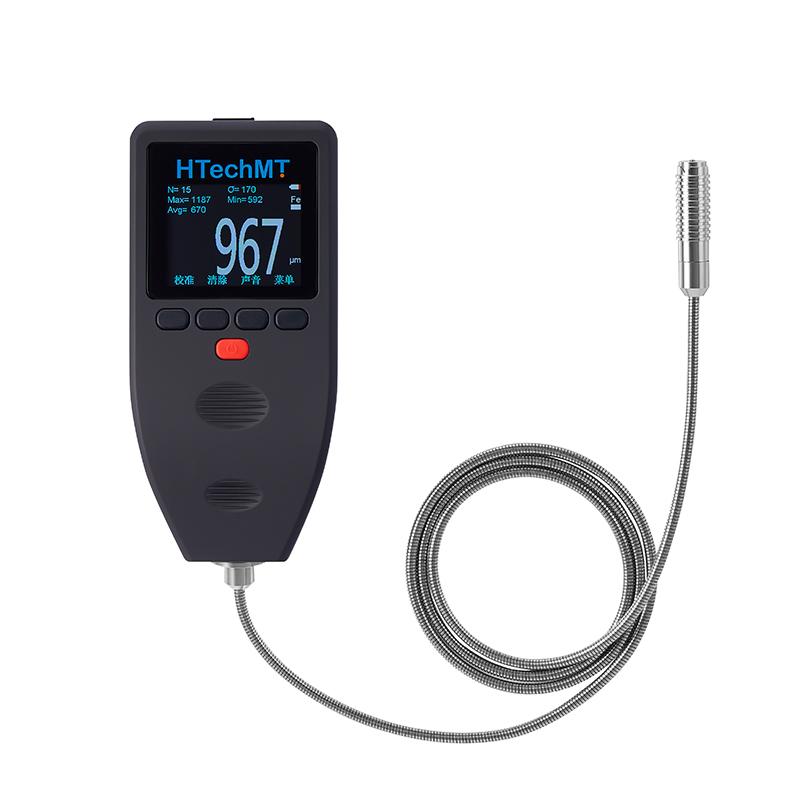

HTechMT CO600FBT2 Coating Thickness Gauge

HTechMT CO600FBT2 platings Thickness Gauge, iron-based, advanced type 5000 μm

T-type iron-based integral belt type, 5mm, 1 million data stored

Brand

SKU: NB031060

HTechMT

Model

CO600FBT2

Get Quote

HTechMT shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

Genuinegoods

HTechMT CO600FBT2 Coating Thickness GaugeOverview
Specifications
Comments
FAQs

CO600FBT2

Coating Thickness Gauge

T-type iron-based integral belt type, 5mm, 1 million data stored

The coating Thickness Gauge can quickly and accurately measure the thickness of non-magnetic coatings or coatings (such as aluminum , chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron) and non-magnetic metal substrates (such as The thickness of non-conductive coatings (such as enamel , rubber, paint, plastics, etc.) on copper, aluminum, zinc, tin, etc.).

Implementation standards: ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400

CO600 series classification

CO600 FA E 1

1 Range type: 1/2/3/4/5 corresponds to 1.6, 5.0, 14.0, 25.0 and 0.5mm (whole and whole with line type)

E: Function type: Economic type (E), basic type (B), statistical type (S), advanced type (T)

A: Host and probe connection types: integral type (A), integral with line type (B) and split type (C)

F: Substrate type: Iron-based (F), non-ferrous-based (N)

HTechMT CO600FBT2 coating Thickness Gauge details picture 1

split type

	B (basic type)	S (standard type)	T (advanced type)
iron base	CO600FCB	CO600FCS	CO600FCT
Non-ferrous	CO600NCB	CO600NCS	CO600NCT

Integral

Measuring range	E (Economy type)		B (basic type)
Measuring range	Integral	Overall wired	Integral	Overall wired
Iron base 0.5mm	CO600FAE5	CO600FBE5	CO600FAB5	CO600FBB5
Iron base 1.6mm	CO600FAE1	CO600FBE1	CO600FAB1	CO600FBB1
Iron base 5.0mm	CO600FAE2	CO600FBE2	CO600FAB2	CO600FBB2
Iron base 13.0mm				CO600FBB3
Non-ferrous base 0.5mm	CO600NAE5	CO600NBE5	CO600NAB5	CO600NBB5
Non-ferrous base 1.6mm	CO600NAE1	CO600NBE1	CO600NAB1	CO600NBB1
Non-ferrous base 5.0mm	CO600NAE2	CO600NBE2	CO600NAB2	CO600NBB2
Non-ferrous base 13.0mm	CO600NAE3	CO600NBE3	CO600NAB3	CO600NBB3

Measuring range	S (standard type)		T (advanced type)
Measuring range	Integral	Overall wired	Integral	Overall wired
Iron base 0.5mm	CO600FAS5	CO600FBS5	CO600FAT5	CO600FBT5
Iron base 1.6mm	CO600FAS1	CO600FBS1	CO600FAT1	CO600FBT1
Iron base 5.0mm	CO600FAS2	CO600FBS2	CO600FAT2	CO600FBT2
Iron base 13.0mm		CO600FBS3		CO600FBT3
Non-ferrous base 0.5mm	CO600NAS5	CO600NBS5	CO600NAT5	CO600NBT5
Non-ferrous base 1.6mm	CO600NAS1	CO600NBS1	CO600NAT1	CO600NBT1
Non-ferrous base 5.0mm	CO600NAS2	CO600NBS2	CO600NAT2	CO600NBT2
Non-ferrous base 13.0mm				CO600NBT3

Series differences

CO600		E	B	S	T
Coating Thickness Gauge		Economical	Basic type	Standard type	Advanced type
Overview	Dimensions	7015032mm
	Weight (including battery)	200g
	Display	2.2 TFT
	Battery	2 AA batteries (rechargeable batteries available)
	^Battery life1	20 hours
	operating temperature	-10~50 ^o C
	Accuracy ²	Â±(1-3)%
	Test speed	60 times/minute
Function settings	Low battery alarm	â	â	â	â
	Smooth two-point calibration	â	â	â	â
	Rough two-point calibration ¹		â	â	â
	Rough two-point calibration ²		â	â	â
	Zero point calibration		â	â	â
	Factory calibration	â	â	â	â
	Language ³	â	â	â	â
	ambient light sensor	â	â	â	â
	Automatically rotate screen		â	â	â
	Test tone adjustment		â	â	â
	Display brightness adjustment		â	â	â
	Upper and lower limit functions		â	â	â
Screen settings	Screen statistics function		â	â	â
	Number of measurements		â	â	â
	maximum value		â	â	â
	minimum value		â	â	â
	average value		â	â	â
	standard deviation		â	â	â
Array statistics	New group			â	â
	open group			â	â
	View group			â	â
	clear group			â	â
	Delete group			â	â
	Exit group			â	â
	Number of groups			10 sets	100 groups
	Total storage			100,000	1 million
other	USB connection to PC	â	â	â	â
	Data download to PC			â	â
	Firmware upgrade	â	â	â	â
	Wifi			â	â

1 There are differences between different batteries or settings;

2 The accuracy depends on the accuracy of the standard film and the user's proficiency;

3 Language types will be updated without further notice, please contact customer service.

Probe selection

shape	Probe model	A	B	C	Measuring range	Accuracy 1	Minimum headroom	Minimum test radius	Minimum substrate thickness
	CO600F1S	9	40	50	1.6mm	Â±1-3% or 2.5 Î¼m	80mm	5mm	0.8mm
	CO600F2S	9	40	50	5.0mm	Â±1-3% or 20 Î¼m	80mm	5mm	0.8mm
	CO600F5S	9	40	50	0.5mm	Â±1-3% or 2.0 Î¼m	80mm	5mm	0.8mm
	CO600F1H	9	40	50	1.6mm	Â±1-3% or 2.5 Î¼m	80mm	5mm	0.8mm
	CO600F2H	9	40	50	5.0mm	Â±1-3% or 20 Î¼m	80mm	5mm	0.8mm
	CO600N1S	9	40	50	1.6mm	Â±1-3% or 2.5 Î¼m	80mm	5mm	0.3mm
	CO600N2S	9	40	50	5.0mm	Â±1-3% or 20 Î¼m	80mm	5mm	0.3mm
	CO600N5S	9	40	50	0.5mm	Â±1-3% or 2.0 Î¼m	80mm	5mm	0.3mm
	CO600F1R	9	40	50	1.6mm	Â±1-3% or 2.5 Î¼m	30mm	5mm	0.8mm
	CO600F2R	9	40	50	5.0mm	Â±1-3% or 20 Î¼m	30mm	5mm	0.8mm
	CO600N1R	9	40	50	1.5mm	Â±1-3% or 2.5 Î¼m	30mm	5mm	0.3mm
	CO600N2R	9	40	50	5.0mm	Â±1-3% or 20 Î¼m	30mm	5mm	0.3mm
	CO600F3S	16.5	40	50	13.0mm	Â±1-3% or 50 Î¼m	80mm	10mm	1.0mm
	CO600F4S	twenty four	60	50	26.0mm	Â±1-3% or 100 Î¼m	120mm	30mm	1.0mm

*High temperature probe temperature is 250℃

HTechMT CO600FBT2 Coating Thickness GaugeSpecifications

LIST	VALUE
Measurement principle	Magnetic Induction
Measurement range	0~5000μm
margin of error	±1~3%/±20μm
Probe material	ruby
Calibrated mode	Smooth two-point calibrated, rough two-point calibrated, zero-point calibrated, factory calibrated
statistical function	Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
Interface	USB
Power Supply	2 AA batteries (rechargeable batteries can be used)
Standards	ISO 2178/2360/2808、ISO 19840、ASTM B244/B499/D1186/D1400
Language	Chinese, English, German
Display screen	2.2 TFT LCD screen
Operating temperature	-10~50℃
Battery life	20h
Protection level	IP64
Print function	No
Machine Weight	200g
Machine size	7015032mm
Minimum headroom	80mm
Minimum measurement surface	R5mm
Minimum substrate thickness	0.8mm
Test speed	60 times/minute
Probe size	Φ9mm
statistical function	Create a new group, open a group, view a group, clear a group, delete a group, and exit a group
number of statistical groups	100 groups
Data storage	Article 1 million
Other functions	Data download to PC, firmware upgrade

HTechMT CO600FBT2 Coating Thickness Gauge Packing list

host X1, AA battery X2, test piece set X1, zero adjustment plate X1, certificate X1, manual X1, silicone protective cover X1, instrument bag (cloth bag) X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
