CHINA ASR-8515 Double Wing Drop Tester
The drop height of CHINA double-wing Drop Tester ASR-8515 is 400-1500mm, which adopts digital display mode and manual reset. ASR-8515 is mainly used to assess the impact of drop impact on Encasement parts during actual transportation and loading and unloading.
AISRY
ASR-8515
-
CHINA NBC-8515 wing Dropping Tester
$ 1683.00 -
CHINA mobile phone Dropping Tester NBC-5619B
Login -
HUIDA HD-6004 Single wing Dropping Tester Encasement Tester 300~1500mm
$ 2620.00 -
CHINA NBC-8517 Zero Dropping Tester Impact strength Tester
$ 10533.00 -
HUIDA HD-6005 Double wing Dropping Tester Encasement Tester 300~1500mm
$ 2620.00
Introduction
This machine can perform free drop test on the surface, corner and edge of the package. It is equipped with a digital display height indicator and a decoder for height tracking. More than 2% or 10mm. This machine adopts a single-arm double-column structure, with automatic reset, electric drop and electric lifting devices, easy to use; the unique hydraulic buffer device greatly improves the service life, stability and safety of the machine. The single-arm setting can conveniently place the product, and the angle error between the impact surface of the drop angle and the plane of the bottom plate is less than 50°.
This machine complies with the standard: GB4757.5-84 JB/T 7407-94 ISO2248-1995 "Packaging - Vertical Impact Drop Test of Complete and Full Transport Packages

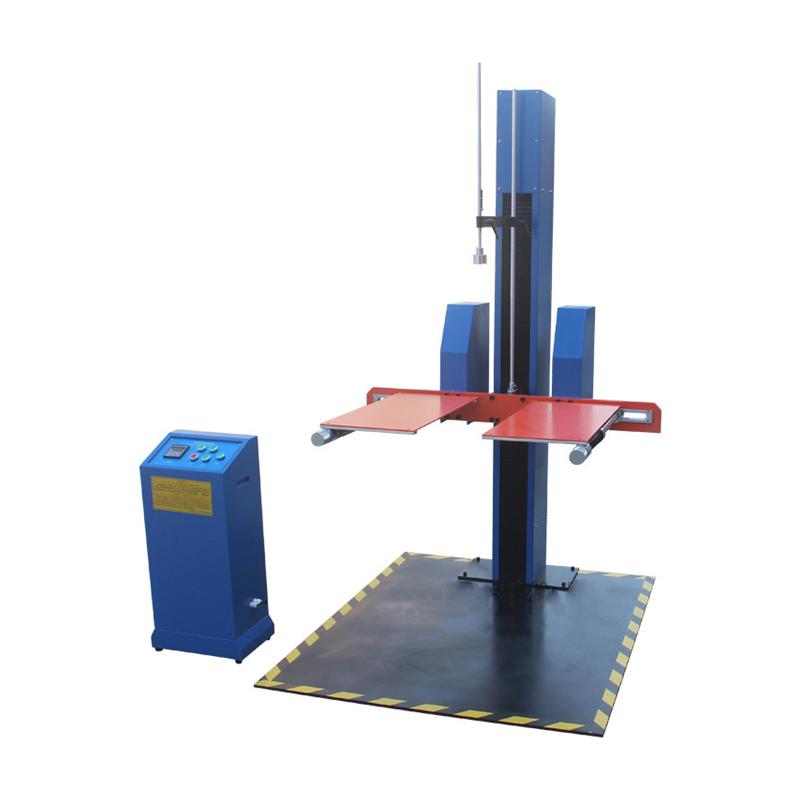

AISRY ASR-8515 Double wing falling test machineSpecifications
| LIST | VALUE |
|---|---|
| Drop height | 400~1500mm |
| Maximum specimen Weight | 80kg |
| Maximum specimen size | (L×W×H)1200×800×1000mm |
| Drop panel area | (L×W)1200×1400*10mm |
| Arm size | 300×750×8mm |
| Drop error | ±10mm |
| Control box size | (L×W×H)350×350×1100mm |
| Machine Weight | 450Kg net Weight: 300KG |
| Power | 1∮ ,AC380V,50Hz，10A |
| Transmission mode | Electric drive, manual reset |
AISRY ASR-8515 Double wing falling test machine Packing list
Host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
