Introduction
This machine is suitable for the impact life aging test of key switches, computer keyboards, conductive rubber keys, metal shrapnel keys (commonly known as pans) or the same type of keys. A professional programmer is used to control the whole process of the key life test, and the life test can be carried out at the same time. Pain test, the button is damaged and automatically stops. When the object under test is always "conducted" or always "disconnected", the machine will stop transporting within 8 seconds.

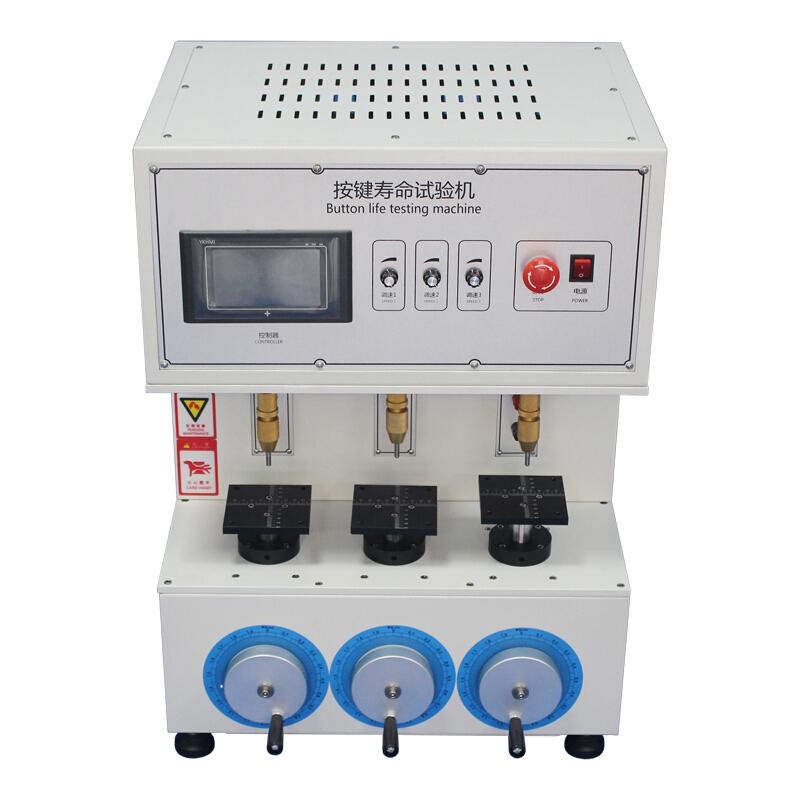

AISRY ASR-5617A Three-axis key Life Cycle TesterSpecifications
| LIST | VALUE |
|---|---|
| Number of products tested | 3PCS |
| Counter | 8-Bit, power-down memory |
| Power supply device | 0-60V DC; current: 0-3A adjustable, while displaying current and Voltage values |
| Test speed | 0-300 times/min (0-120 optional) |
| Strike switch touchpoint power | 0-500Gf adjustable |
| Test head telescopic stroke | 0-20mm |
| Lifting platform travel | 60mm |
| Machine size | W500 * D420 * H480mm |
| Machine Weight | About 60kg |
| Power | AC220V 5A |
| Fixture range of motion | 50 * 50 adjustable |
AISRY ASR-5617A Three-axis key Life Cycle Tester Packing list
Host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
