Introduction
It is used for plugging and unplugging tests of various connectors. It has setting times, adjustable speed and stroke, and displays speed values. This machine is suitable for plugging and unplugging tests of various connectors. It can display the continuous change value and peak value of plugging force , and has the number of times setting, the speed of the pulling stroke is adjustable, and the value of the number of degrees is displayed. It can be described as the most cost-effective insertion force testing machine on the market.
Features
1. With overload and heavy setting automatic stop alarm function
2. With automatic saving function, it can automatically save up to ten points and calculate the average value
3. Use the list method to list and test the saved test data
4. Users with an administrator password can modify the power-on password.
5. Using software to calibrate the load value
6. Use full Chinese prompts to set internal functions, easy and simple to operate

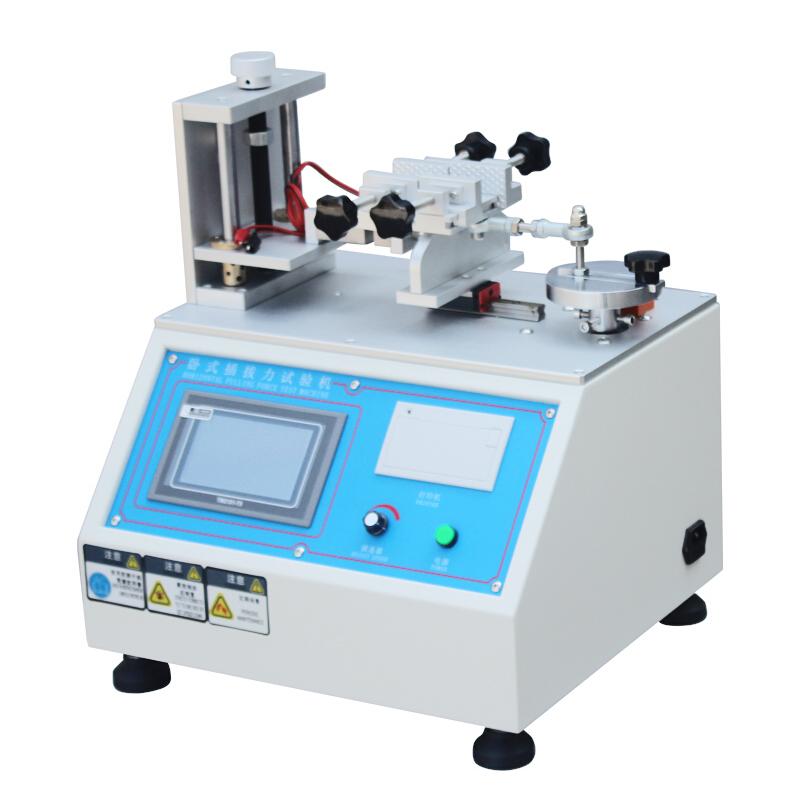

AISRY ASR-5620 Touch screen insertion force testing machineSpecifications
| LIST | VALUE |
|---|---|
| Frequency range | 0-999999 |
| induction method | Precision Sensors |
| Insertion force display | liquid crystal display |
| Display | touch screen |
| motor | 90W |
| Machine Weight | (Approx.) 80kg |
| Display | External instrument, with peak hold function, N, LB, kg three unit conversion functions |
| Speed regulation range | 0-60 times/min |
| Insertion force range | 0-50kgf |
| Stroke adjustment range | 5-45MM |
| Machine size | 550x450x780mml |
| supply Voltage | 220V±10% |
AISRY ASR-5620 Touch screen insertion force testing machine Packing list
Host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
