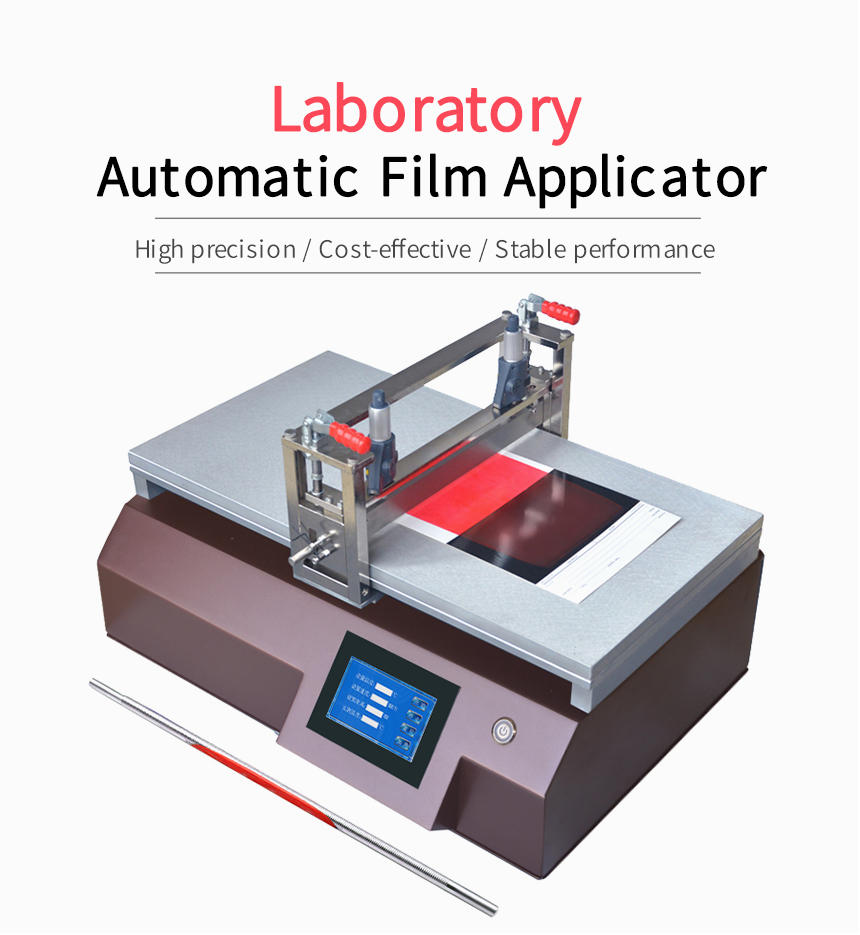

China TBJ-A3 bar Vacuum chuck Lab Film Applicator Electric coater
Silent vibration-free motor, high film proofing effect Repeatability, touch operation to reduce manual external interference, Applicator rod flatness is high, using different viscosity materials, can be customized.
zy
TBJ-A3
TBJ-A3-XB
TBJ-A3 (Customized)
-
HuiNuo TM 2100/03 Double Drawdown Blade Heating Coater (with electrostatic precipitator system) laboratory coating machine, width 100 * 30cm
Login -
TM3200Pro High-accuracy Wire Rod & Drawdown Blade Automatic film Coater with Vacuum Table
$ 4113.00 -
HuiNuo TM3000/11D drawdown Bar & blade coater (floor model) Effective area 120 * 60cm
$ 6289.00 -
China TBJ-B3-DJ1 Heating Removable Drawdown blade Lab Film Applicator with Heating Automatic Film Applicator
$ 5325.00 -
HuiNuo TM3300Pro/28 drawdown Bar & Blade heating Vacuum adsorption coater Effective area 50 * 30cm
$ 7066.00
The touch laboratory TBJ-A wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.
Optional
|
|
|

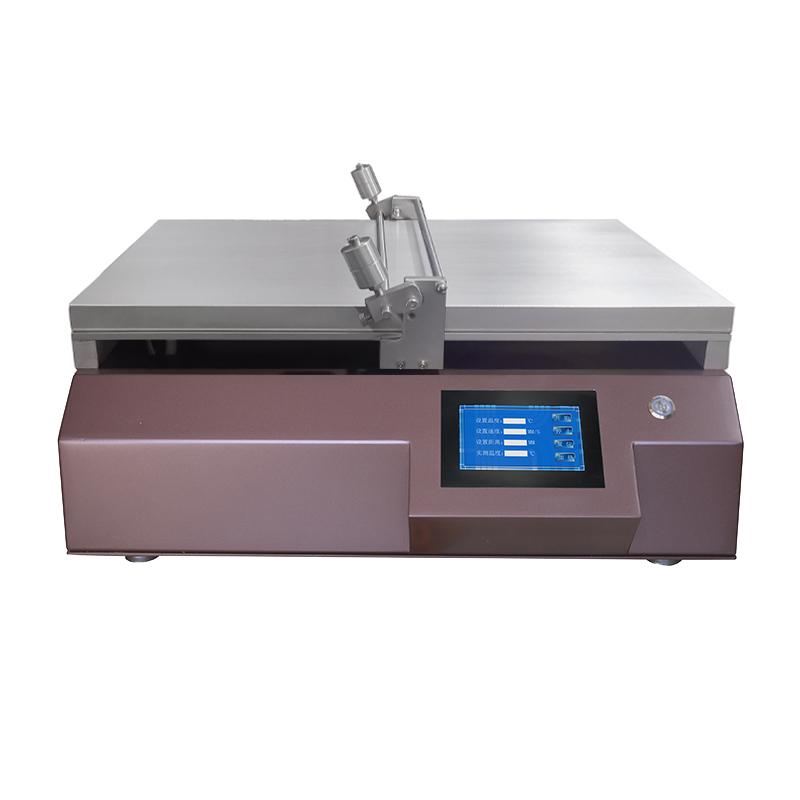

zy TBJ-A3 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating method | bar |
| Mayer Rod Thickness Range | 1-571.5 μm (Spreader thickness according to bar model) |
| Mayer Rod Accuracy | ±0.001mm |
| Coating size | 300 * 400Mm (Miscellaneous size can be customized) |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-400mm |
| Vacuum pump configuration | external |
| Vacuum Area | 300 * 400Mm (can be customized) |
| vacuum aperture | Φ1.2mm |
| Vacuum pump size | 380*180*280mm |
| Substrate clamping method | Vacuum adsorption |
| Control mode | Touch screen control |
| Total power consumption | 2060W |
| Host Power Supply | 220V 50Hz |
| Dimension | 690*410*520mm |
| Net Weight | 65Kg |
| Bottom plate material | aluminum alloy |

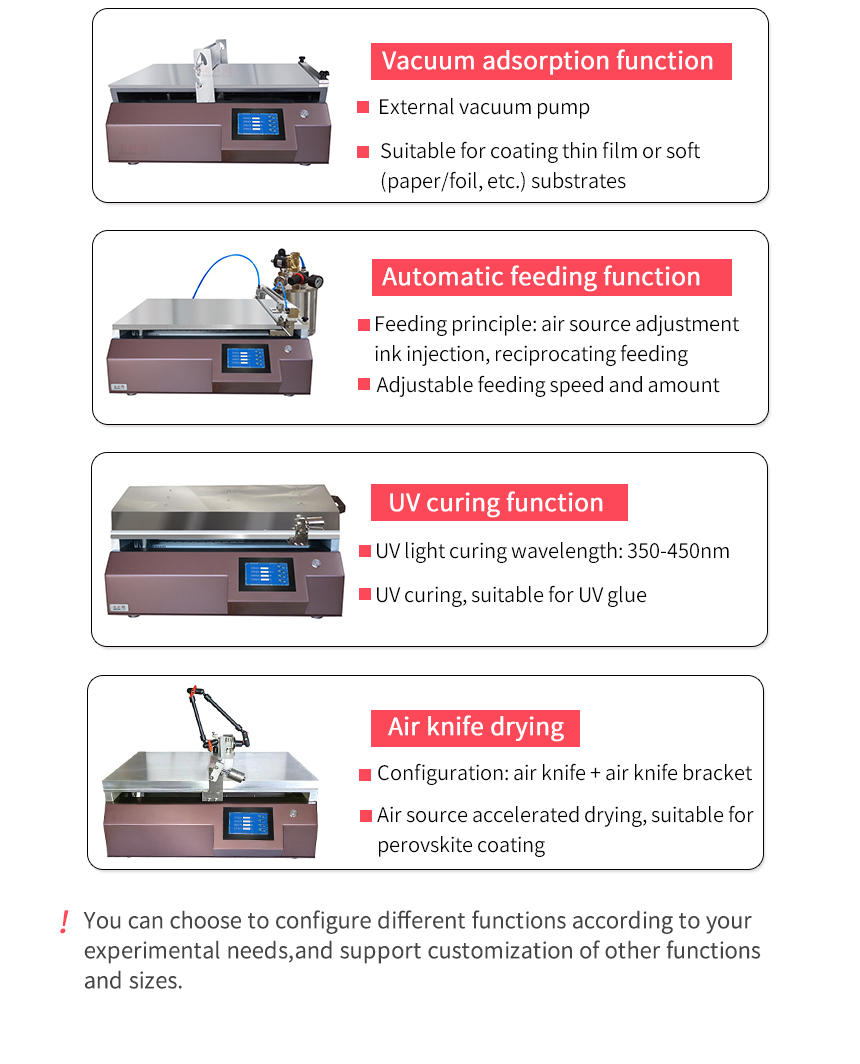

| Optional Accessories | Substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
zy TBJ-A3 Automatic Film Applicator Packing list
Film Applicator X1, China bar X1, external vacuum pump X1, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
