BOZHEN BZ-TR-24G Soil Drying Oven 24 position independent temperature control
BOZHEN BZ-TR-24G soil Drying Oven is a soil Drying Oven with an independent 24-position sample chamber, temperature range RT~ 50 ℃, size 200 * 120 * 300mm, BZ-TR-24G built-in secondary over-temperature protection device, The whole process can be adjusted thermostatic, the power reaches 2000W.
BoZhen
BZ-TR-24G
-
BOZHEN DGG-9246A Vertical Forced Air Drying Oven 225L/300 ℃
$ 770.00 -
YIHENG BPZ-6933LC Vacuum Oven (formerly BPZ-6930LC)
$ 18177.00 -
YIHENG DZF-6090 Vertical Vacuum Oven (microcomputer with timing)
$ 2278.00 -
BOZHEN 766-0A Far infrared Drying Oven
$ 569.00 -
Kenton 101-4 Dial-Type electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/640L
$ 698.00
Introduction
24 independent temperature-controlled soil Drying Ovens, using simulated indoor air flow mode, combined with external power supply and constant temperature to quickly dry soil samples, can complete the drying process of samples with different temperature requirements at the same time, and the sample room is controlled independently , During the air-drying process of stored samples, cross-contamination of samples is avoided. Suitable for soil sample preparation requirements at different temperatures. It is of positive significance to ensure the sustainable development of agriculture and develop organic agriculture.
main feature
1. The temperature of 24 studios is controlled independently, and the temperature controller is installed on the door of the independent studio, which has a beautiful appearance. Simple operation, suitable for different temperature soil sample preparation requirements
2. Heating and drying air technology improves the drying efficiency of samples.
3. There is an independent 24-sample chamber inside the box, which separates the samples and prevents cross-contamination.
4. Adopt air disturbance technology to simulate indoor air flow to achieve the purpose of rapid air drying.
5. The air source is indoor air, which is filtered, adsorbed, and 100-level purification and other three-level purification to remove suspended particles, moisture, organic pollutants, etc., to prevent secondary cross-contamination of samples.
6. The sample chamber is made of stainless steel to avoid chemical corrosion and organic adsorption; easy to clean.
7. The sample room is equipped with an observation window, which is convenient for customers to observe the status of the sample at any time.
8. The sample room can be equipped with a tray, which can directly place ordinary soil samples or samples with high water content such as river sediment.
9. The bottom is equipped with rollers for easy movement.

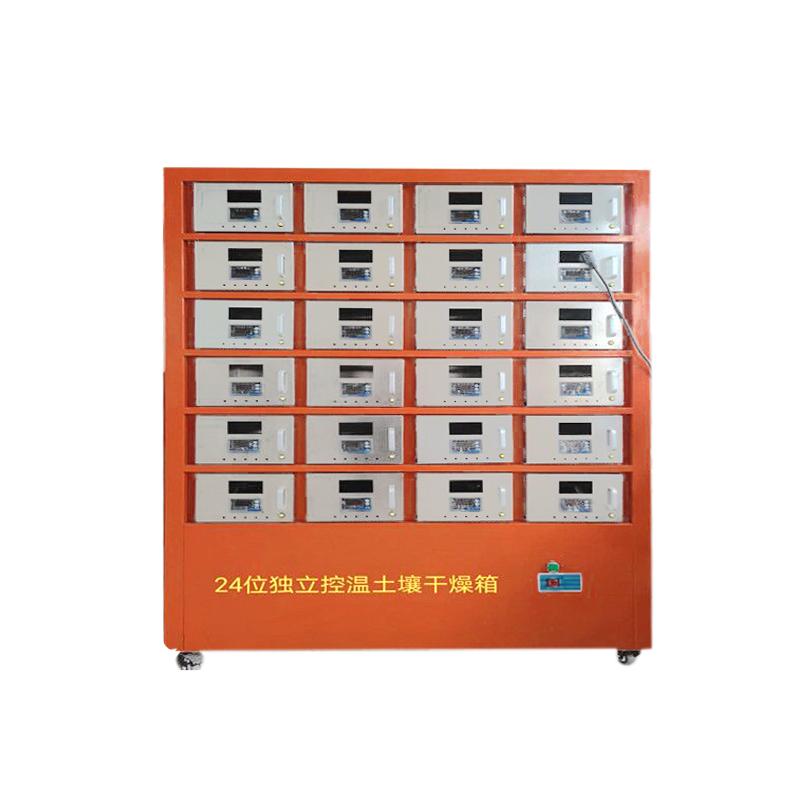

BoZhen BZ-TR-24G 24 independent temperature control soil Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Enclosure Material | Good steel sheet metal fabrication, surface electrostatic spraying |
| Inner chamber material | Made of brushed/mirror stainless steel. |
| Temperature measurement port | At the geometric point of the purification air outlet, ensure uniform temperature in the studio. |
| Power cord | With plug on the right side of the box |
| Thermostat | PID automatic calculation, temperature measurement, set temperature |
| Heating method | Stainless steel round heating tube |
| Purification device | Using initial effect filtrate, graphite adsorption, 100 level effective filtrate |
| Machine Weight | 80 kg |
| Standard Encasement | Encasement |
| Temperature range | RT+~50℃ |
| Number of sample chambers | 24 pieces |
| Interior size | 200*120*300*24 |
| Overall power | 2000W |
| Dimensions | 1100*430*1600mm |
| Power Supply | 220V，50Hz |
| temperature transducer | PT100 |
| Thermostat | PID adjustment, display Accuracy 0.1 ℃ |
| Complete sets of electrical appliances | Adopt brand contactor, cooling fan, solid state relay; |
| Thermostat | 24 can be set independently. |
| Safety Devices | Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature interruption. |
| Operational Features | Full scale adjustable thermostatic, constant operation. |
BoZhen BZ-TR-24G 24 independent temperature control soil Drying Oven Packing list
Host X1, tray X24, manual X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
