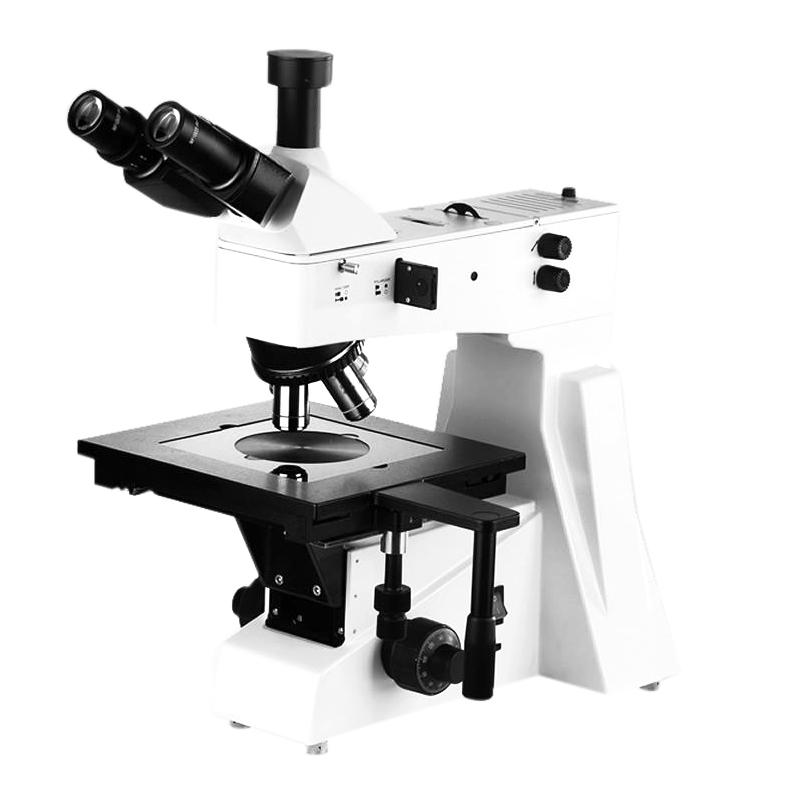

TEELEN XTL-302 Brightfield Upright Metallurgical Microscopy

Instrument use

Upright metallographic microscopes are suitable for microscopic observation of opaque objects. Adopting excellent infinity optical system and modular function design concept, the system can be easily upgraded to realize polarized light observation, dark field observation and other functions. The compact and stable high-rigidity main body fully reflects the anti-vibration requirements of micromanipulation. The ergonomic design meets the requirements of human engineering, which makes the operation more convenient and comfortable, and the space is wider. It is suitable for microscopic observation of metallographic structure and surface morphology, and is a satisfactory instrument for the research of metallography, mineralogy, and precision engineering.

Features

• Equipped with wide-field eyepieces and long-distance plan achromatic objectives (without cover glass), the field of view is large and clear.

• Equipped with a stage with a large moving range, the moving range: 8"×8" (204mm×204mm).

• Coarse and fine motion coaxial focusing mechanism, coarse motion adjustable, with limit locking device, fine motion scale value: 0.8μm.

• 6V 30W halogen lamp with adjustable brightness.

• The trinocular lens tube can be freely switched between normal observation/polarized light observation, bright field/dark field observation, and can perform 100% light-transmitting photography.




The whole machine X1, manual X1, objective lens 5X/10X/20X/50X/80X each x1, eyepiece 10X (22mm) pair, trinocular observation head x1 (including CCD interface x1), power cord x1, dust cover x1, polarizing plate x1, fuse x1, inner hexagonal screw driver x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
