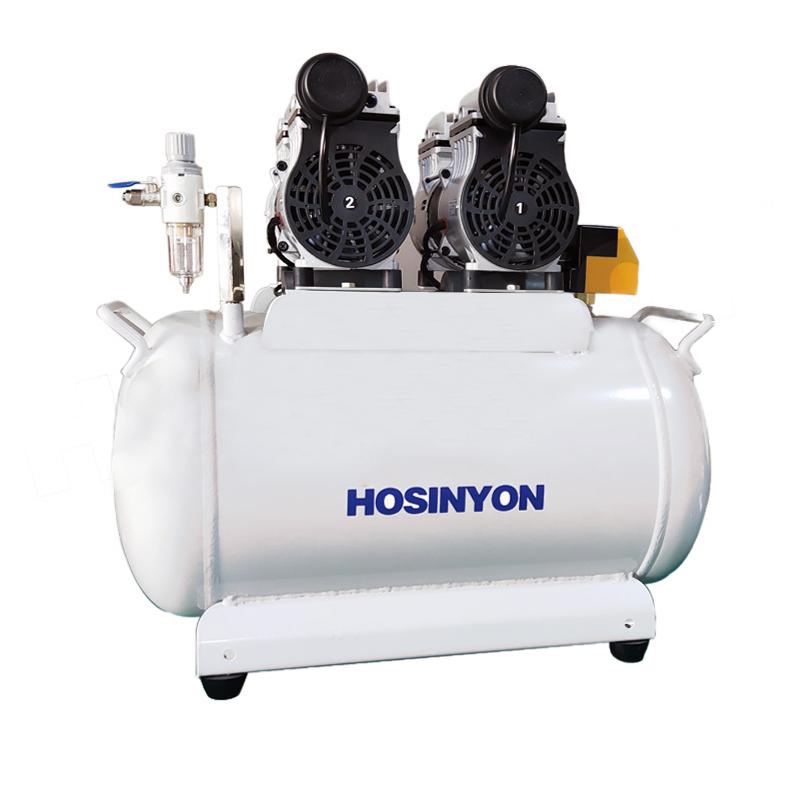

Haoxinyang HW52 Silent Oil Free Air Compressor
The motor of Haoxinyang HW52 silent oil-free Air Compressor adopts imported movement, with strong power, exhaust volume is 230L/min, noise value is 53dB, gas storage tank capacity is 60L, and the adjustable pressure induction detection range of HW52 silent oil-free Air Compressor is 5-8bar, which can be adapted to many industries.
HaoXinYang
HW52
-
GREELOY GA-84 silent oil-free Air Compressor Power is 3200W with 4 pump heads
$ 1874.00 -
Haoxinyang HM750 Oil Free Air Compressor Head
$ 304.00 -
Chinese BW1104 Oil-free Air Compressor 1000L/min@0MPa
$ 1182.00 -
Dasheng (4 pump heads) -CS eliminating speaker (iron shell) noise reduction 10dB
$ 366.00 -
Reciprocating compressor DASHENG DA7002 Power 1500w
$ 1206.00
product advantages
1. The motor adopts imported movement, which is powerful and durable.
2. The interior of the gas storage tank is treated with anti-rust and anti-bacteria to ensure the cleanliness of the gas and the safety of the product from the source.
3. The ratio of pressure and gas production obtained through a large number of experiments and demonstrations can quickly produce the most gas source under the condition of the least energy consumption, and the start and stop of the machine are all automatically designed, which not only saves electricity and worry.
4. The machine is pure oil-free design, and the exhaust gas is extremely clean, which meets the strict requirements of supporting equipment for gas sources, ensures the safety of people in contact, and is more in line with the new world concept of "green and environmental protection".
5. Each product is subjected to a leakage and resistance test by a withstand Voltage Tester, and the muffler box is pasted with full flame-retardant muffler cotton to effectively eliminate product safety hazards. and silencer.
6. Simple operation, ready to use when plugged in, fully automatic design, no need for a special person to be on duty; the air pressure can be adjusted freely according to the requirements of use, no complicated maintenance is required, only regular drainage is required.
7. According to the needs of different industries, dryers or filters with different precision requirements can be selected, and the dew point can reach -20 to -60.
Application
Suitable for laboratory instruments, gas chromatography, mass spectrometry, 3D metal printing, petroleum refining, food manufacturing, biomedicine, chemical energy, environmental protection, water quality testing, industrial production, aerospace technology, automobile braking and other industries
Selection Reference Table
| Machine head power (W) | Number of heads (pieces) | Corresponding model | Displacement (L/min) | Gas tank (L) | Noise (dB) | Pressure switch range (bar) | none | With silencer box (S) | with dryer (D) | With silencer box Dryer DS | |||||
| conventional | customized | Net weight (Kg) | Size (cm) | Net weight (Kg) | Size (cm) | Net weight (Kg) | Size (cm) | Net weight (Kg) | Size (cm) | ||||||
| 550 | 1 | HW51 | 116 | twenty two | 52 | 5~8 | 6~8 | 28 | 37*33*55 | 46 | 52*45*76 | 41 | 37*48*55 | 63 | 52*60*76 |
| 2 | HW52 | 230 | 60 | 53 | 5~8 | 6~8 | 45 | 66*35*63.8 | 65 | 76*45*85 | 58 | 66*50*63.8 | 86 | 76*60*85 | |
| 3 | HW53 | 348 | 90 | 53 | 5~8 | 6~8 | 70 | 90*35*63.8 | 105 | 100*45*85 | 82 | 90*50*63.8 | 123 | 100*60*85 | |
| 4 | HW54 | 462 | 120 | 53 | 5~8 | 6~8 | 90 | 112*35*63.8 | 123 | 112*45*85 | 103 | 112*50*63.8 | 141 | 112*60*85 | |
| 5 | HW55 | 580 | 150 | 54 | 5~8 | 6~8 | 120 | 132*35*63.8 | 156 | 142*45*85 | 133 | 132*50*63.8 | 174 | 142*60*85 | |
| 750 | 1 | HW71 | 152 | 40 | 52 | 5~8 | 6~8 | 28 | 42*33*65 | 50 | 52*45*76 | 41 | 42*48*65 | 65 | 52*60*76 |
| 2 | HW72 | 308 | 60 | 53 | 5~8 | 6~8 | 48 | 66*35*65 | 75 | 80*50*86 | 61 | 66*50*65 | 88 | 80*60*86 | |
| 3 | HW73 | 456 | 90 | 53 | 5~8 | 6~8 | 72 | 90*35*65 | 108 | 110*50*76 | 98 | 90*50*65 | 125 | 110*60*86 | |
| 4 | HW74 | 608 | 120 | 53 | 5~8 | 6~8 | 92 | 112*35*65 | 126 | 115*50*76 | 105 | 112*50*65 | 143 | 120*60*86 | |
| 5 | HW75 | 758 | 150 | 55 | 5~8 | 6~8 | 128 | 132*37*65 | 158 | 142*50*76 | 142 | 132*52*65 | 176 | 142*60*86 | |
| 1100 | 1 | HW101 | 200 | 50 | 54 | 5~8 | 6~8 or 7~9 | 30 | 65*34*66 | 59 | 75*44*78 | 43 | 65*50*66 | 85 | 75*60*78 |
| 2 | HW102 | 400 | 100 | 56 | 5~8 | 6~8 or 7~9 | 57 | 77*33*74 | 90 | 87*44*86 | 72 | 77*50*74 | 116 | 87*60*86 | |
| 3 | HW103 | 600 | 160 | 58 | 5~8 | 6~8 or 7~9 | 125 | 120*40*89 | 156 | 130*44*99 | 140 | 120*55*89 | 190 | 130*54*101 | |
| 4 | HW104 | 800 | 200 | 60 | 5~8 | 6~8 or 7~9 | 160 | 150*40*89 | 192 | 160*44*101 | 185 | 150*55*89 | 237 | 160*54*101 | |
| 5 | HW105 | 1000 | 240 | 63 | 5~8 | 6~8 or 7~9 | 189 | 172*40*89 | 228 | 182*44*101 | 215 | 172*55*89 | 280 | 182*54*101 | |
| 1500 | 1 | HW151 | 240 | 50 | 54 | 5~8 | 6~8 or 7~9 | 30 | 65*34*66 | 59 | 75*44*78 | 43 | 65*50*66 | 85 | 75*60*76 |
| 2 | HW152 | 480 | 100 | 58 | 5~8 | 6~8 or 7~9 | 57 | 83*42*82 | 90 | 95*64*99 | 72 | 83*42*82 | 116 | 95*78*99 | |
| 3 | HW153 | 720 | 160 | 60 | 5~8 | 6~8 or 7~9 | 125 | 120*40*89 | 156 | 130*50*99 | 140 | 120*54*89 | 190 | 130*65*101 | |
| 4 | HW154 | 960 | 200 | 63 | 5~8 | 6~8 or 7~9 | 160 | 150*40*89 | 192 | 160*50*101 | 185 | 150*54*89 | 237 | 160*68*100 | |
| 5 | HW155 | 1200 | 240 | 65 | 5~8 | 6~8 or 7~9 | 189 | 172*40*89 | 228 | 182*50*100 | 215 | 172*54*90 | 280 | 182*68*100 | |
HaoXinYang HW52 Silent Oil Free Air CompressorSpecifications
| LIST | VALUE |
|---|---|
| power | 1100W |
| Displacement | 230L/min |
| Noise value | 53dB (A) |
| Gas storage tank Volume | 60L |
| exhaust pressure | 5~8bar |
| Net Weight | 45KG |
| Dimensions | 66*35*63.8mm |
HaoXinYang HW52 Silent Oil Free Air Compressor Packing list
Host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
