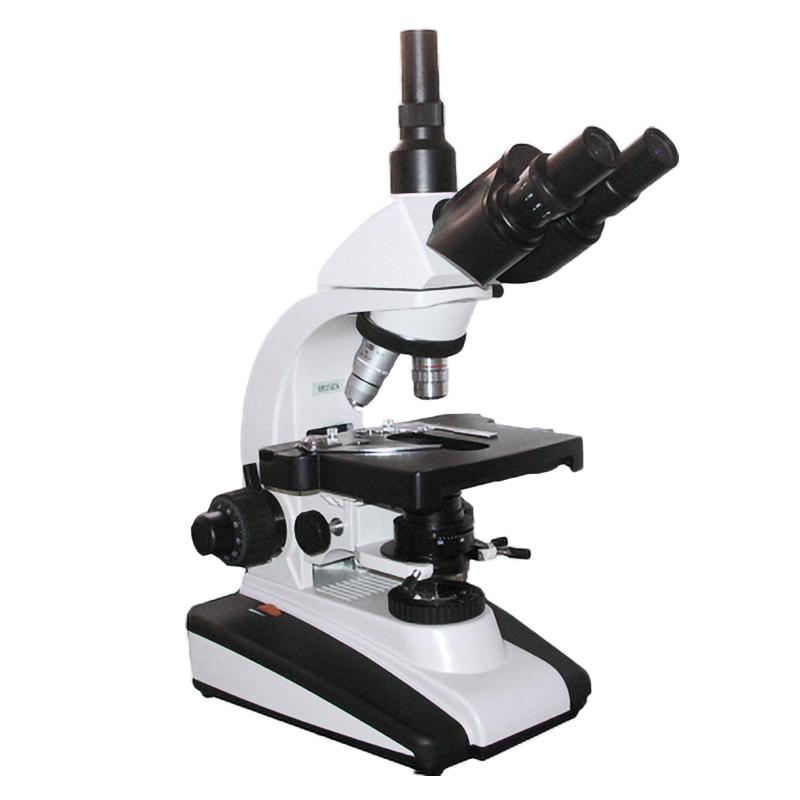

ShangGuang BM-20A Trinocular Microscope
Eyepiece 10X objective 4X, 10X, 40X100X, 20X (available on five holes) Four-hole or five-hole, color difference objective, electric light source (40X-1000X) Kohler Lighting
Brand
SKU: NB031497
ShangGuangLiuChangModel
BM-20A
VS
What else did others buy
Genuinegoods
BM-20A
Trinocular Biological Microscope
Eyepiece 10X objective 4X, 10X, 40X100X, 20X (available on five holes) Four-hole or five-hole, color difference objective, electric light source (40X-1000X) Kohler Lighting
Introduction
The trinocular biological microscope XSP-BM20A has been widely recognized by various Applications and levels for its high performance, flexibility and stability! Very good streamlined design, novel appearance, excellent optical system and reliable operation structure, make the imaging clearer, easier to operate, and bring you a new feeling. It can be widely used in the observation and research of biological, medical, agricultural and animal husbandry, textile fibers, and pharmaceutical chemical microparticles.
Functions and Features
1. It adopts humanized design, beautiful appearance and convenient operation.
2. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.
3. Adopting Kohler lighting and adjustable Abbe condenser, the illumination is uniform and the contrast is good.
4. Two optical path outputs, one for observation and one for connecting camera.
5. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.
optional parts
| name | Specifications |
| Plan eyepiece | 20X |
| Micrometer eyepiece: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape | |
| objective lens | Achromatic objectives: 20X, 60X, 80X, 100X (dry) |
| ruler | Objective micrometer 0.01mm |
| Eyepiece micrometer: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape | |
| camera port | Camera interface: 1X, 0.5X |
| Digital camera interface: 1X, 2.5X/4X | |
| Camera | ①Japan JVC camera + image acquisition card |
| With single, timing, continuous image acquisition, multimedia connection, printout and other functions | |
| ②Digital camera 1.3 million, 2 million, 3.2 million, 5 million pixels | |
| It has the functions of single, timing, and continuous image acquisition, display scale, measurement, etc., and can be connected to multimedia, printing, EMAIL and other ways of output. | |
| ③Digital camera + basic measurement management software | |
| 15 million pixel Canon SLR camera, with real-time image acquisition, image fusion, display scale, measurement and other functions, can be connected to multimedia, printing, EMAIL and other ways of output | |
| Image analysis software | ①Basic management software UV |
| Single sheet, timing, and continuous acquisition; scale and magnification can be displayed; length, angle, radius, perimeter, area, etc. can be measured for microscopic images; it can be connected to multimedia, print, EMAIL, etc. Output. | |
| ② Bioanalysis software UV-P | |
| Single sheet, timing, and continuous acquisition; rulers can be displayed at any position and length; various morphological analysis of biological cells, germs, glands, etc. in the field of view can be performed, and output can be connected to multimedia, fixed-time printing, and EMAIL . | |
| ③Particle size analysis software UV-G | |
| It can automatically measure and analyze the particles in the field of view, and output the distribution map and integral distribution map in a linear or nonlinear statistical manner according to the particle size, area, shape and other parameters of the particle, and can also obtain D10, D50, D90, etc. Common statistics. Can be connected to multimedia, printing, EMAIL and other ways of output. | |
| ④ Fiber analysis software CU-1/CU-2 | |
| It can measure and analyze the diameter, content, and cross-sectional area of various fibers such as animal, chemical, cotton, and carbon according to national standards, and can make statistics and output reports. Can be connected to multimedia, printing, EMAIL and other ways of output. |
VS
ShangGuangLiuChang BM-20A Trinocular Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X / f18 ・ WF16X / f11 |
| Objective for eliminating color difference | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total magnification | 40X~1600X |
| observation head | Hinged 45 ° tilt, 360 ° swirl/spin |
| converter | Four holes (inward ball positioning) |
| Coarse fine-tuning focus range | 30mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit |
| stage | Double-layer mechanical type, size 153X135mm Moving range 80X50mm Vernier grid value 0.1mm |
| Mechanical barrel length: | 160mm |
| pupil distance | 55-75mm |
| condenser | 1.25NA Abbe condenser, variable light bar with color filter (up and down) |
| Lighting: | 220V Kohler lighting brightness adjustable, tungsten halogen bulb 6V20W |
| Instrument Weight | Net Weight 7 kg Gross Weight 8.5 kg |
| Instrument size | Instrument size 22X36X36.5 (cm) Packaging Dimensions 33.5X28X59 (cm) |
ShangGuangLiuChang BM-20A Trinocular Biological Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
