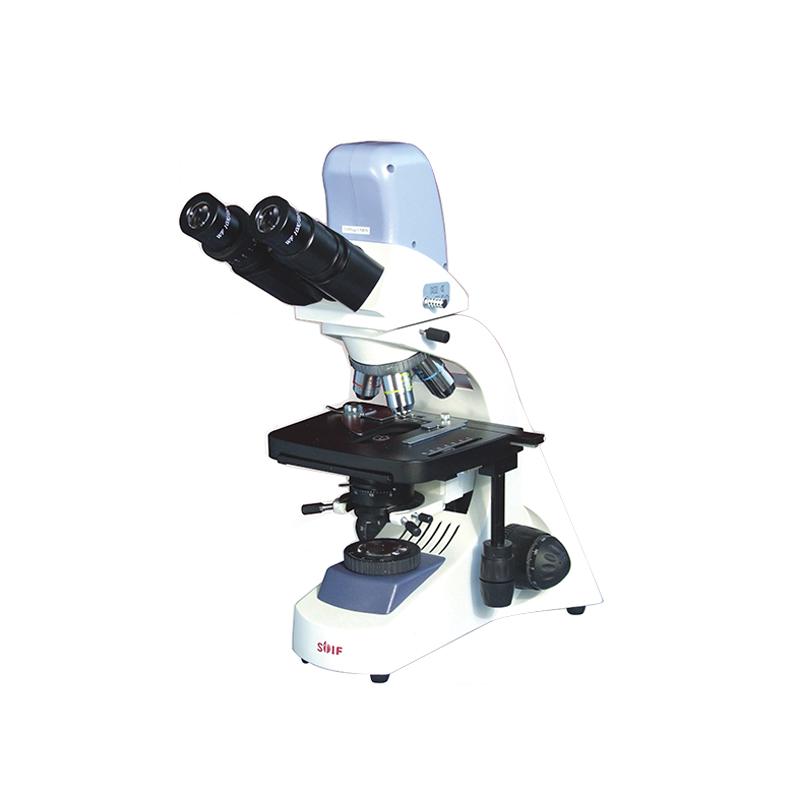

ShangGuang BM-18LB Digital Camera Microscope (Built-in)
Eyepiece 10X objective 4X, 10X, 40X100X, 20X (available on five holes) four-hole or five-hole, infinity objective, electric light source (40X-1000X) digital all-in-one machine
ShangGuangLiuChangIntroduction
The digital microscope is an innovation of the microscope, breaking through the limit of the microscope function and creating a new era of microscopy technology! Through the redesign of the microscope optical path, a CMOS sensor is implanted in the third eye of the microscope It is transmitted to the computer in the form of digital signal, and the image is truly reproduced on the computer monitor. The application of digital technology in the microscope makes the application of the microscope more extensive. The image measurement software specially developed for digital microscopes allows users to understand the image data at a glance. The image displayed on the computer monitor is hundreds or even thousands of times larger than the image you see in the eyepiece. Make your observation of specimens clearer and more convenient.
optional parts
| eyepiece | WF16X, WF20X |
| objective lens | 20X, 60X(S) |
| Camera | 2 million pixels, 3 million pixels, 5 million pixels |
ShangGuangLiuChang BM-18LB Digital Camera Microscope (Built-in)Specifications
| LIST | VALUE |
|---|---|
| Infinity color difference objective | (Magnification/numerical aperture) 4X/0.1NA, 10X/0.25NA, 40X/0.65 NA, 100X (oil)/1.25 NA |
| Flat field eyepiece | (Magnification/Field Diameter) 10X/Φ22 mm |
| Total magnification | 40X~1000X |
| observation head | 360 ° swirl/spin, 30 ° tilt, dumpling chain with 1.30 million pixel CMOS digital camera binocular |
| Inclined tube auxiliary lens coefficient | 1x |
| Pupil distance adjustment range | 55-75 mm |
| condenser | 1.25NA Abbe condenser with variable light bar and color filter |
| Coarse fretting focusing range | 25 mm, fretting grid value 0.002 mm |
| stage | 180 × 150 mm, movement range 75 × 50 mm, vernier 0.1 mm |
| light source | 220V electric light source Kohler lighting, adjustable brightness |
| Tungsten Halogen Bulb | 6V/20VA |
ShangGuangLiuChang BM-18LB Digital Camera Microscope (Built-in) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
