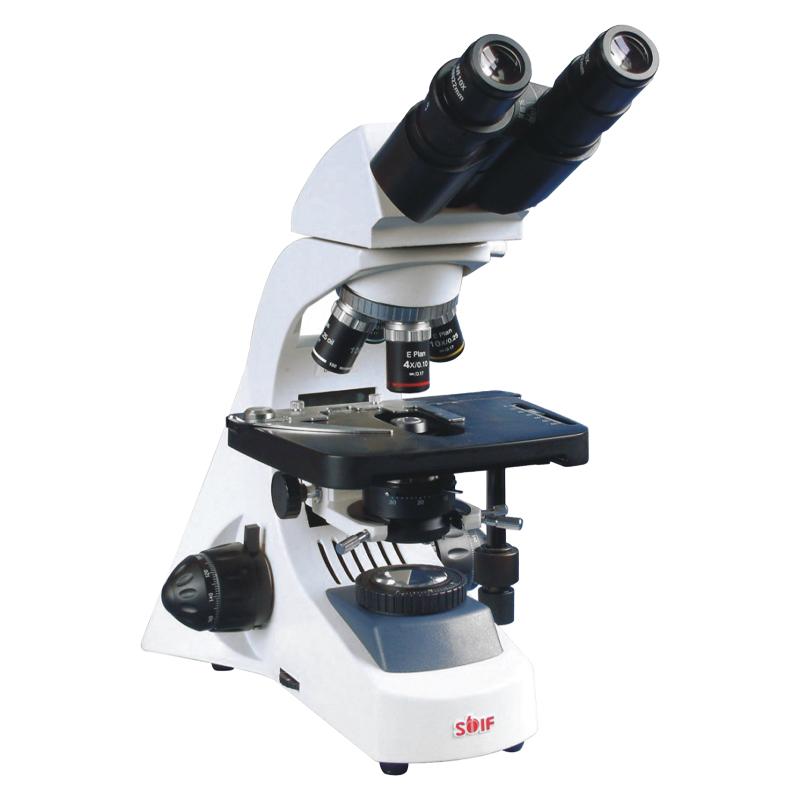

ShangGuang BM-19 Binocular Biological Microscope
Eyepiece 10X objective 4X, 10X, 40X100X, 20X (available on five holes) Four-hole or five-hole, color difference objective, electric light source (40X-1000X) Kohler Lighting
ShangGuangLiuChang
BM-19
Introduction
The main body of the binocular biological microscope XSP-BM19 adopts the integrated design of the machine base, and the humanized functional layout meets the requirements of ergonomics. Elegant shape, excellent optical system and reliable operation structure make the imaging clearer and the operation easier, bringing you a new feeling. It can be widely used in the observation and research of biological, medical, agricultural and animal husbandry, textile fibers, and pharmaceutical chemical microparticles.
Functions and Features
1. Adopting the integrated design of the rack, the shape is beautiful and generous.
2. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.
3. Adopting Kohler lighting and adjustable Abbe condenser, the illumination is uniform and the contrast is good.
4. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.
optional parts
| name | Specifications |
| Plan eyepiece | WF20X |
| Micrometer eyepiece: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape | |
| objective lens | Achromatic objectives: 20X, 60X, 80X, 100X (dry) |
| ruler | Objective micrometer 0.01mm |
| Eyepiece micrometer: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape | |
| Camera | Electronic eyepiece 350,000, 1.3 million, 2 million, 3.2 million, 5 million (pixels) |
| It has the functions of single sheet, timing, and continuous image acquisition, display scale, measurement, etc., and can be connected to multiple output methods such as multimedia, printing, and EMAIL. |
ShangGuangLiuChang BM-19 Binocular Bio-MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X / f18 ・ WF16X / f11 |
| Objective for eliminating color difference | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total magnification | 40X~1600X |
| observation head | Hinged 45 ° tilt, 360 ° swirl/spin |
| converter | Four holes (inward ball positioning) |
| Coarse fine-tuning focus range | 30mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit |
| stage | Double-layer mechanical type, size 153X135mm Moving range 80X75mm Vernier grid value 0.1mm |
| Mechanical barrel length: | 160mm |
| pupil distance | 55-75mm |
| condenser | 1.25NA Abbe condenser, variable light bar with color filter (up and down) |
| Lighting: | 220V Kohler lighting brightness adjustable, tungsten halogen bulb 6V20W |
| Instrument size | Instrument size 21X27X40 (cm) Packaging Dimensions 30X36.5X58 (cm) |
ShangGuangLiuChang BM-19 Binocular Bio-Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
