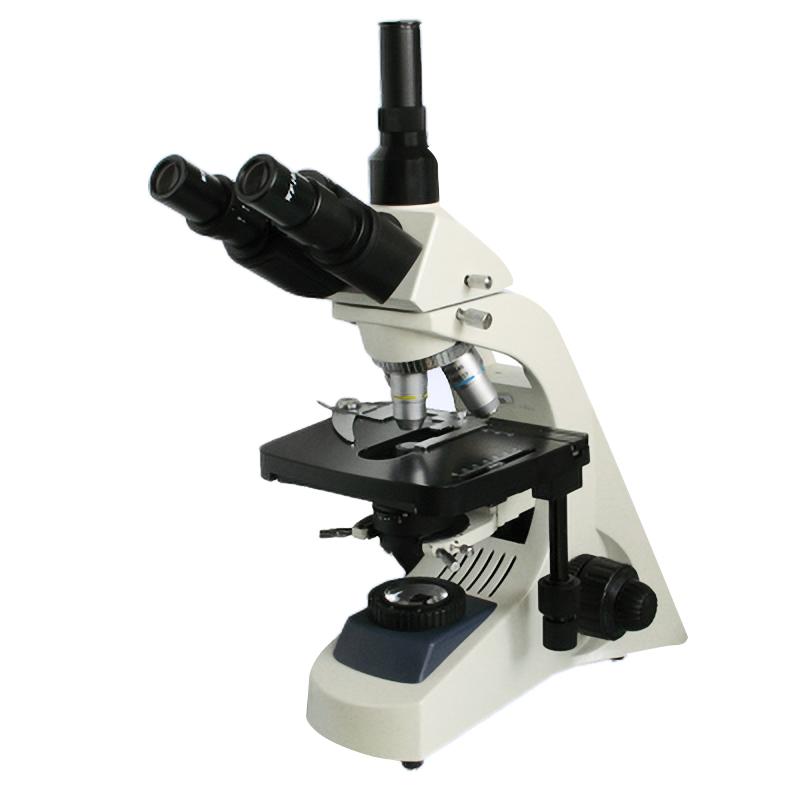

ShangGuangLiuChang BM-19A Trinocular Biological Microscope

ShangGuang BM-19A Trinocular Microscope

Eyepiece 10X objective 4X, 10X, 40X100X, 20X (available on five holes) Four-hole or five-hole, color difference objective, electric light source (40X-1000X) Kohler Lighting

Brand

SKU: NB031504

ShangGuangLiuChang

Model

BM-19A

Get Quote

ShangGuangLiuChang shop

Information

Datasheet

What else did others buy

Genuinegoods

ShangGuangLiuChang BM-19A Trinocular Biological MicroscopeOverview
Specifications
Comments
FAQs

BM-19A

Trinocular Biological Microscope

Eyepiece 10X objective 4X, 10X, 40X100X, 20X (available on five holes) Four-hole or five-hole, color difference objective, electric light source (40X-1000X) Kohler Lighting

Introduction

The main body of the trinocular biological microscope XSP-BM19A adopts the integrated design of the machine base, and the humanized functional layout meets the requirements of ergonomics. Elegant shape, excellent optical system and reliable operation structure make the imaging clearer and the operation easier, bringing you a new feeling. It can be equipped with a photographic camera device to process, analyze, save and output images! Can be widely used in scientific research units, industrial and mining enterprises, hospitals, medical and health industries.

Functions and Features

1. Adopting the integrated design of the rack, the shape is beautiful and generous.

2. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.

3. Adopting Kohler lighting and adjustable Abbe condenser, the illumination is uniform and the contrast is good.

4. Two optical path outputs, one for observation and one for connecting camera.

5. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.

optional parts

name	Specifications
Plan eyepiece	20X
Plan eyepiece	Micrometer eyepiece: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape
objective lens	Achromatic objectives: 20X, 60X, 80X, 100X (dry)
ruler	Objective micrometer 0.01mm
ruler	Eyepiece micrometer: 0.1 ruler shape, 0.05 ruler shape, 0.5 mesh shape, 0.2 mesh shape, 0.1 coordinate shape
camera port	Camera interface: 1X, 0.5X
camera port	Digital camera interface: 1X, 2.5X/4X
Camera	①Japan JVC camera + image acquisition card
	With single, timing, continuous image acquisition, multimedia connection, printout and other functions
	②Digital camera 1.3 million, 2 million, 3.2 million, 5 million pixels
	It has the functions of single, timing, and continuous image acquisition, display scale, measurement, etc., and can be connected to multimedia, printing, EMAIL and other ways of output.
	③Digital camera + basic measurement management software
	15 million pixel Canon SLR camera, with real-time image acquisition, image fusion, display scale, measurement and other functions, can be connected to multimedia, printing, EMAIL and other ways of output
Image analysis software	①Basic management software UV
	Single sheet, timing, and continuous acquisition; scale and magnification can be displayed; length, angle, radius, perimeter, area, etc. can be measured for microscopic images; it can be connected to multimedia, print, EMAIL, etc. Output.
	② Bioanalysis software UV-P
	Single sheet, timing, and continuous acquisition; rulers can be displayed at any position and length; various morphological analysis of biological cells, germs, glands, etc. in the field of view can be performed, and output can be connected to multimedia, fixed-time printing, and EMAIL .
	③Particle size analysis software UV-G
	It can automatically measure and analyze the particles in the field of view, and output the distribution map and integral distribution map in a linear or nonlinear statistical manner according to the particle size, area, shape and other parameters of the particle, and can also obtain D10, D50, D90, etc. Common statistics. Can be connected to multimedia, printing, EMAIL and other ways of output.
	④ Fiber analysis software CU-1/CU-2
	It can measure and analyze the diameter, content, and cross-sectional area of various fibers such as animal, chemical, cotton, and carbon according to national standards, and can make statistics and output reports. Can be connected to multimedia, printing, EMAIL and other ways of output.

ShangGuangLiuChang BM-19A Trinocular Biological MicroscopeSpecifications

LIST	VALUE
Flat field eyepiece	WF10X / f18 ・ WF16X / f11
Objective for eliminating color difference	4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring)
Total magnification	40X~1600X
observation head	Trinocular, hinged 45 ° tilt, 360 ° swirl/spin
converter	Four holes (inward ball positioning)
Coarse fine-tuning focus range	30mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit
stage	Double-layer mechanical type, size 153X135mm Moving range 80X75mm Vernier grid value 0.1mm
Mechanical barrel length:	160mm
pupil distance	55-75mm
condenser	1.25NA Abbe condenser, variable light bar with color filter (up and down)
Lighting:	220V Kohler lighting brightness adjustable, tungsten halogen bulb 6V20W
Instrument Weight	Net Weight 6.9kg Gross Weight 9.4kg
Instrument size	Instrument size 21X27X40 (cm) Packaging Dimensions 30X36.5X58 (cm)

ShangGuangLiuChang BM-19A Trinocular Biological Microscope Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
