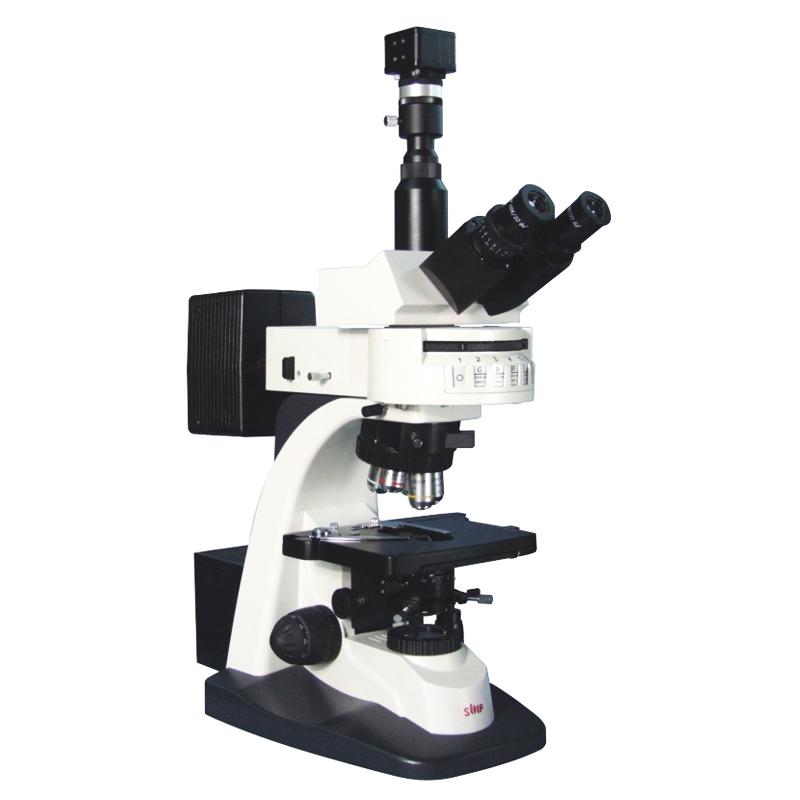

ShangGuang BM-21AWY Sanmu Luo Transmission Fluorescence Microscope
Eyepiece 10X, infinity objective 4X, 10X, 40X100X, 40X-1000X, epifluorescence device (G, B, BV, V, U excitation) electric light source, adjustable Abbe condenser with Kohler illumination
ShangGuangLiuChang
BM-21AWY
Introduction
BM-21AWY fluorescence microscope is composed of biological microscope and epi-fluorescence device, widely used in biology, medicine , immunology, oncology, genetics, material science and other fields. It is equipped with G, B, BV, V, U five band excitation switchable, and can also perform conventional transmission observation at the same time. Its high- quality UISⅡ infinity-corrected optical system and fluorescent mirror box enable you to observe the fluorescent effect, humanized design; convenient operating system; novel appearance will be your good choice.
ShangGuangLiuChang BM-21AWY Sanmu Luo Transmission Fluorescence MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| eyepiece | 1 0X/Medium 22 |
| Infinity fluorescent objective | 4X/0.15、10X/0.35、20X/0.60、 40X/0.75 |
| observation head | Hinged trinocular, 30 ° tilt, 360 ° swirl/spin |
| Objective lens converter | Four or five holes |
| Mechanical barrel length | ∞mm |
| condenser | 1.25N.A. Abbe condenser with variable light bar |
| Color filter diameter | 32mm |
| Focusing range | 15mm, fretting grid value: 0.002mm |
| Double layer mobile workbench | 1 80x 1 60mm |
| Movement range | Vertical 80mm, horizontal 50mm |
| cursor lattice value | 0.1mm |
| light source | Transmission lighting: halogen lamp 12/30W brightness adjustable; epifluorescence lighting: 220V/100W (DC) mercury lamp |
| fluorescence excitation group | G、B、BV、V、U波段 |
ShangGuangLiuChang BM-21AWY Sanmu Luo Transmission Fluorescence Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
