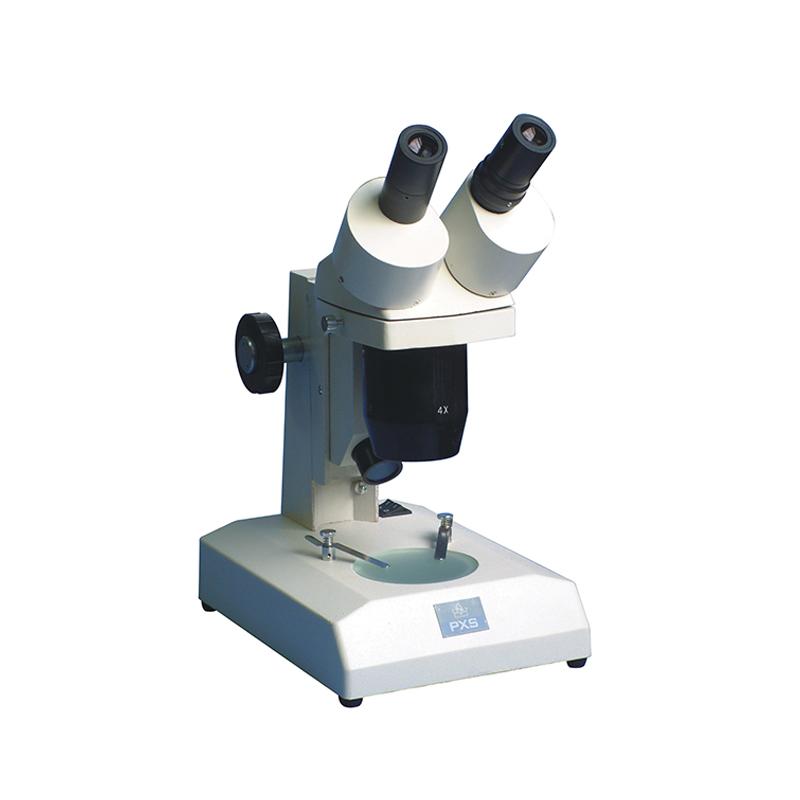

SHANGGUANG PXS Stereo Microscope
SHANGGUANG PXS Stereo Microscope Glass workbench has a diameter of 75mm and a focusing range of 65mm. The imagery is clear and wide, and it has a long working distance. Reflection illumination and transmission illumination can also be selected according to the observation of the sample.
ShangGuangLiuChang
PXS
-
Varnishing BM-PHD Computer Phase Contrast Microscope
$ 2273.00 -
Anyty 3R-MSTV132 Autofocus Digital Microscope 132X
$ 1027.00 -
Anyty 3R-WM461PCTV Digital Microscope 600X
$ 1551.00 -
VARNISING XSP-BM-2CBAP Video Microscope with 9-inch large screen display
$ 695.00 -
TEELEN TL3001 Upright Fluorescence Microscope
Login
Introduction
PXS large field stereo microscope is widely used because it can produce an upright three-dimensional spatial image when observing objects, and the angle between the left and right two sight axes is 12°.Therefore, the three-dimensional sense is strong, the imaging is clear and wide, and there is a long working distance, and the reflected illumination and transmitted illumination can also be selected according to the observation of the sample.
This instrument is reliable, simple to operate, easy to use, and beautiful in appearance. It can not only be used for teaching demonstration, biological anatomy, and observation and analysis by the public security department.It can also be used for the assembly and inspection of precision parts in the electronics industry, and the inspection of seeds in agriculture.
ShangGuangLiuChang PXS Stereo MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| eyepiece | magnification/field of view diameter, 10X/φ 18 can be divided with a grid value of 0.1mm; magnification/objective field of view/working distance, 1X/0019 18mm/88mm, 2x/0019 9mm/88mm, 3X/0019 6mm/78mm, 4X/0019 4.5mm/78mm |
| Glass table size | Φ75mm |
| Focusing range | 65mm |
| Binocular pupil distance adjustment range | 55-75mm |
| Maximum sample height | 45mm |
| lighting system | Transmission and reflection illumination |
| light bulb | 15W |
| Weight | 4.2kg |
| Dimension | 220*160*320mm |
ShangGuangLiuChang PXS Stereo Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
