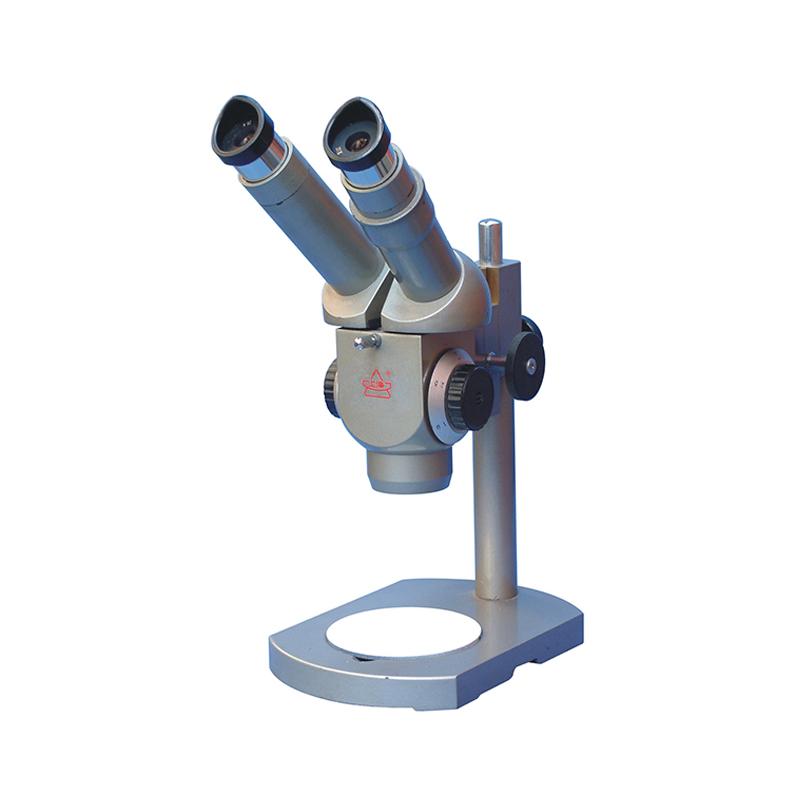

SHANGGUANG XTT Stereo Microscope
SHANGGUANG XTT Stereo Microscope binocular lens barrel 45 ° tilt, pupil distance adjustment range 55-75mm, large objective effective aperture 39 mm, platform diameter 95 mm, can be used for material mass inspection in some industries.
ShangGuangLiuChang
XTT
-
IPRE4XC Metallurgical Microscopy Objective Lens 5X/10X/20X/60X
Login -
ANYTY 3R-MSA600FS Portable Video Microscope for Research/Field Exploration
$ 1143.00 -
Anyty 3R-WM401WIFI Wireless Digital Microscope
$ 483.00 -
TEELEN H-694C Scientific CCD Camera
Login -
TEELEN TL-1530 Transmission reflection Polarizing Microscope
Login
Introduction
A stereo microscope is a type of microscope that has stereoscopic sensation. The main uses are as follows:
1. As a research and dissection tool in zoology, botany, entomology, histology, mineralogy, archaeology, geology, and dermatology.
2. In the textile industry, it is used for the inspection of raw materials and wool fabrics.
3. In the electronics industry, it is used as an assembly tool for transistors and electronic circuit boards.
4. Inspection of surface phenomena such as crack composition, porosity shape, corrosion and other surface phenomena of various materials.
5. It is used as a device for machine tools and tools in the manufacture of small precision parts, the observation of the working process, the inspection of precision parts and the tool for assembly work.
6. Quality inspection of the surface quality and precision of lenses, prisms or other transparent materials.
7. Judgment on the authenticity of documents and banknotes.
ShangGuangLiuChang XTT Stereo MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Eyepiece 6.3X - Total Magnification | 4X；6.3X；10X；16X；25X |
| Eyepiece 6.3X - Field of View Diameter | 44；28；17.5；11；7（mm） |
| Eyepiece 6.3X - working distance | 100mm |
| Eyepiece 25X - Total Magnification | 16X；25X；40X；63X；100X |
| Eyepiece 25X-Field of View Diameter | 12.5；8；5；3；2（mm） |
| Eyepiece 25X - working distance | 100mm |
| observation head | Eyepiece tube 45 ° tilt |
| Pupil distance adjustment range | 55-75mm |
| Large objective effective aperture | 39 mm |
| workbench | Diameter 95 mm |
| Weight | 7kg |
| Packaging Dimensions | 240 × 200 × 400 mm |
| Gross Weight | 8 kg |
ShangGuangLiuChang XTT Stereo Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
