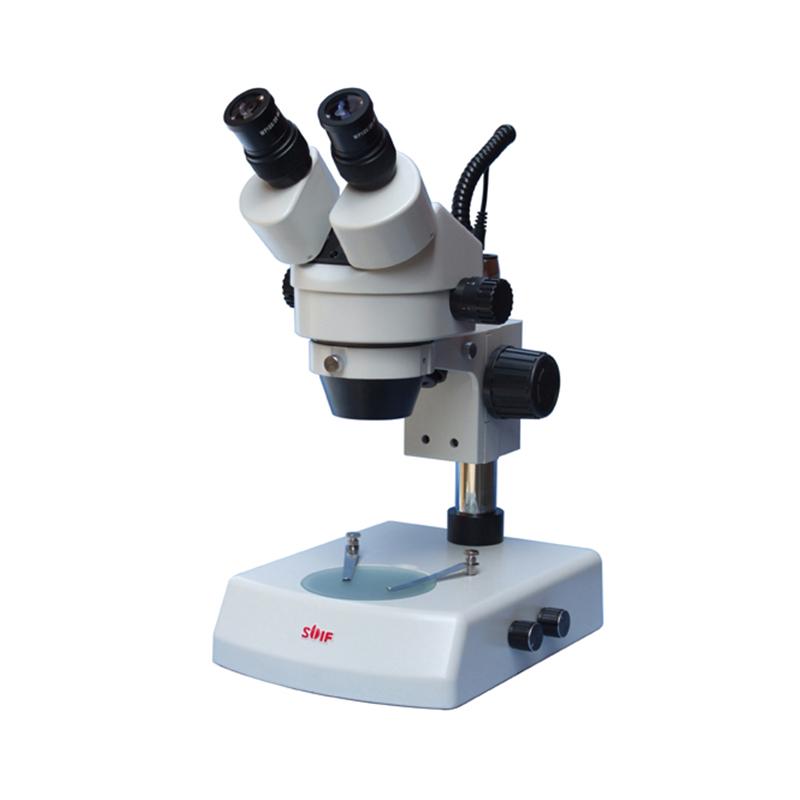

SHANGGUANG XTZ-D Continuous Diploidy Microscope
SHANGGUANG XTZ-D Continuous Ploidy Vision Microscope is widely used in teaching demonstrations, biological anatomy, seed inspection and screening in agriculture and forestry, criminal investigation and testing in public security departments, assembly and maintenance of electronic precision components, quality control in Spinning & weaving industry, auxiliary identification of cultural relics and stamps, and surface observation of various substances.
ShangGuangLiuChang
XTZ-D
-
TEELEN XTL-207A Trinocular Continuous Diploidy Microscope
Login -
Varnishing XSP-BM-1CAP Video Microscope with 7-inch display
$ 447.00 -
Varnishing BM-PHD Computer Phase Contrast Microscope
$ 2256.00 -
ANYTY 3R-PMGM1500A Portable high-power depth Measurement Instrument Optical inspection Trinocular Microscope 1500 times
Login -
TEELEN TL-1503 Polarizing Microscope
Login
Introduction
This binocular continuous zoom stereo microscope XTZ-D has the characteristics of wide field of view, high resolution, strong three-dimensional sense, etc., and can be continuously zoomed. It is widely used in teaching demonstration, biological anatomy, seed inspection and screening of agriculture and forestry, criminal investigation and detection of public security departments, assembly and maintenance of electronic precision components, quality control of the textile industry, auxiliary identification of cultural relics and stamps and surface observation of various substances。
Performance characteristics:
1. The magnification is continuously adjustable
2. The field of view is large, the three-dimensional sense is strong, and the imaging is clear
3. The upper and lower light sources can observe opaque, translucent and transparent objects
Options
| name | Technical parameters |
| Plan eyepiece | WF20X |
| Large objective | 0.5X、0.3X、2X |
| light source | Ring fluorescent light source, ring adjustable LED light source, double cold light source, table lamp |
| Mobile workbench | Movement range X-Y: 70X50mm |
| Ruler | The objective lens micrometer is 1mm and 0.01mm |
| Camera | Electronic eyepiece 350,000, 1.3 million, 2 million, 3.2 million, 5 million (pixels) |
| It has the functions of single, timing, continuous image acquisition, display scale, measurement, etc., and can be connected to multimedia, printing, EMAIL and other output methods. |
ShangGuangLiuChang XTZ-D Continuous Diploidy MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| eyepiece multiple | 10X large field of view flat-field eyepiece, field of view diameter φ 20mm |
| objective multiple | 0.7X-4.5X objective lens Zoom Ratio 1:6.4 |
| Binocular observation head | Pupil distance 55-77mm Visibility adjustment +/- 5 diopters 45 ° tilt 360 ° swirl/spin |
| Field of view | 31.2 mm -5.1mm |
| Total Magnification | 7X~45X |
| working distance | Maximum working distance 100mm |
| Adjustment range | Lifting adjustment range 45mm Pole adjustment range 140mm |
| stage | Comes with tableting and a Should 95mm Glass Plate and a Black and White Work Plate |
| Light source | Transmissive Light source 12v/15w halogen lamp, luminance independently adjustable, base 7w fluorescent lamp |
| Weight | 5.0kg |
| Dimension | 18*30*40cm |
| Packaging Dimensions | 47.5*33*32cm |
| Gross Weight | 6.7kg |
ShangGuangLiuChang XTZ-D Continuous Diploidy Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
