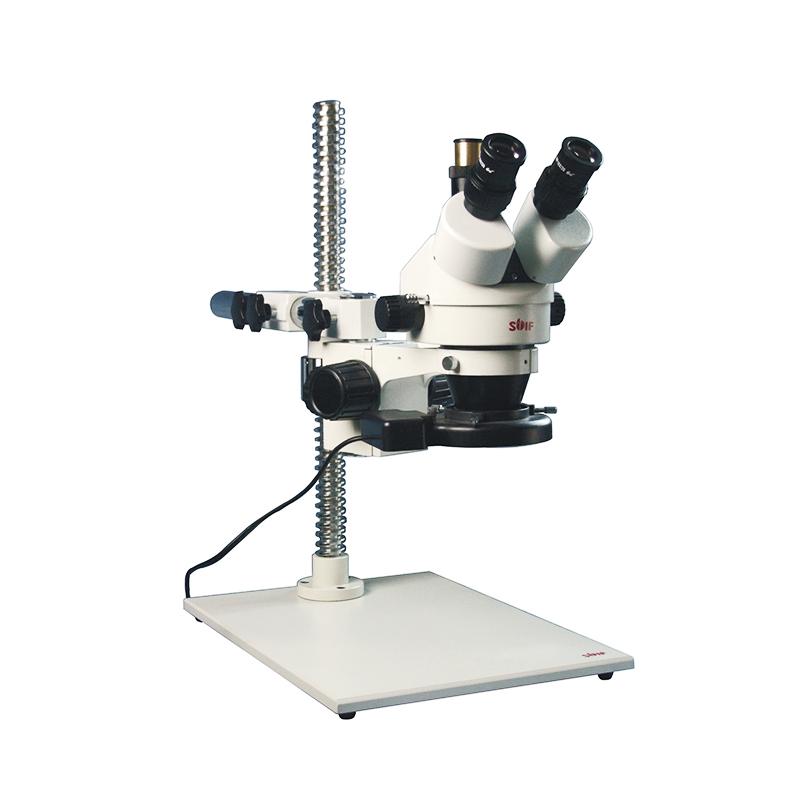

SHANGGUANG XTZ-EL Continuous Diploidy Microscope
SHANGGUANG XTZ-EL Continuous Diploidy Microscope with WF10 eyepiece with large field of view (line field of view is φ 20mm), the observation head can be swirled/spun 360 °, the binocular tube is tilted 45 °, the pupil distance can be adjusted in the range of 55~ 77mm, and the vision adjustment is greater than +/- 5 diopters.
ShangGuangLiuChang
XTZ-EL
Introduction
The XTZ-EL is a scaffold-type large-plate continuous zoom stereo microscope that can observe clear and upright images with high resolution and strong three-dimensional effect. It has a large field of view WF10 eyepiece (line field of view is Φ20mm), the observation head can be rotated 360 °, the binocular tube is tilted 45 °, the interpupillary distance can be adjusted in the range of 55~77mm, the visual adjustment is greater than ±5 diopters, two zoom handwheels are located on both sides of the observation head, which makes the operation very convenient, the outstanding feature of this microscope is the use of threaded vertical rods, and each node of the bracket can be flexibly rotated, so it can be easily lifted up and down and adjusted when observing the sample. This makes it extremely comfortable to observe. This stereo microscope can be widely used in the electronics industry and precision machinery industry for product assembly and inspection. This microscope can also be used for teaching in schools, and is also used in agriculture, forestry, geology, archaeology, biology and other industries.
The XTZ-EL trinocular continuous zoom stereo microscope can be equipped with a photographic device and a camera device.
Technical Specifications:
| objective | eyepiece | Large field of view 10X/Φ20mm | Large field of view 16X/Φ15mm | Large field of view 20X/Φ10mm | Working distance | |||
| Additional objective lenses | Total magnification | Field of view diameter | Total magnification | Field of view diameter | Total magnification | Field of view diameter | ||
| Zoom range: 0.7X-4.5X, zoom ratio: 1:6.5 | 7X-45X | 2B.6-4.4mm | 10.5X-67.5X | 21.4-3.3mm | 14X-90X | 14.3-2.2mm | 100mm | |
| 0.5X | 3.5X-22.5X | 57.1-9.8mm | 5.25X-33.75X | 42.8-28.6mm | 7X-45X | 28.6-4. 4mm | 165mm | |
| 1.5X | 10.5X-67.5X | 19-3mm | 15.75X-101.25X | 14.3-2.2mm | 21X-135X | 9.5-1.5mm | 45mm | |
| 2X | 14X-90X | 14.3-2.2mm | 21X-135X | 10.7-7.1mm | 28X- 180X | 7.1-1.1mm | 30mm | |
ShangGuangLiuChang XTZ-EL Continuous Diploidy MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Objective lens Magnification Range | 0.7X-4.5X |
| Objective lens Zoom Ratio | 1：6.5 |
| eyepiece | Large field of view 10X/Should 20mm; 16X/Should 15mm; 20X/Should 10mm |
| Eyepiece 10X/φ 20mm-Total magnification | 7X-45X；3.5X-22.5X；10.5X-67.5X；14X-90X |
| Eyepiece 10X/φ 20mm-Field of View Diameter | 28.6-4.4mm；57.1-9.8mm；19-3mm；14.3-2.2mm |
| Eyepiece 16X/φ 15mm-Total magnification | 10.5X-67.5X；5.25X-33.75X；15.75X-101.25X；21X-135X |
| Eyepiece 16X/φ 15mm-Field of View Diameter | 21.4-3.3mm；42.8-28.6mm；14.3-2.2mm；10.7-7.1mm |
| Eyepiece 20X/φ 10mm-Total magnification | 14X-90X；7X-45X；21X-135X；28X- 180X |
| Eyepiece 20X/φ 10mm-Field of View Diameter | 14.3-2.2mm；28.6-4.4mm；9.5-1.5mm，7.1-1.1mm |
| working distance | 100mm；165mm；45mm；30mm |
| workbench | 290x390mm |
| Specimen height | Up to about 200mm |
ShangGuangLiuChang XTZ-EL Continuous Diploidy Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
