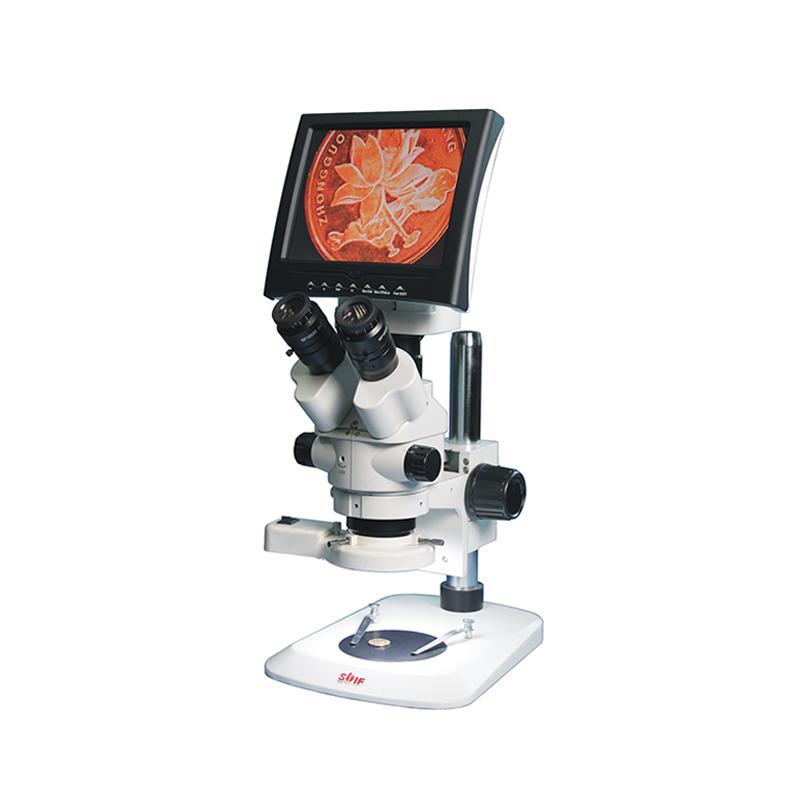

SHANGGUANG XTZ-TV Continuous Diploidy Microscope
SHANGGUANG XTZ-TV Continuous Diploidy Microscope is a kind of continuous diploidy microscope that can be used to observe fine objects with binocular eyes and amplify them. It has high resolution, high definition and strong three-dimensional sense, and has a long working distance, wide field of view, and good imagery mass.
ShangGuangLiuChang
XTZ-TV
-
TEELEN TL3201 Fluorescence Microscope
Login -
Anyty 3R-WM461WIFI Digital Microscope 10~600 times
$ 996.00 -
TEELEN H-694CICE Scientific-grade CCD camera with cooling function
Login -
IPRE4XC Metallurgical Microscopy Objective Lens 5X/10X/20X/60X
Login -
Varnishing BM-PHD Computer Phase Contrast Microscope
$ 2256.00
Introduction
The XTZ-TV type is a continuous zoom stereo microscope that can observe and magnify small objects with binocular eyes, and can observe the image of the object on the monitor without affecting visual observation, with high resolution, high definition, and strong three-dimensional sense, as well as a long working distance, a wide field of view, and good imaging quality. This instrument has reliable performance, easy operation and beautiful appearance, through simple operation can obtain the fixed magnification or 0.7X~4.5X continuous zoom image, TXZ-TV has a wide range of application fields and scope, not only for teaching demonstration, biological anatomy, public security department observation and analysis, but also in the electronics industry, precision parts assembly and calibration, agricultural inspection has been widely used.
Technical Specifications:
| objective | eyepiece | Large field of view 10X/Φ20mm | Large field of view 15X/Φ17mm | Large field of view 20X/Φ12mm | Working distance | |||
| Additional objective lenses | Total magnification | Field of view diameter | Total magnification | Field of view diameter | Total magnification | Field of view diameter | ||
| Zoom range: 0.7X-4.5X, zoom ratio: 1:6.3 | 7X-45X | 28-4.5mm | 10.5X-67.5X | 24-3.2mm | 14X-90X | 14-2.3mm | 110mm | |
| 0.5X | 3.5X-22.5X | 56-9mm | 5.25X-33.8X | 48-5.4mm | 7X-45X | 28-4.5mm | 170mm | |
| 2X | 14X-90X | 14-2.3mm | 21X-135X | 12-1.6mm | 28X-180X | 7-1.2mm | 40mm | |
ShangGuangLiuChang XTZ-TV Continuous Diploidy MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Objective lens Magnification Range | 0.7X-4.5X |
| Objective lens Zoom Ratio | 1：6.3 |
| Additional objective | 0.5X；2X |
| eyepiece | Large field of view 10X/Should 20mm; 15X/Should 17mm; 20X/Should 12mm |
| Eyepiece 10X/φ 20mm-Total magnification | 7X-45X；3.5X-22.5X；14X-90X |
| Eyepiece 10X/φ 20mm-Field of View Diameter | 28-4.5mm；56-9mm；14-2.3mm |
| Eyepiece 15X/φ 17mm-Total magnification | 10.5X-67.5X；5.25X-33.8X；21X-135X |
| Eyepiece 15X/φ 17mm-Field of View Diameter | 24-3.2mm；48-5.4mm；12-1.6mm |
| Eyepiece 20X/φ 12mm-Total magnification | 14X-90X；7X-45X；28X-180X |
| Eyepiece 20X/φ 12mm-Field of View Diameter | 14-2.3mm；28-4.5mm；7-1.2mm |
| working distance | 110mm，170mm，40mm |
| workbench | Diameter 100mm |
| Focusing range | About 52mm |
| Maximum sample height | Approx. 120mm |
| Pupil distance adjustment range | 48~78mm |
| observation head | Double eyepiece tube tilt 45 ° angle, 360 ° swirl/spin |
| upper lighting | Ring fluorescent lamp 220V/8W |
| Display | 160×120mm |
| Display magnification | About 8X |
ShangGuangLiuChang XTZ-TV Continuous Diploidy Microscope Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
