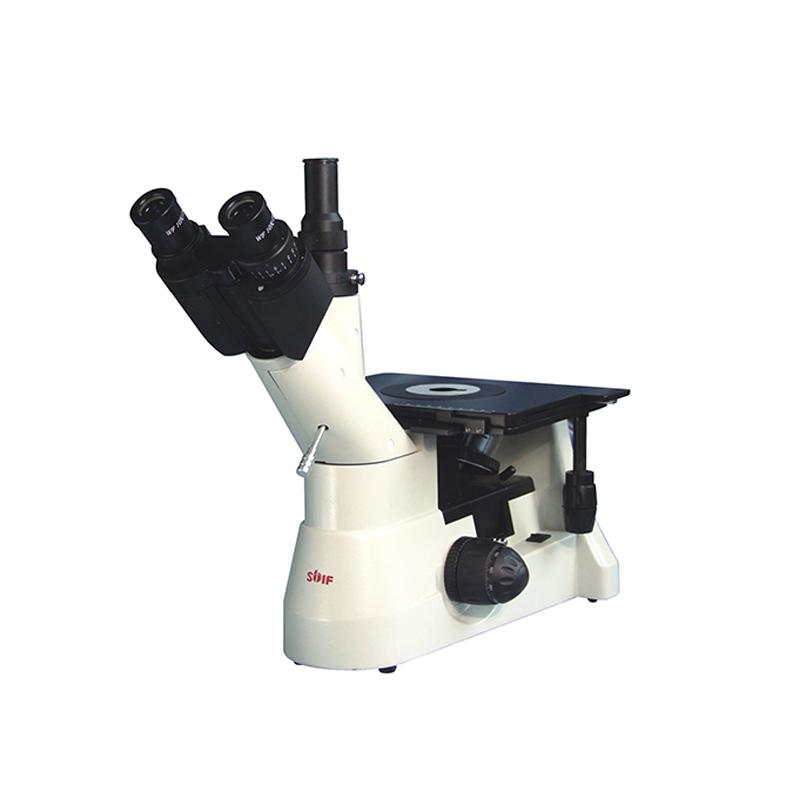

SHANGGUANG 4XC Trinocular Inverted Metallurgical Microscopy
SHANGGUANG 4XC trinocular inverted Metallurgical Microscopy is mainly used to identify and analyze the internal structure of metals, or to observe certain characteristics of material surfaces. It is widely used in factories, laboratories, teaching and scientific fields, with a Total Magnification of 100X-1250X.
ShangGuangLiuChang
4XC
-
VARNISING XSP-BM-2CBAD Microscope Optical inspection Magnification 40X-1600X
$ 689.00 -
Anyty 3R-WM461WIFI Digital Microscope 10~600 times
$ 996.00 -
Varnishing XSP-BM-2CBA Microscope Optical inspection Magnification 40X-1600X
$ 480.00 -
TEELEN PXS-2040 Binocular Stereo Microscope
Login -
Varnishing BM-59XC Trinocular Polarizing Microscope Trinocular Microscope
$ 1944.00
Introduction
This trinocular inverted metallurgical microscope 4XC (4XB-C) has clear imaging, flexible operation and excellent cost performance. It is mainly used to identify and analyze the internal structure of metal, or to observe some characteristics of the material surface, such as: scratches, cracks, uniformity of spraying, etc. It is widely used in factories, laboratories and in teaching and science. Total magnification: 100X-1250X
Functions & Features
1. The old "glazing" traditional model has stable quality and clear imaging.
2. Planetary coaxial coarse and micro dynamic focusing device is adopted, and the focusing is comfortable and stable.
3. Flat field objective lens and flat field eyepiece are used, with a flat field of view and high definition.
4. Two optical path outputs, one for observation and one for connecting the camera device.
5. Adopt a double-layer mechanical stage with a scale and an epi-illumination device, with a variable light bar, and the brightness is uniform and adjustable.
Options
| Camera | (1) Japanese JVC camera + image capture card |
| It has the functions of single, timed, continuous image acquisition, multimedia connection, printout and so on | |
| (2) Digital cameras with 1.3 million, 2 million, 3.2 million and 5 million pixels | |
| It has the functions of single, timed, continuous image acquisition, display scale, measurement, etc., and can be connected to multimedia, printing, EMAIL and other ways of output. | |
| (3) Digital camera + basic measurement management software | |
| The 15-million-pixel Canon SLR camera has the functions of real-time image acquisition, image fusion, display scale, measurement, etc., and can be connected to multimedia, printing, email and other ways of output | |
| Image analysis software | (1) Professional quantitative metallographic analysis software UV-MA |
| It contains more than 400 automatic grading items that fully comply with GB, YB, JB, ASTM and other standards, and has a variety of functions such as automatic rating, spectrum comparison, calibration measurement, fixed magnification printing, spectrum viewing, output report and image fusion. | |
| (2) Mineral phase analysis software UV-K | |
| Quantitative analysis of the mineral phase is carried out by optimizing the colorization processing and measurement of the microscopic image. It can be collected in a single sheet and continuously; Rulers can be displayed; It can measure the length, angle, radius, circumference, area and other aspects of the microscopic image; It can be connected to multimedia, printing, email and other ways to output. | |
| (3) Metallographic analysis software UV-ME | |
| The interface is clear, the operation is simple, the basic functions are complete, the price is reasonable, and at the same time, it can be installed free of charge for ten metallographic analysis projects that meet the national GB and industry JB/YB standards according to the needs of users. It can be collected in a single sheet and continuously; Rulers can be displayed; It can measure the length, angle, radius, circumference, area and other aspects of the microscopic image; It can be connected to multimedia, printing, email and other ways to output. | |
| (4) Basic measurement management software UV | |
| It can be collected singlely, timed, and continuously; It can display rulers and magnifications; It can measure the length, angle, radius, circumference, area and other aspects of the microscopic image; It can be connected to multimedia, printing, email and other ways to output. | |
| Camera interface | Camera interface: 1X, 0.5X |
| Digital camera interface: 1X, 2.5X/4X | |
| objective | Plan achromatic objectives: 4X, 60X, 80X |
| Ruler | The objective micrometer is 0.01mm |
| Eyepiece micrometer: 0.1 ruler, 0.05 ruler, 0.5 grid, 0.2 grid, 0.1 coordinate |
ShangGuangLiuChang 4XC Trinocular Inverted Metallurgical MicroscopySpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X/Φ18、WF12.5X/Φ15 |
| Segmented eyepiece | WF10X/φ 18, 0.1mm scale cross reticle, adjustable focus |
| Flat field color difference objective | 10X/0.25, 20X/0.45, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total Magnification | 100X~1250X |
| trinocular observation head | Hinged 30 ° tilt |
| converter | four holes |
| Coarse fine-tuning focusing range | 25Mm fretting grid value: 2um coarse fretting coaxial focusing |
| stage | Double-decked mechanical, size 180x150mm |
| Stage movement range | Moving range 15X15mm φ 10/20mm, one piece each, vernier grid value 0.1mm |
| pupil distance | 55-75mm |
| Mechanical barrel length | 160mm |
| lighting system | Adjustable luminance, with variable light bar, halogen tungsten bulb 6V20W |
| Weight | 8.5kg |
| Dimension | Instrument size 20 * 56 * 35cm Packaging Dimensions 29 * 43 * 59cm |
| Gross Weight | 10.0kg |
ShangGuangLiuChang 4XC Trinocular Inverted Metallurgical Microscopy Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
